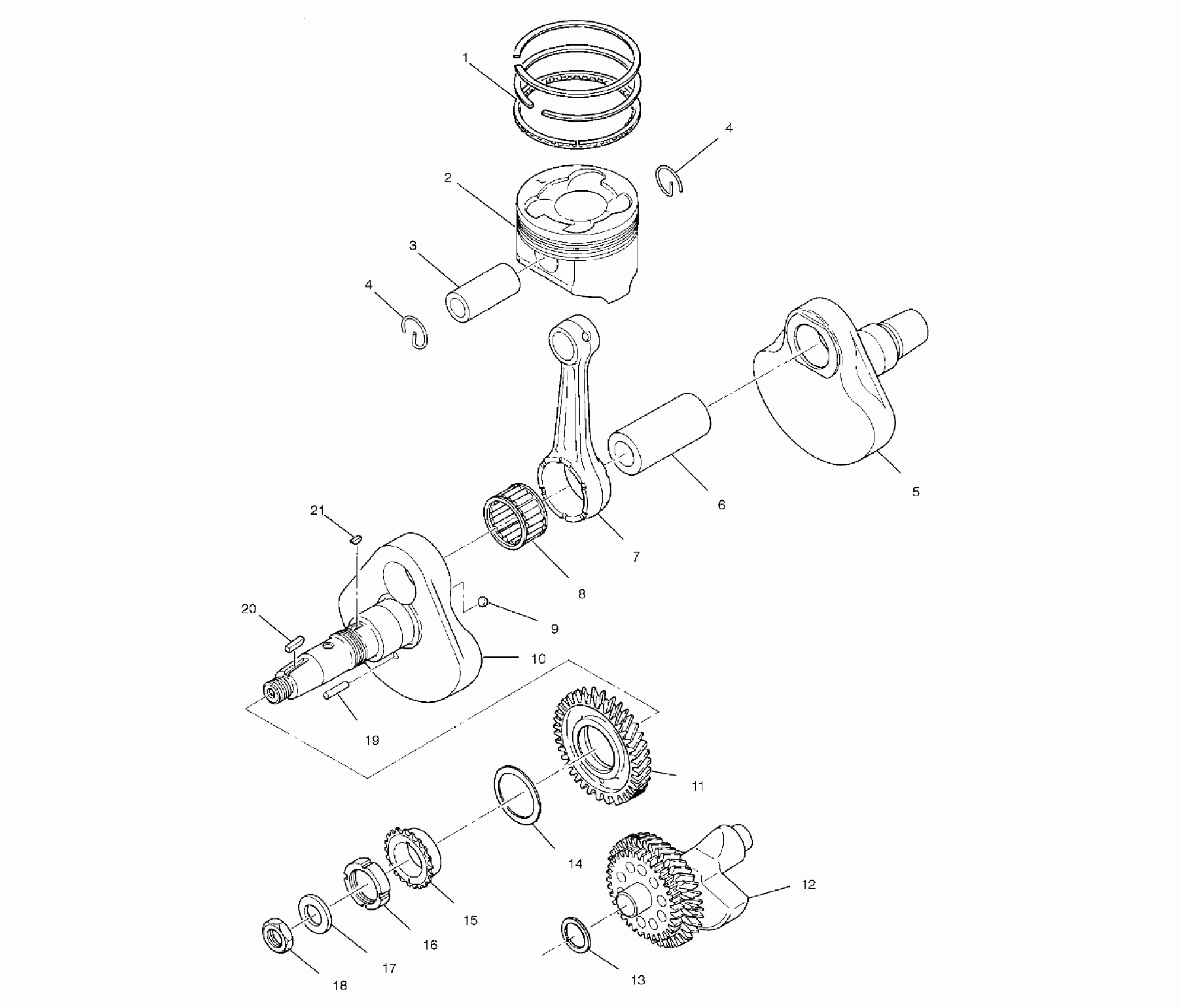

Polaris MAGNUM 500 2X4 HDS - A02CB50FC CRANKSHAFT and PISTON - A02CB50FC (4974857485C14) Diagram

#

Description
Price

1

Piston Ring Set [Std]

3085379

Unavailable

1

Piston Ring Set [0.25 O/S]

3085380

Unavailable

1

Piston Ring Set [0.50 O/S]

3085381

Unavailable

2

Piston Set [Std] [Incl. 2-4]

3087170

Unavailable

2

Piston Set [0.25 O/S] [Incl. 2-4]

3087171

Unavailable

2

Piston Set [0.50 O/S] [Incl. 2-4]

3087172

Unavailable

3

PIN, PISTON

-------

Unavailable

4

CLIP

3085534

Unavailable

4

CLIP

3085534

Unavailable

5

Crankshaft 2

3085374

$338.29

6

Pin, Crank

3085341

Unavailable

7

Rod, Connecting

3085376

$175.99

8

Bearing, Large End

3085400

$78.56

9

BALL, STEEL

3085024

$5.59

10

Crankshaft 1

3085373

$342.99

10

Asm., Crankshaft [Incl. 5-11,19]

3085399

Unavailable

11

Gear 1, Balancer

3085852

Unavailable

12

Shaft, Balancer

3085404

Unavailable

13

Spacer [1.2]

3084897

$6.39

13

Spacer [0.8]

3084895

$6.39

13

Spacer [1.0]

3084896

$6.39

14

Spacer [1.2]

3084894

$19.99

14

Spacer [0.6]

3240088

$10.39

14

Spacer [1.0]

3084893

$19.99

14

Spacer [0.8]

3084892

$12.79

15

SPROCKET 1

3084882

Unavailable

16

NUT, SLIT

3085528

$35.99

17

Washer

3083904

Unavailable

18

NUT, LOCK

3083905

Unavailable

19

Pin, Dowel

3085346

Unavailable

20

KEY

3081447

Unavailable

21

Key, Woodruff

3080130

Unavailable
