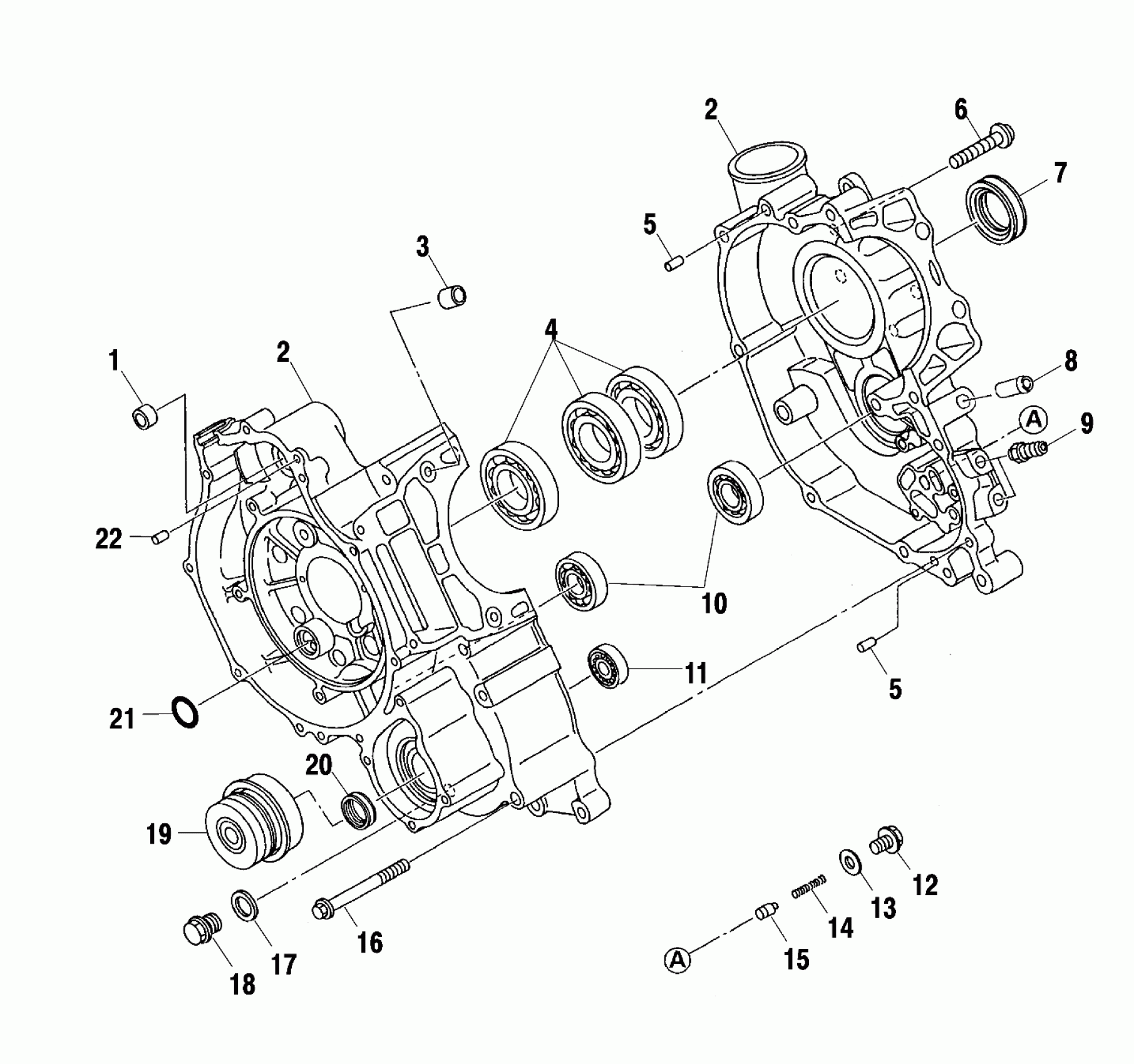

Polaris MAGNUM 500 2X4 HDS - A02CB50FC CRANKCASE - A02CB50FC (4974857485D05) Diagram

#

Description
Price

1

BUSHING, STARTER

3083669

Unavailable

2

Asm., Crankcase [Incl. 1,4,5,7,8,10,11,16,19,20,22]

3085633

$591.27

2

Asm., Crankcase [Incl. 1,4,5,7,8,10,11,16,19,20,22]

3085633

$591.27

3

Pin, Straight

3084838

Unavailable

4

BEARING, BALL

3080676

Unavailable

5

Pin, Dowel

3084840

$6.46

5

Pin, Dowel

3084840

$6.46

6

Screw and Washer

3084205

$3.97

7

SEAL, OIL

3084839

$28.32

8

PIPE, AIR BREATHER

3085525

Unavailable

9

Union

3084842

$32.37

10

BEARING, BALL

3084834

Unavailable

11

BEARING, BALL

3084835

$31.75

12

PLUG

3084845

Unavailable

13

GASKET, ALUMINUM

3084846

$5.65

14

Spring, Valve, One Way

3084844

$4.84

15

VALVE, ONE WAY

3086810

Unavailable

16

BOLT, FLANGE

3084841

$3.17

17

GASKET

3082956

$4.84

18

PLUG

3083453

Unavailable

19

SEAL, MECHANICAL

3084837

$68.79

20

SEAL, OIL

3084836

Unavailable

21

O-RING

3084847

$6.46

22

Pin, Dowel

3080103

$7.14
