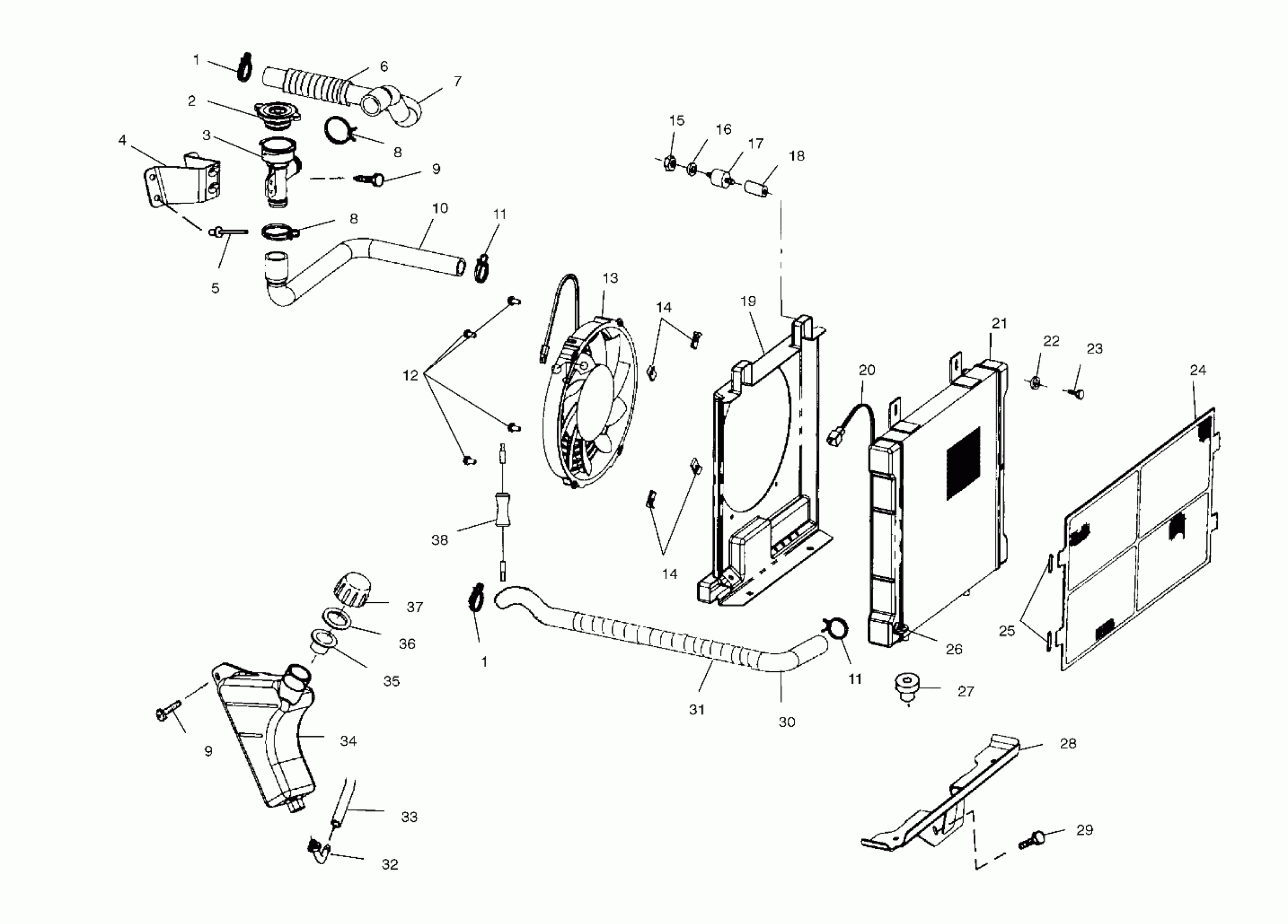

Polaris MAGNUM 500 2X4 HDS - A02CB50FC COOLING SYSTEM - A02CB50FC (4974857485A09) Diagram

#

Description
Price

1

CLAMP, HOSE

7080696

$5.56

1

CLAMP, HOSE

7080696

$5.56

2

Cap, Pressure

1240044

$48.56

3

Filler, Coolant

5433364

$48.40

4

Bracket, Filler, Coolant

5243505-067

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.19

6

Flexguard

5433948

Unavailable

7

Hose, Engine, Upper

5411794

Unavailable

8

Clamp, 1 Inch

7080827

Unavailable

8

Clamp, 1 Inch

7080827

Unavailable

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

10

Hose, Neck, Filler

5411632

Unavailable

11

Clamp

7080826

$4.76

11

Clamp

7080826

$4.76

12

Screw

7517659

$3.97

13

Asm., Fan and Motor

2410123

$214.69

14

U-Clip

7670111

Unavailable

14

U-Clip

7670111

Unavailable

15

Nutsert

7547069

$3.97

16

Washer, Flat

7558301

$1.19

17

Mount, Rubber

3110032

Unavailable

18

Spacer

5132648

$7.94

19

Shroud, Fan

5433059

Unavailable

20

Sensor, Thermal

4010161

$128.24

21

Radiator

1240045

Unavailable

22

Washer, Split Lock

7552605

$5.69

23

Screw

7512113

$3.97

24

Cover, Radiator

5433317

$35.08

25

O-Ring

5410607

Unavailable

26

Valve, Drain

7052296

Unavailable

26

O-Ring

5411633

Unavailable

27

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

28

Bracket, Radiator, Lower

5244687-067

Unavailable

29

SCREW

7517386

$1.19

30

Hose, Engine, Lower

5411694

Unavailable

31

Guard, Hose

5521511

$7.38

32

Fitting, Barbed, 90 Degree

7052065

$7.14

33

Line, Fuel

8450003-1525

$89.99

34

Tank, Surge

5433410

Unavailable

35

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

36

GASKET-OVERFLOW CAP

5810279

$2.41

37

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

38

Breaker, Circuit

4010369

$72.84
