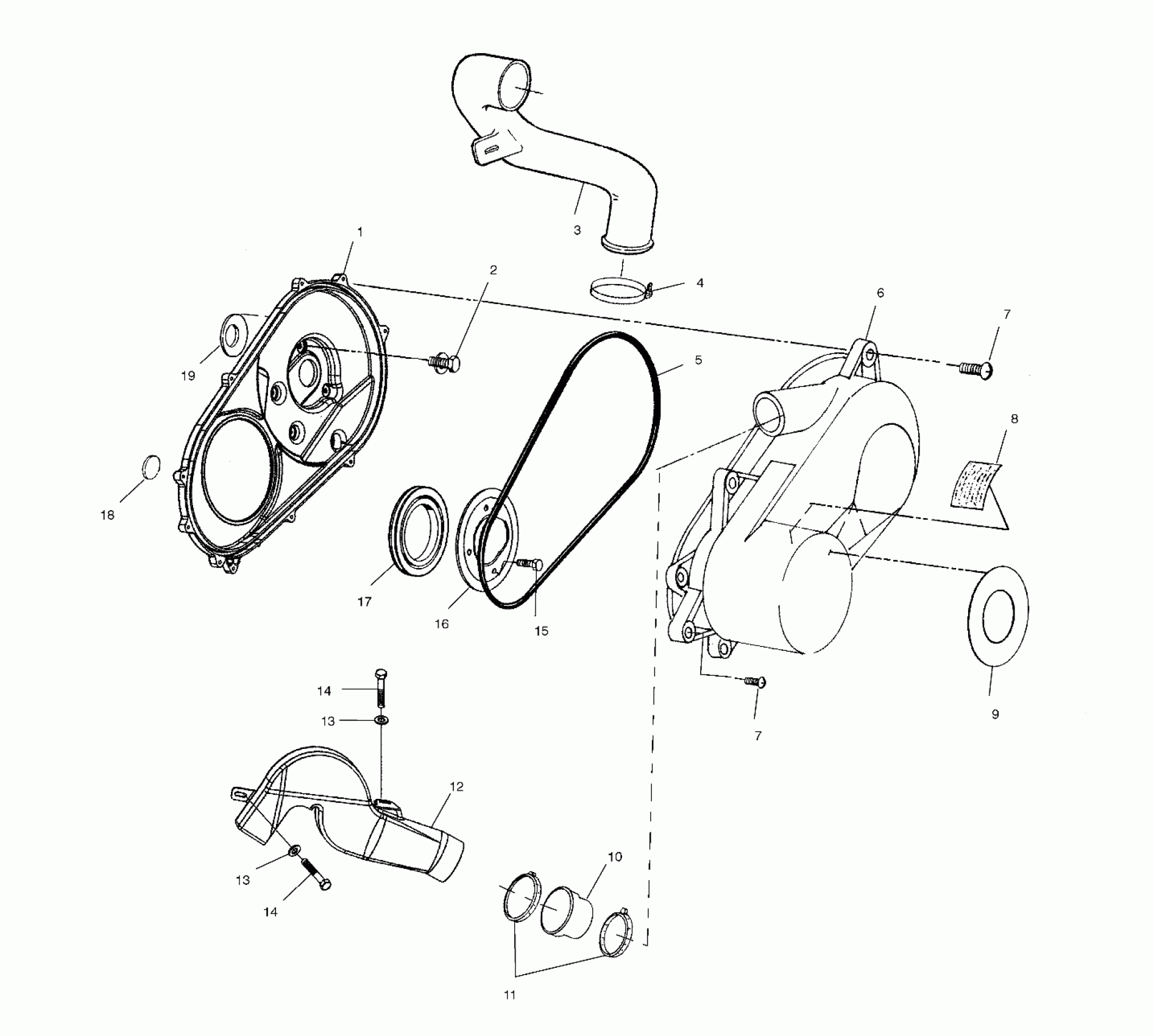

Polaris MAGNUM 500 2X4 HDS - A02CB50FC CLUTCH COVER - A02CB50FC (4974857485B14) Diagram

#

Description
Price

1

Kit, Clutch Cover, Inner

2201956

Unavailable

2

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

3

Duct, Inlet, Down Tube

5432698

Unavailable

4

Clamp, Narrow Band

7080511

$4.79

5

Seal, Clutch Cover, Outer

5521578

Unavailable

6

Cover, Clutch, Outer

5433451-070

$178.08

7

SCREW

7512094

$1.59

7

SCREW

7512094

$1.59

8

Decal, Warning, Clutch Cover

7078689

Unavailable

9

Decal, "Automatic/EBS", Clutch

7077666

Unavailable

10

Boot, Duct

5411489

Unavailable

11

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

12

Duct, Air Outlet

5434213

Unavailable

13

Washer, Flat

7558301

$1.49

13

Washer, Flat

7558301

$1.49

14

SCREW

7517386

$1.49

14

SCREW

7517386

$1.49

15

SCREW AND WASHER [See Crankcase Pg. D5, Ref. 6]

-------

Unavailable

16

Bracket, Clutch Seal

5242046-067

$34.74

17

Seal, Cover Case

5410575

Unavailable

18

Stopper, Inner Clutch Cover

5411795

Unavailable

19

Seal, Clutch Cover

5411901

Unavailable
