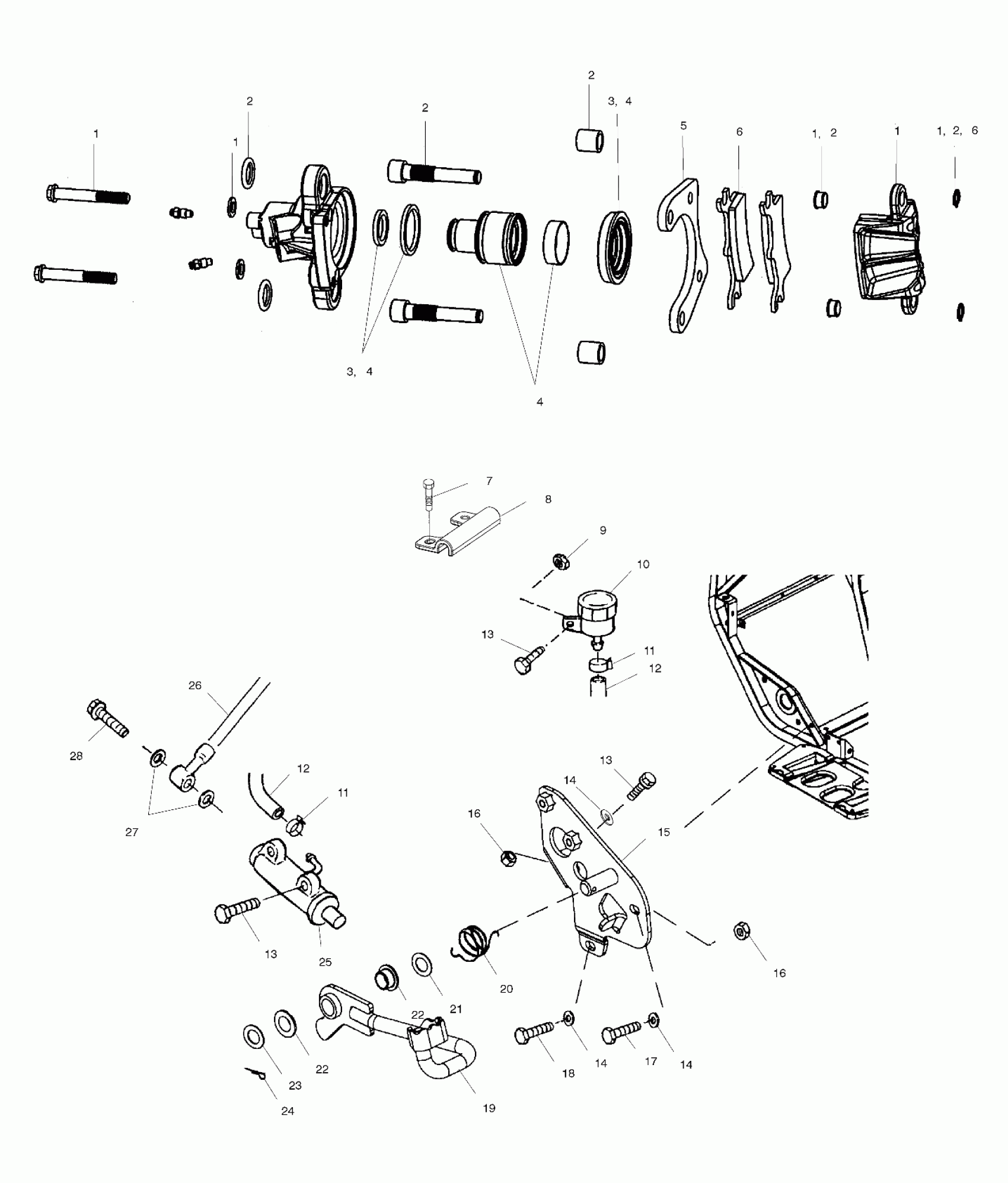

Polaris MAGNUM 500 2X4 HDS - A02CB50FC BRAKE (REAR) - A02CB50FC (4974857485C03) Diagram

#

Description
Price

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

3

Kit -Seal

2201872

$63.99

3

Kit -Seal

2201872

$63.99

4

Kit, Piston and Seal

2201869

$119.99

4

Kit, Piston and Seal

2201869

$119.99

4

Kit, Piston and Seal

2201869

$119.99

5

Asm., Brake Caliper [Incl. Spacer and Pin]

1910425

Unavailable

6

Kit, Brake Pad

2201871

$27.99

6

Kit, Brake Pad

2201871

$27.99

7

Screw

7512084

$1.49

8

Clamp, Brake Line

5434041

Unavailable

9

NUT, FLANGED

7542153

$1.59

10

Reservoir, Brake, Rear

1930854

$35.99

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

Hose, Reservoir

1910331

$4.95

12

Hose, Reservoir

1910331

$4.95

13

Screw

7515158

$4.79

13

Screw

7515158

$4.79

13

Screw

7515158

$4.79

14

Washer, Flat

7558301

$1.49

14

Washer, Flat

7558301

$1.49

14

Washer, Flat

7558301

$1.49

15

Pivot, Mount, Brake, Rear

1012753-067

Unavailable

16

Nut, Nylok

7542122

$1.49

16

Nut, Nylok

7542122

$1.49

17

BOLT

7512240

$3.99

18

SCREW

7517386

$1.49

19

Rod, Brake

1012752-067

Unavailable

20

SPRING-TORSION,BRAKE

7041750

$8.79

21

WASHER

7555919

$4.99

22

BUSHING, PEDAL PIVOT

5433189

$3.99

22

BUSHING, PEDAL PIVOT

5433189

$3.99

23

Washer, Spring

7556090

$2.63

24

PIN, COTTER

7661401

$1.49

25

Master Cylinder, Foot

1910311

$166.01

26

Line, Foot Brake, Rear, Master Cyl.

1910516

Unavailable

27

Seal

5410988

$4.84

28

BOLT, BANJO

1910499

$5.59
