STEERING - HANDLEBAR - S98AC42E (4945214521B007)

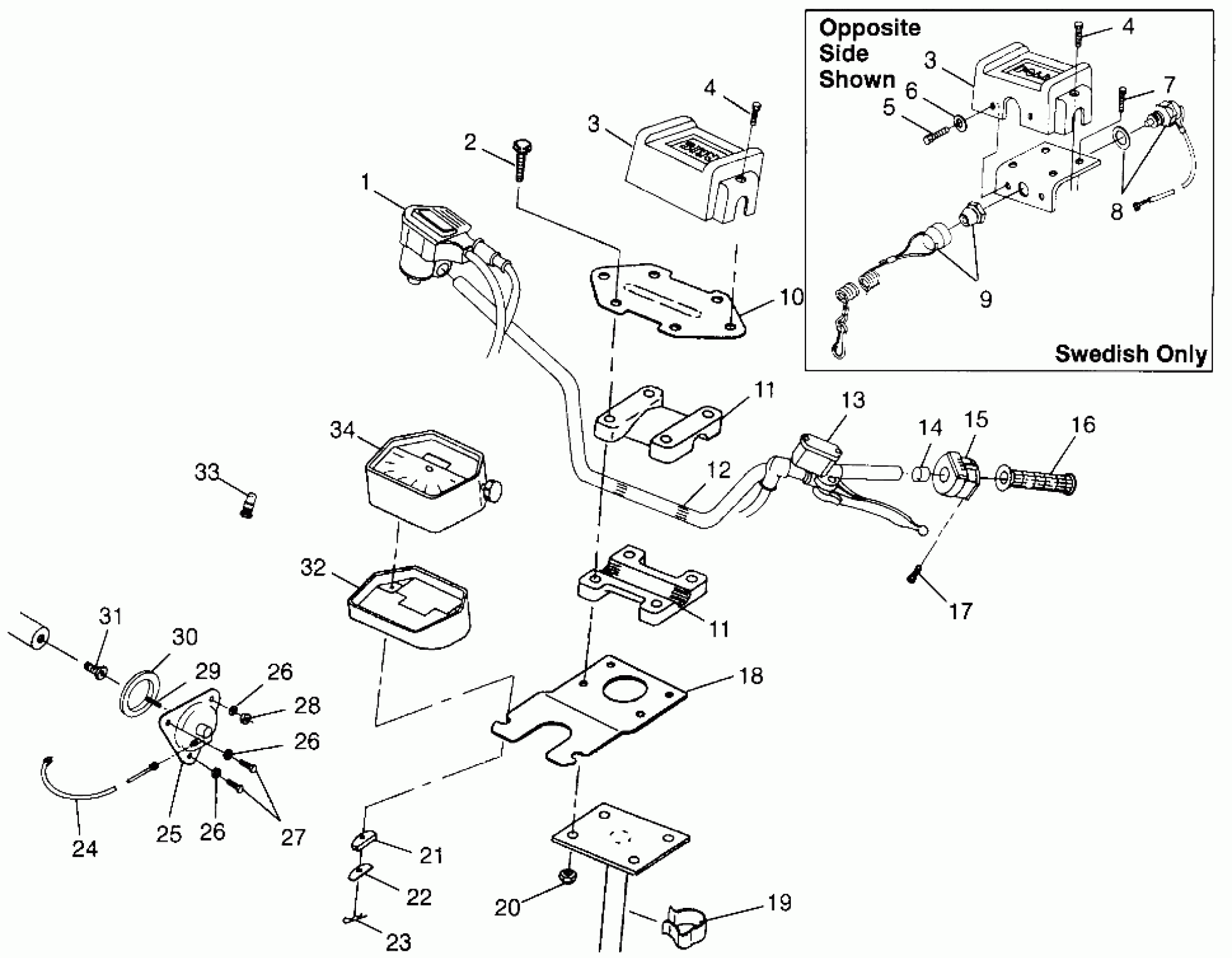

Polaris MAGNUM 4X4 - W98AC42A STEERING - HANDLEBAR - S98AC42E (4945214521B007) Diagram
#
1
Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm./Cable Pg. B9, Ref. 5)
-------
Unavailable
2
SCREW(10)
7515188
$2.39
3
PAD, HANDLEBAR (US)(NOR)
5810379
$40.46
3
PAD,H'BAR,SCAN (SWED)
5811366
$40.46
3
PAD, HANDLEBAR (US)(NOR)
5810379
$40.46
3
PAD,H'BAR,SCAN (SWED)
5811366
$40.46
4
SCREW(10)
7515197
$1.49
4
SCREW(10)
7515197
$1.49
5
SCR-#8X.625,SELF TAP-PH/PN-ZTB (SWED)
7511881
$1.49
6
WASHER(10) (SWED)
7555783
$3.99
7
SCREW Substituted by 7517216 (SWED)
7517225
Unavailable
8
SW,TETHER,(SWED.MAG) (SWED)
4110249
Unavailable
9
BRKT,TETH.SWITCH,BLK (SWED)
5241774-067
$5.75
10
MOUNT,HDLBR. PAD Substituted by 5245051
5220946
$5.71
11
KIT,H'BAR BLOCK (Incl. 2,11,20)
2200774
Unavailable
11
BLOCK,H'BAR RETAINER,BLK
5630616-067
Unavailable
11
KIT,H'BAR BLOCK (Incl. 2,11,20)
2200774
Unavailable
11
BLOCK,H'BAR RETAINER,BLK
5630616-067
Unavailable
12
TUBE,HDLBR,BLACK Substituted by 5242988-067
5224316-067
Unavailable
13
Asm., Master Cylinder (See Footnote) (See Controls M. C./Brake Line Pg. B10 for Details)
-------
Unavailable
14
SPACER-PLASTIC (.88)
5433198
Unavailable
15
SWITCH,LH,H'BAR,H/L/O
4110205
Unavailable
16
GRIP, HANDLEBAR
5431030
$24.27
17
SCREW
2010055
Unavailable
18
BRACKET,SPEEDO
5222269-067
$15.67
19
CLIP(10)
7080278
$2.63
20
NUT-LOCK(10)
7542122
$1.49
21
SPACER,SPEEDO.MTG.
5810442
$10.99
22
PLATE,MTG,(SPEEDO)
5211189
$12.99
23
HAIRPIN, COTTER(10)
7660701
$1.99
24
CABLE,SPEEDO.
3280216
Unavailable
25
ADAPTER,DRIVE,(1:1.34)
3280220
Unavailable
25
ADAPTER,DRIVE,(1:1.55) (NOR)
3280221
Unavailable
26
WASHER(10)
7555725
Unavailable
26
WASHER(10)
7555725
Unavailable
26
WASHER(10)
7555725
Unavailable
27
BOLT(10)
7515378
$1.98
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
KEY,SPEEDO.DRIVE
3280217
Unavailable
30
SEAL,ANGLE DRIVE
3280164
Unavailable
31
BUSHING,SPEEDO.DRIVE
5020741
$9.03
32
MOUNT, SPEEDOMETER
5410546
Unavailable
33
BULB TAILLIGHT(10)
4030015
$4.03
34
SPEEDOMETER, ATV (US)
3280129
Unavailable
34
SPEEDO.(KPH),SCAND.ATV (SWED)(NOR)
3280135
$131.99
