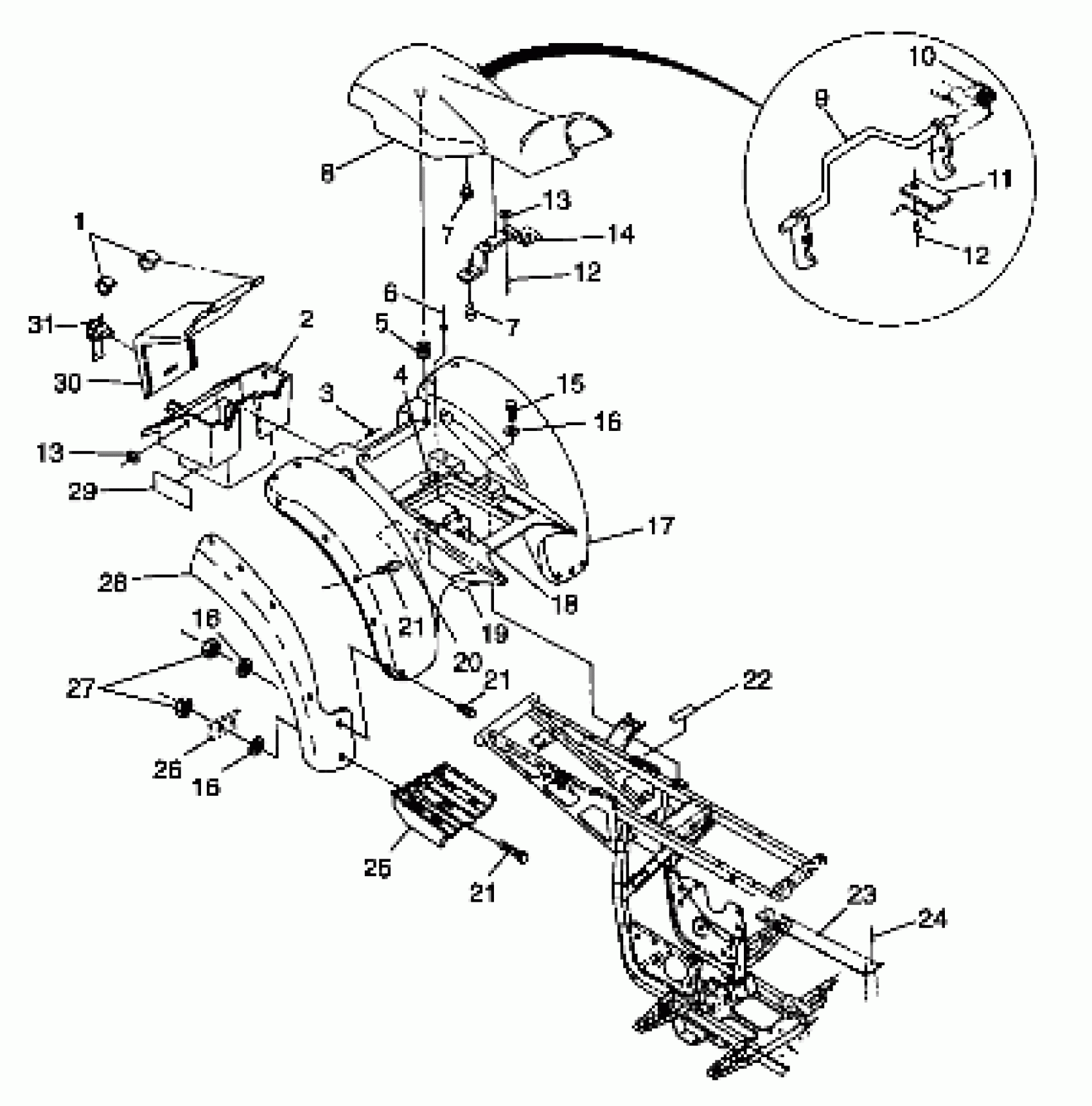

Polaris MAGNUM 4X4 - W98AC42A REAR CAB - S98AC42E (4945214521A006) Diagram

#

Description
Price

1

CLIP, LID HINGE(10)

7670050

Unavailable

2

BOX,TOOL COMP.

5430882

Unavailable

3

RIVET(50)

7621462

$1.19

4

DECAL,CARB.INFO.

7073761

Unavailable

5

Grommet

5411042

$6.35

6

RIVET,3/16X.402(50)

7621432

$1.19

7

Bumper, Rubber

5410414

$3.17

7

Bumper, Rubber

5410414

$3.17

8

COVER,SEAT,STL.GRY. Substituted by 2681730-132 (Steel Gray)

2681723-132

Unavailable

8

SEAT ASM,STL.GRAY (Steel Gray)

2682357-132

Unavailable

9

LATCH,SEAT

1011558

Unavailable

10

SPRING, LATCH

7041158

Unavailable

11

BRACKET,LEVER RETAINER

5211033

$34.99

12

BLIND RIVET(50)

7621403

$1.19

12

BLIND RIVET(50)

7621403

$1.19

13

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

13

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

14

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

15

BOLT(10)

7512232

$1.19

16

WASHER, FLAT(10)

7555859

$1.19

16

WASHER, FLAT(10)

7555859

$1.19

16

WASHER, FLAT(10)

7555859

$1.19

17

CAB,REAR,MOD,EB.GRN,GENII (EB Green)

5432531-195

Unavailable

18

BRKT,R.HOLDDOWN

5220880

Unavailable

19

Foil, Rear Cab

5810957

Unavailable

20

Foil, Rear Cab, Small

5810991

Unavailable

21

BOLT, BLACK(10)

7512282

Unavailable

21

BOLT, BLACK(10)

7512282

Unavailable

21

BOLT, BLACK(10)

7512282

Unavailable

22

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

23

GUARD,CLUTCH,OUTER

5222860-067

$7.06

24

RIVET,INTERLOCK,B(50)

7661638

$1.19

25

Pad, Foot (See Footnote) (See Bumper/Rack Mounting Page A7, Ref. 31)

----

Unavailable

26

BRKT, LH MUD FLAP

5211131-067

Unavailable

27

NUT-LOCK(10)

7542122

$1.19

28

MUDFLAP, LH, FULL

5850107

Unavailable

28

MUDFLAP,RH,FULL

5850110

$57.94

29

TAPE, FOIL

5810310

Unavailable

30

LID,TOOLBOX,SIL/GRN.

5430769-1042

$40.87

31

STRAP,TOOL COMPARTMENT

5410425

Unavailable
