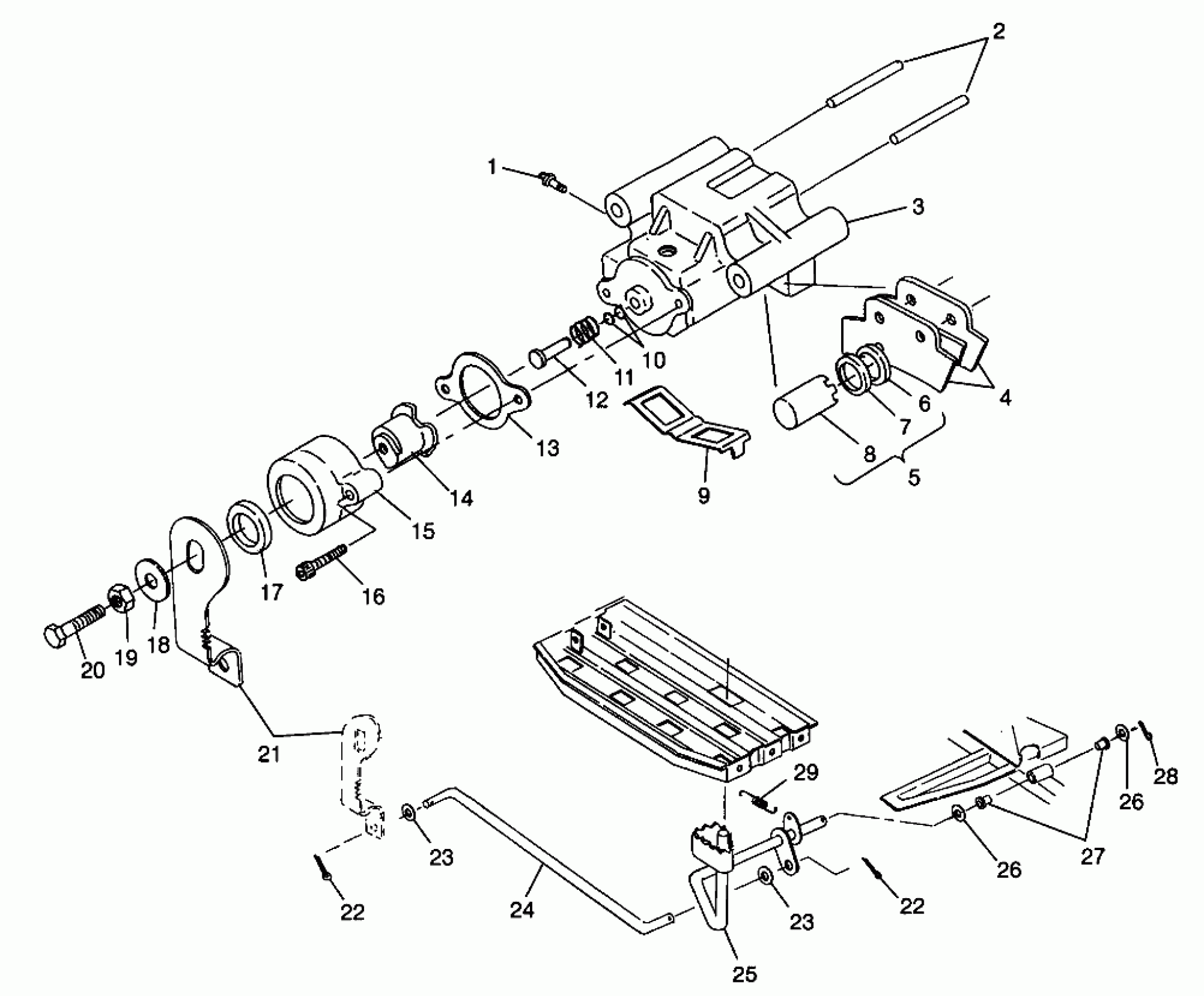

Polaris MAGNUM 4X4 - W98AC42A REAR BRAKE - N98AC42D (4945214521C011) Diagram

#

Description
Price

1

SCREW,BLEEDER

7080352

$3.17

2

PIN, DOWEL(10)

7661820

$13.99

3

CALIPER,R.BRAKE,MACH

5131272

Unavailable

4

KIT,BRAKEPAD,REAR

2200464

$66.65

4

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

4

KIT,REAR BRAKEPADS,ATV

2201150

Unavailable

5

KIT-PISTON & SEAL (Incl. 6 - 8)

2200463

$97.76

6

Ring, Square (.134 Sq.)

----

Unavailable

7

Ring, Square (.099 Sq.)

----

Unavailable

8

PISTON, CALIPER Substituted by 5132294

5020506

$56.65

9

SPRING,ANTI-RATTLE

5240993

Unavailable

10

O RING-.364X.504X.07

5410542

$4.84

11

SPRING,BRAKE,COMP.

7041219

Unavailable

12

PIN,BRAKE CALIPER

5020666

Unavailable

13

GASKET, BRAKE

5830009

Unavailable

14

RAMP,MOVE.BRAKE(D/C)

5630651

Unavailable

15

RAMP,STAT.BRAKE(D/C)

5630652

Unavailable

16

SCREW(10)

7512173

Unavailable

17

SEAL, BRAKE

3610026

Unavailable

18

WASHER, SPRING(10)

7555828

Unavailable

19

NUT(10)

7542129

$4.76

20

BOLT

7515145

Unavailable

21

ARM,BRAKE CALIPER (US)

5240624

Unavailable

21

ARM,BRAKE,CALIPER (SWED)(NOR)

5222984

Unavailable

22

PIN COTTER(10)

7661203

$1.19

22

PIN COTTER(10)

7661203

$1.19

23

WASHER(10)

7555806

$0.79

23

WASHER(10)

7555806

$0.79

24

ROD, BRAKE

5224531

$51.59

25

FOOTBRAKE,BLK.

1910144-067

Unavailable

26

WASHER(10)

7555919

$4.99

26

WASHER(10)

7555919

$4.99

27

BUSHING-PEDAL PIVOT

5431107

$8.73

28

COTTER PIN(10)

7661401

$0.79

29

SPRING-EXHAUST(10)

7042029

$5.65
