INTAKE and EXHAUST - W98AC42A (4945214521D006)

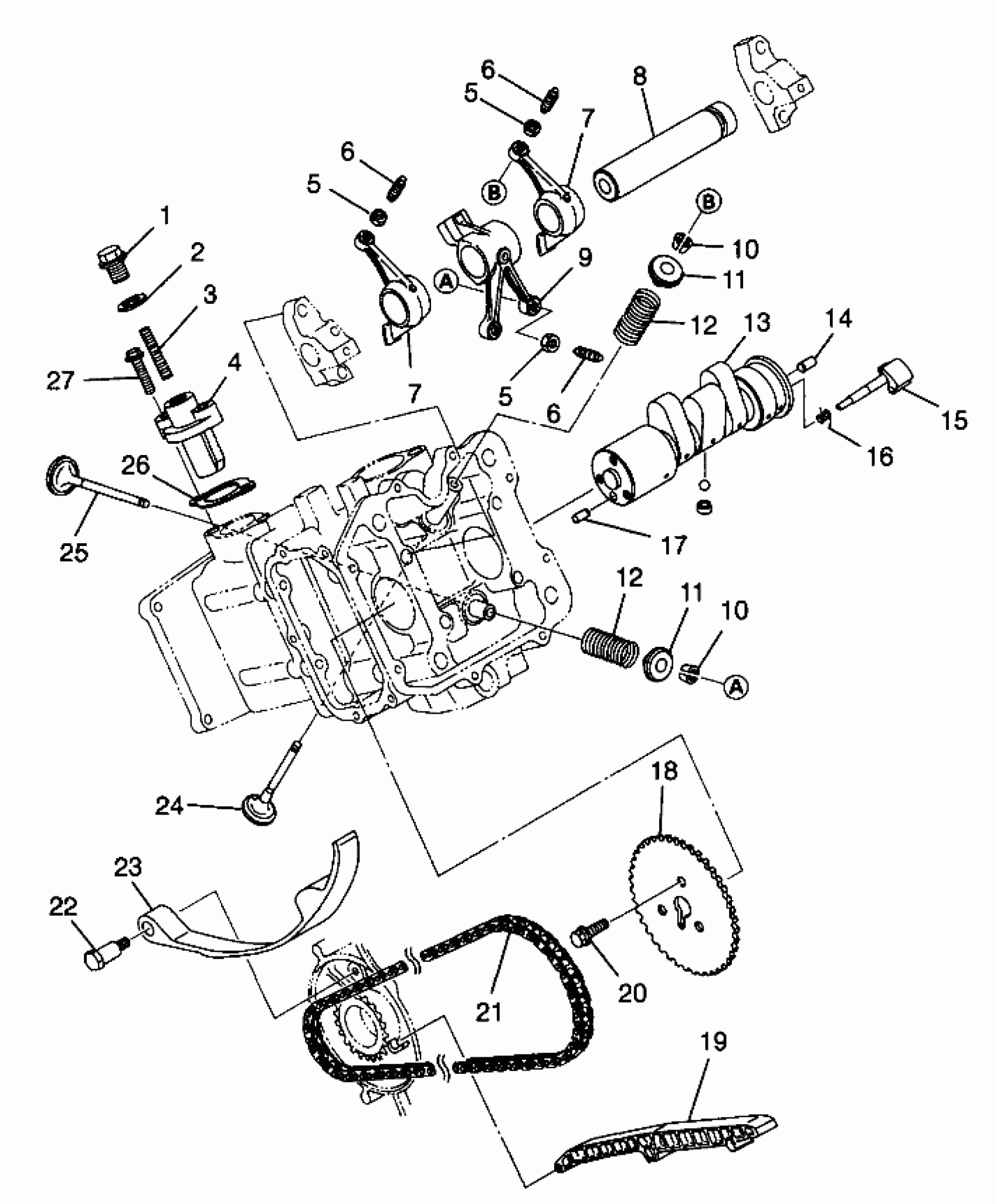

Polaris MAGNUM 4X4 - W98AC42A INTAKE and EXHAUST - W98AC42A (4945214521D006) Diagram
#
Description
Price
1
PLUG
3084845
Unavailable
2
Gasket, Plug
3084920
Unavailable
3
SPRING,TENSIONER
3084919
Unavailable
4
TENSIONER ASM. (Incl. 1-3)
3084918
Unavailable
5
NUT(10)
3084912
$3.99
5
NUT(10)
3084912
$3.99
5
NUT(10)
3084912
$3.99
6
SCREW, ADJ.
3084911
$9.59
6
SCREW, ADJ.
3084911
$9.59
6
SCREW, ADJ.
3084911
$9.59
7
ROCKERARM ASM,INTAKE * (Incl. 5,6)
3084910
$115.99
7
ROCKERARM ASM,INTAKE * (Incl. 5,6)
3084910
$115.99
8
SHAFT,ROCKER
3084909
$51.99
9
ROCKERARM ASM,EXHAUST * (Incl. 5,6)
3084913
$131.99
10
COLLET,VALVE
3084908
$3.99
10
COLLET,VALVE
3084908
$3.99
11
RETAINER,SPRING Substituted by 3086893
3084907
Unavailable
11
RETAINER,SPRING Substituted by 3086893
3084907
Unavailable
12
SPRING,VALVE Substituted by 3086892
3084906
Unavailable
12
SPRING,VALVE Substituted by 3086892
3084906
Unavailable
13
CAMSHAFT Substituted by 3086212 (Incl. 14-17)
3084898
Unavailable
14
PIN, DOWEL Substituted by 3086838
3080103
$7.14
15
LEVER, RELEASE
3085348
Unavailable
16
SPRING,RETURN
3085076
Unavailable
17
PIN,DOWEL
3084899
$7.19
18
SPROCKET 2
3084914
$75.99
19
GUIDE,CHAIN
3084916
Unavailable
20
BOLT&WASHER ASM.
3081657
$4.79
21
CHAIN, TIMING *
3084915
$95.99
22
BOLT,PIVOT,LEVER
3084924
Unavailable
23
LEVER
3084917
$91.99
24
VALVE,INTAKE
3085349
$63.99
25
VALVE,EXHAUST Substituted by 3085412
3084905
Unavailable
26
GASKET,TENSIONER
3084922
Unavailable
27
BOLT, FLANGE
3084874
Unavailable
