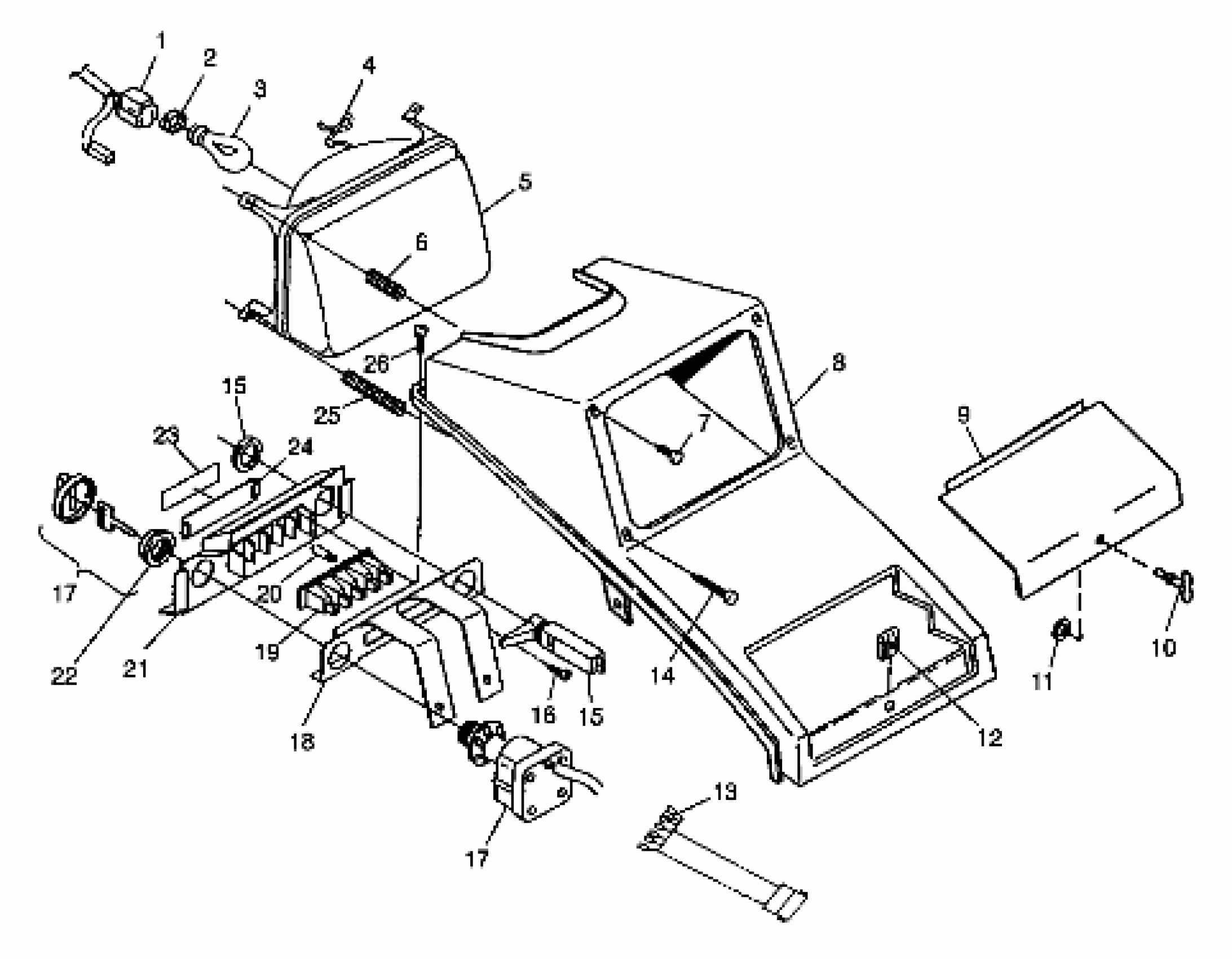

Polaris MAGNUM 4X4 - W98AC42A HEADLIGHT - N98AC42D (4945214521C008) Diagram
#
Description
Price
1
Harness, Main Wire (See Footnote) (See Electrical Taillight Page C13, Ref. 1)
-------
Unavailable
2
COVER,SOCKET,H/L.
4032066
Unavailable
3
BULB, H/L
4030028
$29.99
4
RETAINER,H/L BULB
4032063
Unavailable
5
H/L ASM,W/BULBSEAL (US)(Swed)
4032065
Unavailable
6
SPRING-ADJ
4032002
Unavailable
7
SCREW, ADJ.(10)
4032003
Unavailable
8
COVER,H/L,GRY.
5431861-132
Unavailable
9
DOOR,ACCESS,GRAY,STG.
5431201-132
Unavailable
10
FASTENER, 1/4 TURN(10)
7670064
$6.23
11
RING,SPLIT RETAINER(10)
7670065
$1.99
12
RECEPTACLE,CLIP-ON(10)
7670066
$3.83
13
HARNESS,INDIC.MAG,W/CON
2460613
$17.43
14
SCREW,ADJUST,(ATV)(10)
4032042
Unavailable
15
KIT-CHOKE CONTROL
2200188
$24.27
15
CABLE,CHOKE,W/ADJUSTER
7080727
$97.13
15
KIT-CHOKE CONTROL
2200188
$24.27
15
CABLE,CHOKE,W/ADJUSTER
7080727
$97.13
16
SCREW, SEM(10)
7511862
$6.99
17
SWITCH,IGN.W/ CON
4110209
Unavailable
17
DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.
4110141-31XX
Unavailable
17
DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.
4110148-32XX
Unavailable
17
SWITCH,IGN.W/ CON
4110209
Unavailable
17
DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.
4110141-31XX
Unavailable
17
DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.
4110148-32XX
Unavailable
18
BRKT, IGN. PANEL
5220965-067
Unavailable
19
STRIP, SOCKET
4032037
$27.19
20
BULB
4030042
Unavailable
21
PANEL, IGNITION
5430995
Unavailable
22
NUT,IGN.SWITCH
5432090
Unavailable
23
DECAL, PANEL [No Longer Available]
7072528
Unavailable
24
LENS ASM,PILOT LIGHT (Incl. 23)
2652049
Unavailable
25
SPRING,ADJ.
4032041
Unavailable
26
SCREW(10)
7512017
$4.79
