- MAGNUM 4X4 - W98AC42A
GEARCASE/BRAKE and CHAIN COVER MOUNTING - N98AC42D (4945214521C009)

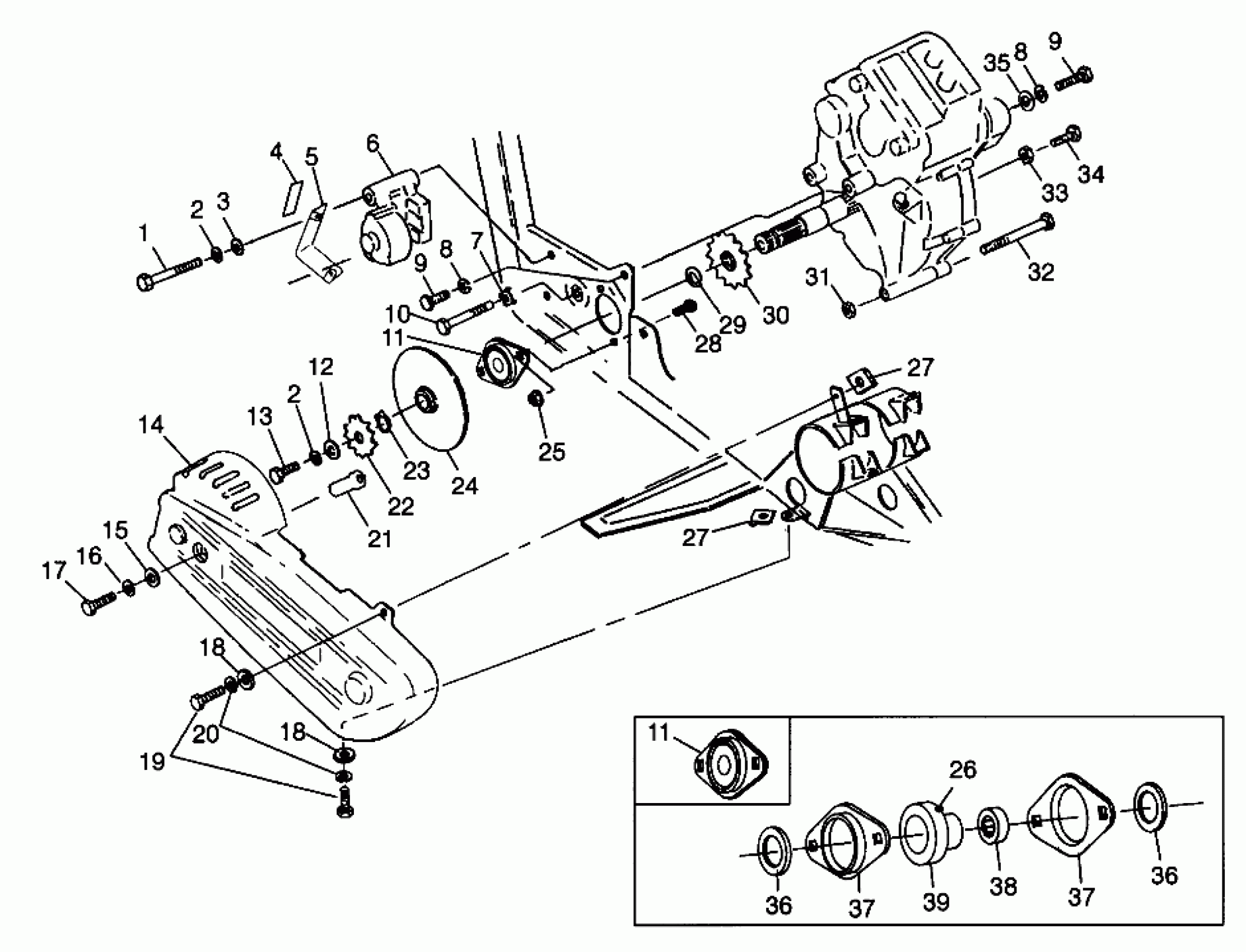

Polaris MAGNUM 4X4 - W98AC42A GEARCASE/BRAKE and CHAIN COVER MOUNTING - N98AC42D (4945214521C009) Diagram
#
1
BOLT(10)
7515345
$5.59
2
LOCK WASHER(10)
7552901
$1.49
2
LOCK WASHER(10)
7552901
$1.49
3
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
4
DECAL,BRAKE SHIELD
7075339
Unavailable
5
SHIELD,R.CALIPER,BLK.
5241018-067
Unavailable
6
CALIPER ASM,R.(SCAND) (SWED)
1910130
Unavailable
6
CALIPER ASM,R.BRAKE (US)
1910224
Unavailable
7
Plate, Bolt Lock (See Footnote) (See Swing Arm/Shock Mounting Pg. B12, Ref. 2)
-------
Unavailable
8
WASHER(10)
7552603
$1.49
8
WASHER(10)
7552603
$1.49
9
BOLT(10)
7515522
$3.99
9
BOLT(10)
7515522
$3.99
10
Bolt, Shoulder (See Footnote) (See Swing Arm/Shock Mounting Pg. B12, Ref. 17)
-------
Unavailable
11
SHAFT ASM,O/P,NDL BRG. Substituted by 2201115
1590265
Unavailable
11
SHAFT ASM,O/P,NDL BRG. Substituted by 2201115
1590265
Unavailable
12
WASHER FLAT(10)
7555701
$3.99
13
BOLT(10)
7515321
$1.49
14
GUARD,CHAIN,CTR.
5431717
Unavailable
15
WASHER(10) Substituted by 7558402
7555770
Unavailable
16
WASHER(10)
7552606
$4.79
17
BOLT(10)
7515384
Unavailable
18
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
18
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
19
BOLT(10)
7512269
Unavailable
20
WASHER(10)
7552605
$5.27
21
SPACER,CHAIN GUARD
5333254
Unavailable
22
SPKT, 11T
3221058
$74.99
23
RING,RETAINING(10)
7710433
$4.79
24
DISC ASM,BRAKE
1910177
Unavailable
25
NUT,FLANGE LOCK(10)
7542449
$3.99
26
ZERK,FITTING,THREADED(10)
7080433
$1.49
27
NUT, SPEED(10)
7670060
$3.99
27
NUT, SPEED(10)
7670060
$3.99
28
BOLT,CARRIAGE(10)
7515484
Unavailable
29
RING,SNAP(10)
7710434
$3.99
30
SPKT, 12T
3221044
$43.99
31
NUT LOCK(10)
7542403
$3.99
32
BOLT(10)
7515472
$2.39
33
NUT(10)
7542404
$1.59
34
BOLT(10)
7515485
$3.03
35
WASHER Substituted by 7555720
7555784
Unavailable
36
SEAL,BRAKE
3610062
$9.70
36
SEAL,BRAKE
3610062
$9.70
37
FLANGETTE,O/P SHAFT BRNG.
5242072
Unavailable
37
FLANGETTE,O/P SHAFT BRNG.
5242072
Unavailable
38
BEARING,NEEDLE
3554202
Unavailable
39
HSG,BRNG,O/P SHAFT
5131643
Unavailable
