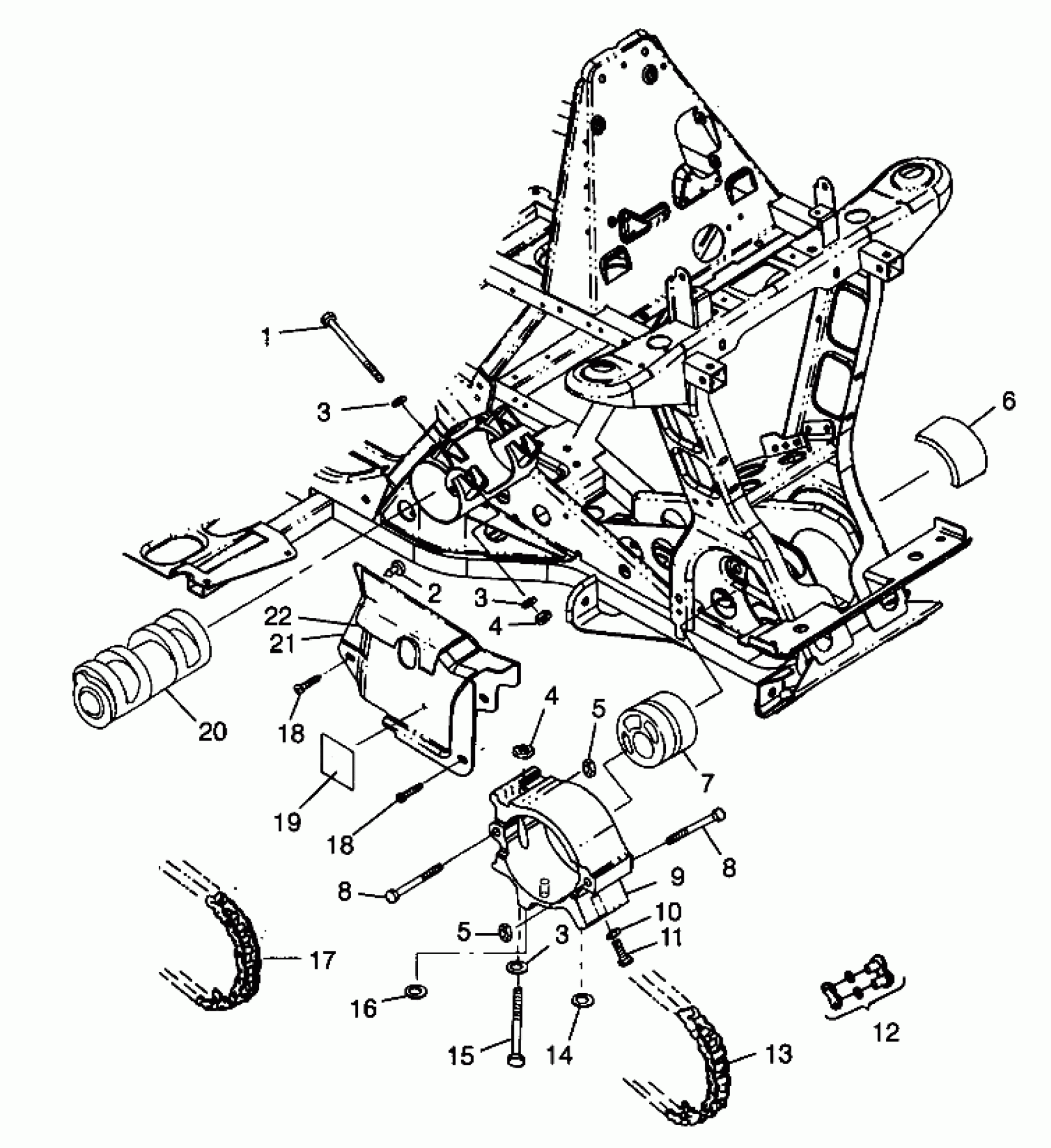

Polaris MAGNUM 4X4 - W98AC42A FRONT DRIVE - N98AC42D (4945214521B005) Diagram

#

Description
Price

1

NUT, LOCK,(10)

7542503

$10.39

2

WASHER(10)

7555883

$3.99

3

CLIP,X-MAS TREE

7670101

$2.39

3

CLIP,X-MAS TREE

7670101

$2.39

3

CLIP,X-MAS TREE

7670101

$2.39

4

BOLT(10)

7512583

Unavailable

4

BOLT(10)

7512583

Unavailable

5

NUT,FLANGE LOCK(10)

7542449

$3.99

5

NUT,FLANGE LOCK(10)

7542449

$3.99

6

SPACER,F.ECCENTRIC

5811519

Unavailable

7

Asm., Front Tightener (See Footnote) (See Front Tightener Page B6 for Details)

-------

Unavailable

8

SCREW

7517303

Unavailable

8

SCREW

7517303

Unavailable

9

CLAMP,FR.ECCENTRIC

5131379

Unavailable

10

WASHER(10)

7552603

$1.49

11

BOLT(10)

7515522

$3.99

12

CONNECTOR LINK

3225024

$19.99

13

CHAIN, DRIVE Substituted by 3224056-064 (Incl. 12)

3224041

Unavailable

14

WASHER Substituted by 7555720

7555784

Unavailable

15

SCREW

7517304

Unavailable

16

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

17

CHAIN, DRIVE Substituted by 3224056-070 (Incl. 12)

3224044

Unavailable

18

SCREW(10)

7512252

Unavailable

18

SCREW(10)

7512252

Unavailable

19

DECAL,FR.CHAIN TENSION

7074956

Unavailable

20

Asm., Center Tightener (See Footnote) (See Center Tightener Page C1 for Details)

-------

Unavailable

21

GUARD,FR.CHAIN

5432572

Unavailable

22

FOIL,CHAINGUARD

5811502

Unavailable
