Description

Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

COVER,FUELTANK,E.B.GRN. (EB Green)

5431197-195

Unavailable

3

RIVET,3/16X.402(50)

7621432

$1.49

4

STRAP,MTG,FUELPUMP

5211547-067

$2.02

5

BOLT, BLACK(10)

7512282

$1.49

5

BOLT, BLACK(10)

7512282

$1.49

6

CLIP, PUSH-ON(10)

7670052

$1.99

7

Cover, Headlight (See Footnote) (See Headlight Page C8, Ref. 8)

-------

Unavailable

8

RIVET(50)

7621460

$1.49

9

CAB ASM,FR,EB.GRN. (See Footnote) (EB Green) (Incl. Warning Decals)

2631926-195

Unavailable

10

WASHER, FLAT(10)

7555859

$1.49

11

NUT-LOCK(10)

7542122

$1.49

12

BRKT, LH MUD FLAP

5211131-067

Unavailable

12

BRKT,RH MUD FLAP

5211020-067

Unavailable

13

MUDFLAP,LH,FR.

5850126

Unavailable

13

MUDFLAP,RH,FRONT

5850130

Unavailable

14

BOLT(10)

7512232

$1.49

14

BOLT(10)

7512232

$1.49

15

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

16

COVER,RH(STL.GREY)SIDE Substituted by 5433579-132

5430971-132

Unavailable

16

COVER,SIDEPANEL,GRAY

5431675-132

Unavailable

17

Bracket, Fuel Cover Mount. (See Footnote) (See Fuel Tank Page A13, Ref. 9)

-------

Unavailable

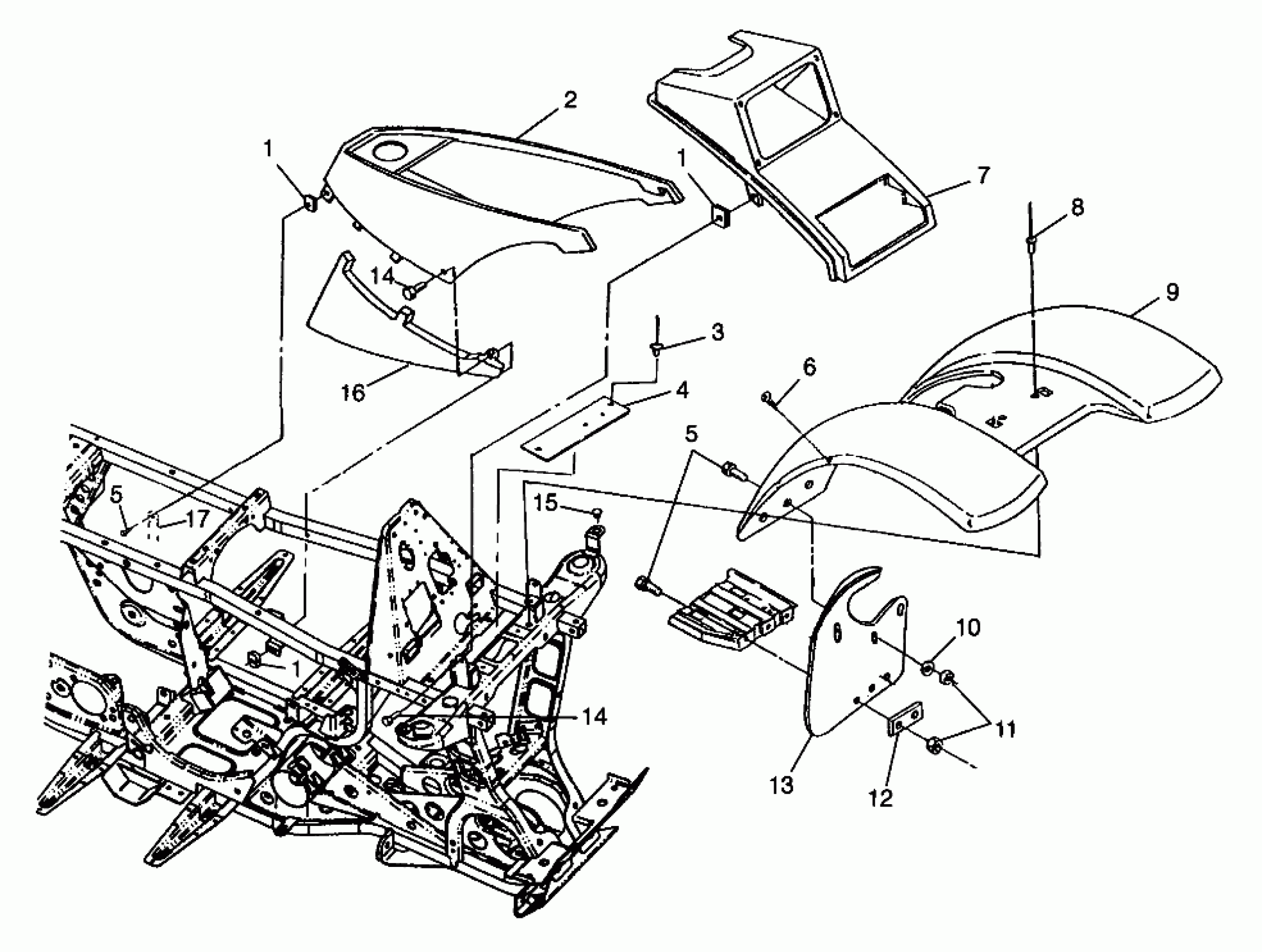

Polaris MAGNUM 4X4 - W98AC42A FRONT CAB - S98AC42E (4945214521A005) Diagram

NUT, SPEED(10)

NUT, SPEED(10)

NUT, SPEED(10)

COVER,FUELTANK,E.B.GRN. (EB Green)

RIVET,3/16X.402(50)

STRAP,MTG,FUELPUMP

BOLT, BLACK(10)

BOLT, BLACK(10)

CLIP, PUSH-ON(10)

Cover, Headlight (See Footnote) (See Headlight Page C8, Ref. 8)

RIVET(50)

CAB ASM,FR,EB.GRN. (See Footnote) (EB Green) (Incl. Warning Decals)

WASHER, FLAT(10)

NUT-LOCK(10)

BRKT, LH MUD FLAP

BRKT,RH MUD FLAP

MUDFLAP,LH,FR.

MUDFLAP,RH,FRONT

BOLT(10)

BOLT(10)

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

COVER,RH(STL.GREY)SIDE Substituted by 5433579-132

COVER,SIDEPANEL,GRAY

Bracket, Fuel Cover Mount. (See Footnote) (See Fuel Tank Page A13, Ref. 9)
