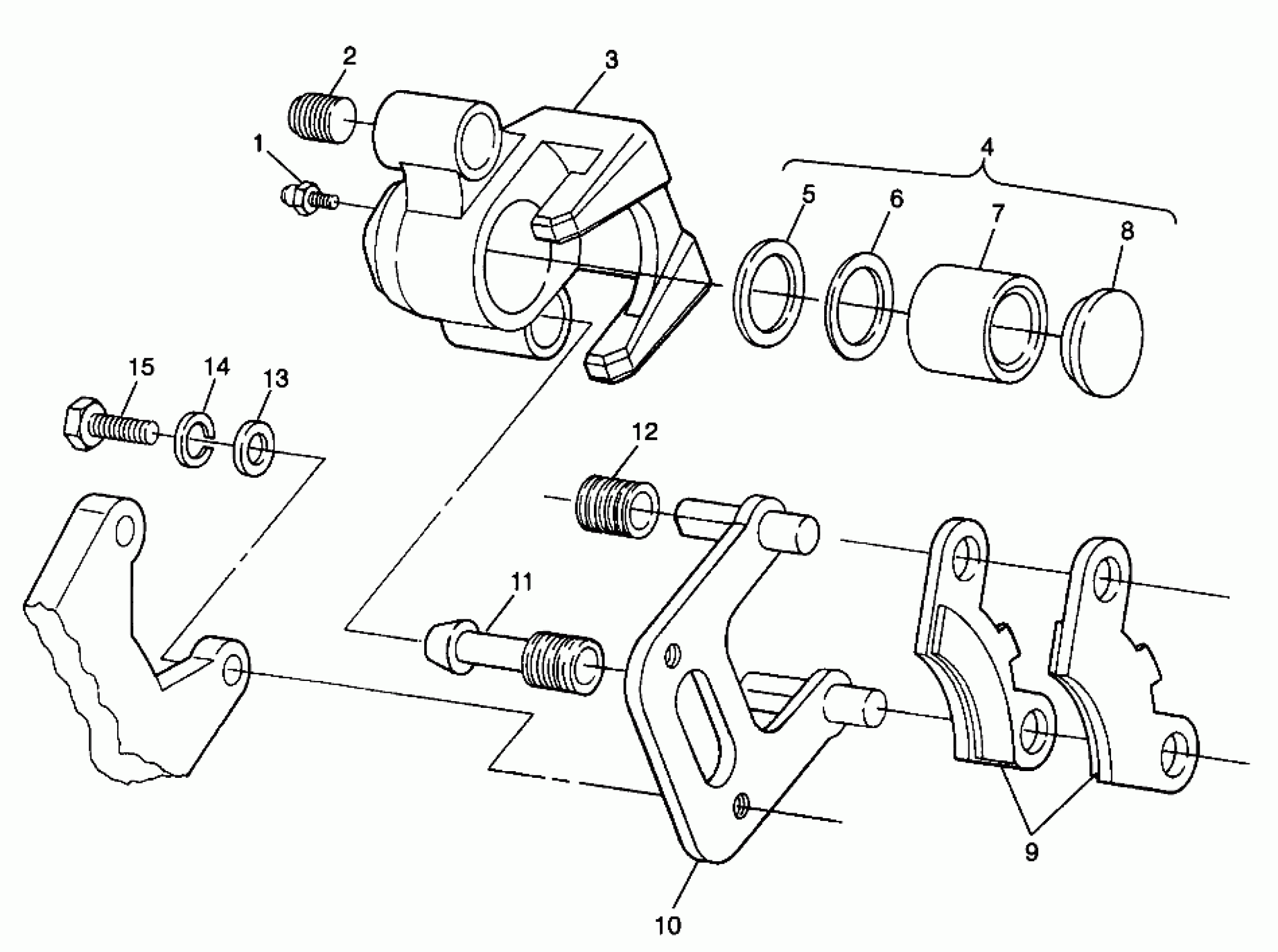

Polaris MAGNUM 4X4 - W98AC42A FRONT BRAKE - W98AC42A (4945214521B004) Diagram

#

Description
Price

-

KIT-BOOT,FRONT BRAKE

1930642

Unavailable

-

CALIPER ASM,LH,FR.BRAKE Substituted by 1910309 (Incl. 1-11)(US)

1910234

Unavailable

-

CALIPER ASM,RH,FR.BRAKE Substituted by 1910310 (Incl. 1-11)(US)

1910235

Unavailable

-

CALIPER ASM,LH,FR.BRAKE Substituted by 1910234 (Incl. 1-11)(SWED)

1910181

Unavailable

-

CALIPER ASM,RH,FR.BRAKE Substituted by 1910235 (Incl. 1-11)(SWED)

1910182

Unavailable

1

SCREW,BLEEDER

7080352

$3.19

2

SETSCREW,SKT.HD.(10)

7515489

$5.59

3

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

5131115

Unavailable

3

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

5131116

Unavailable

4

PISTON & SEAL,KIT (Incl. 5-8)

1930665

$55.99

5

SQUARE RING-MOLDED (.094) (.094)

5410779

$10.51

6

RING,SQUARE,MOLDED (.103 x .134)

5410780

$10.51

7

PISTON, CALIPER Substituted by 5132294

5020506

Unavailable

8

INSULATOR,CALIPER,FR. Substituted by 5132294

5910026

$54.04

9

KIT,BRAKEPAD,FRONT (2 Sets of 2 Pads)

2200465

$47.99

9

KIT,FR.BRAKEPAD,HVY.DUTY (2 Sets of 2 Pads)

2200901

$55.99

9

KIT,BRAKEPAD,FR,(ATV)

2201149

$55.99

10

MT.ASM, CALIPER

1910056

Unavailable

11

Boot, Bushing

5410495

Unavailable

12

Boot, Pin Seal

5410494

Unavailable

13

Washer, Spring Lock (See Footnote) (See Front Strut Page B2, Ref. 5)

-------

Unavailable

14

Washer, Spring Lock (See Footnote) (See Front Strut Page B2, Ref. 8)

-------

Unavailable

15

Bolt (See Footnote) (See Front Strut Page B2, Ref. 7)

-------

Unavailable
