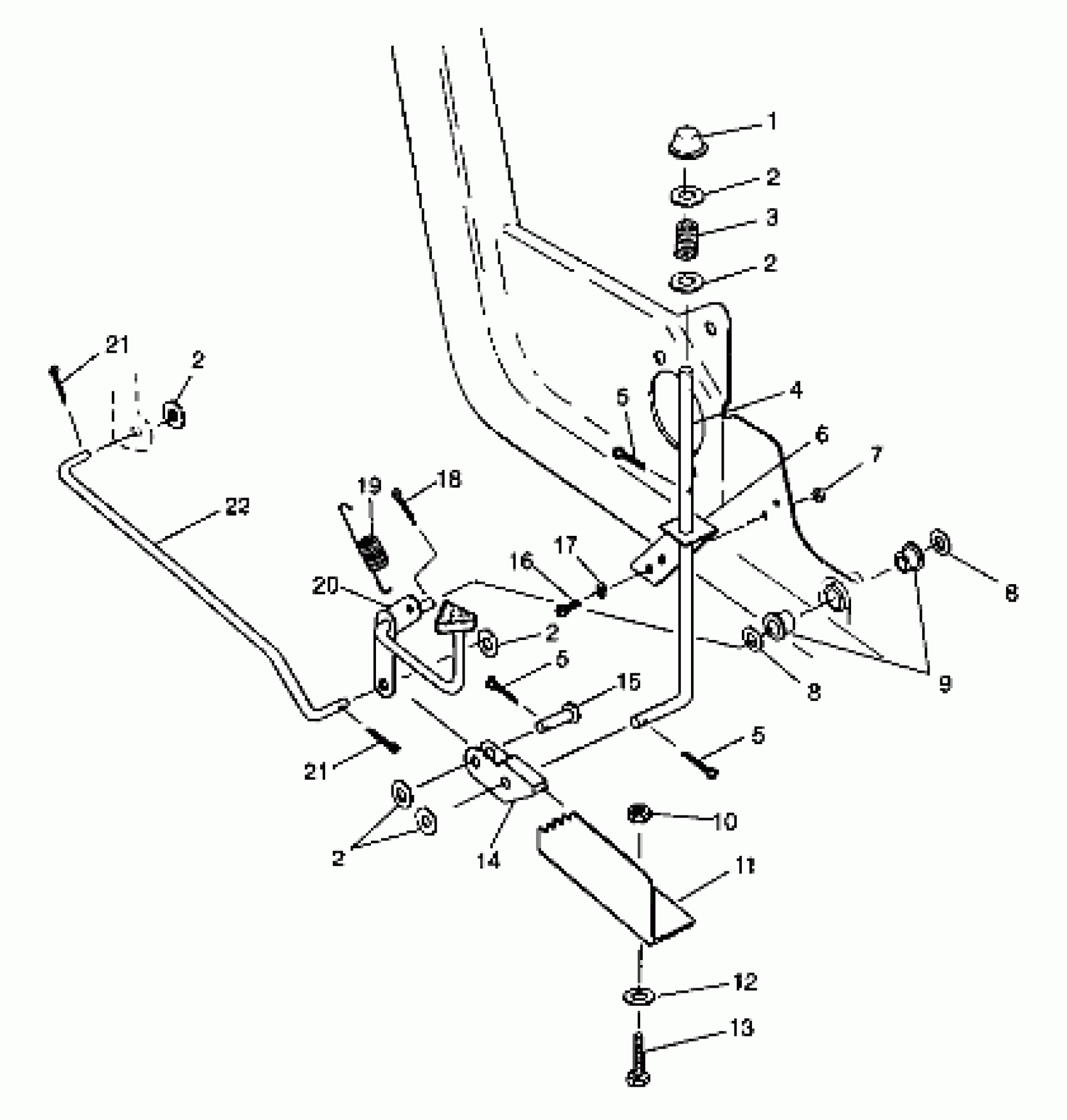

Polaris MAGNUM 4X4 - W98AC42A FOOT PEDAL and PARKING BRAKE - S98AC42E (4945214521C012) Diagram

#

Description
Price

-

BRAKELOCK ASM,(SWED),W/FOOT BRK.

1910154

Unavailable

1

PUSHNUT, RED(10)

7670063

Unavailable

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

3

SPRING

7041365

Unavailable

4

ROD,BRAKELOCK

5224548

Unavailable

5

PIN, COTTER(10)

7661010

$1.49

5

PIN, COTTER(10)

7661010

$1.49

5

PIN, COTTER(10)

7661010

$1.49

6

STAND OFF

5240525

Unavailable

7

NUT-LOCK(10)

7542122

$1.49

8

WASHER(10)

7555919

$4.99

8

WASHER(10)

7555919

$4.99

9

BUSHING-PEDAL PIVOT

5431107

$8.79

10

NUT(10)

7542124

Unavailable

11

CATCH

5240526

Unavailable

12

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

13

BOLT(10) Substituted by 7512269

7515101

Unavailable

14

FLIPPER

5240524

Unavailable

15

PIN, CLEVIS(10)

7661640

Unavailable

16

SCREW,(10)

7512024

$4.79

17

DESC NOT_AVAILABLE

7552601

Unavailable

18

COTTER PIN(10)

7661401

$1.49

19

SPRING-EXHAUST(10)

7042029

$4.84

20

FOOTBRAKE,BLK.

1910144-067

Unavailable

21

PIN COTTER(10)

7661203

$1.49

21

PIN COTTER(10)

7661203

$1.49

22

ROD, BRAKE

5224531

$51.99
