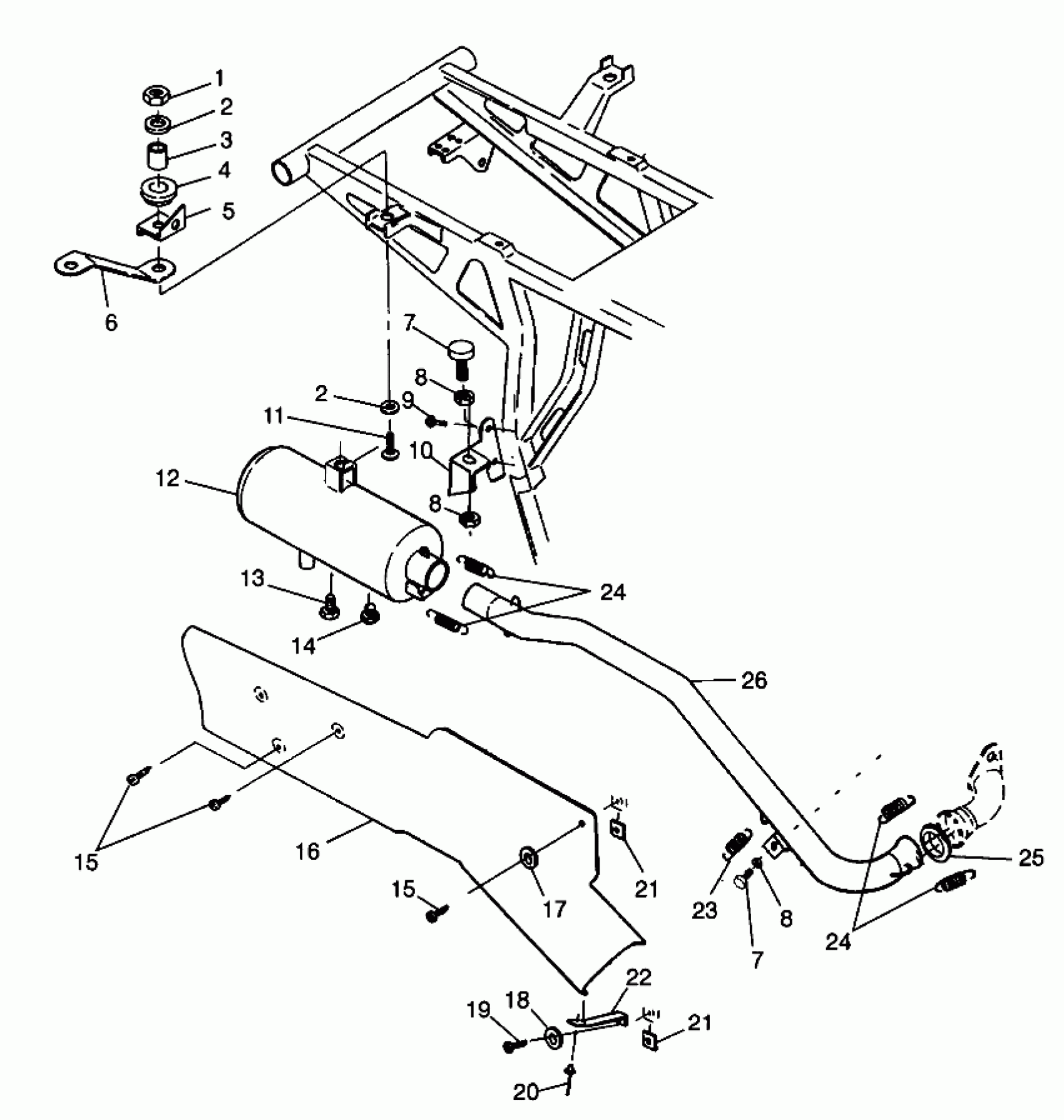

Polaris MAGNUM 4X4 - W98AC42A EXHAUST SYSTEM - N98AC42D (4945214521A012) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

SUPPORT,R.FENDER

5220902-067

$48.40

7

MOUNT,TORQUE-STOP

3110064

Unavailable

7

MOUNT,TORQUE-STOP

3110064

Unavailable

8

NUT HEX(10)

7542301

$1.59

8

NUT HEX(10)

7542301

$1.59

8

NUT HEX(10)

7542301

$1.59

9

BOLT(10)

7512232

$1.49

10

BRKT,MFLR.SUPPORT,BLK

5242081-067

Unavailable

11

BOLT(10)

7515316

$2.39

12

EXHAUST,WELD,BLK.

1260629-029

Unavailable

13

BOLT(10)

7512666

$2.39

14

PLUG, CLEANOUT

7052083

$15.87

15

SCREW(10)

7515140

$3.19

15

SCREW(10)

7515140

$3.19

16

HEATSHIELD ASM. (Incl. Foil)

1260717

Unavailable

17

WASHER(10)

7555923

$2.39

18

WASHER(10) Substituted by 7558301

7555776

Unavailable

19

BOLT, BLACK(10)

7512282

$1.49

20

RIVET(50)

7621462

$1.49

21

NUT, SPEED(10)

7670060

$3.99

21

NUT, SPEED(10)

7670060

$3.99

22

BRKT,BLK,HEATSHIELD

5240179-067

Unavailable

23

SPRING-EXHAUST(10)

7042029

$4.84

24

SPRING, EXHAUST(10)

7042031

$5.65

24

SPRING, EXHAUST(10)

7042031

$5.65

25

SEAL-EXHAUST

5240898

$15.99

26

PIPE,EXHAUST,BLK

1260856-029

Unavailable
