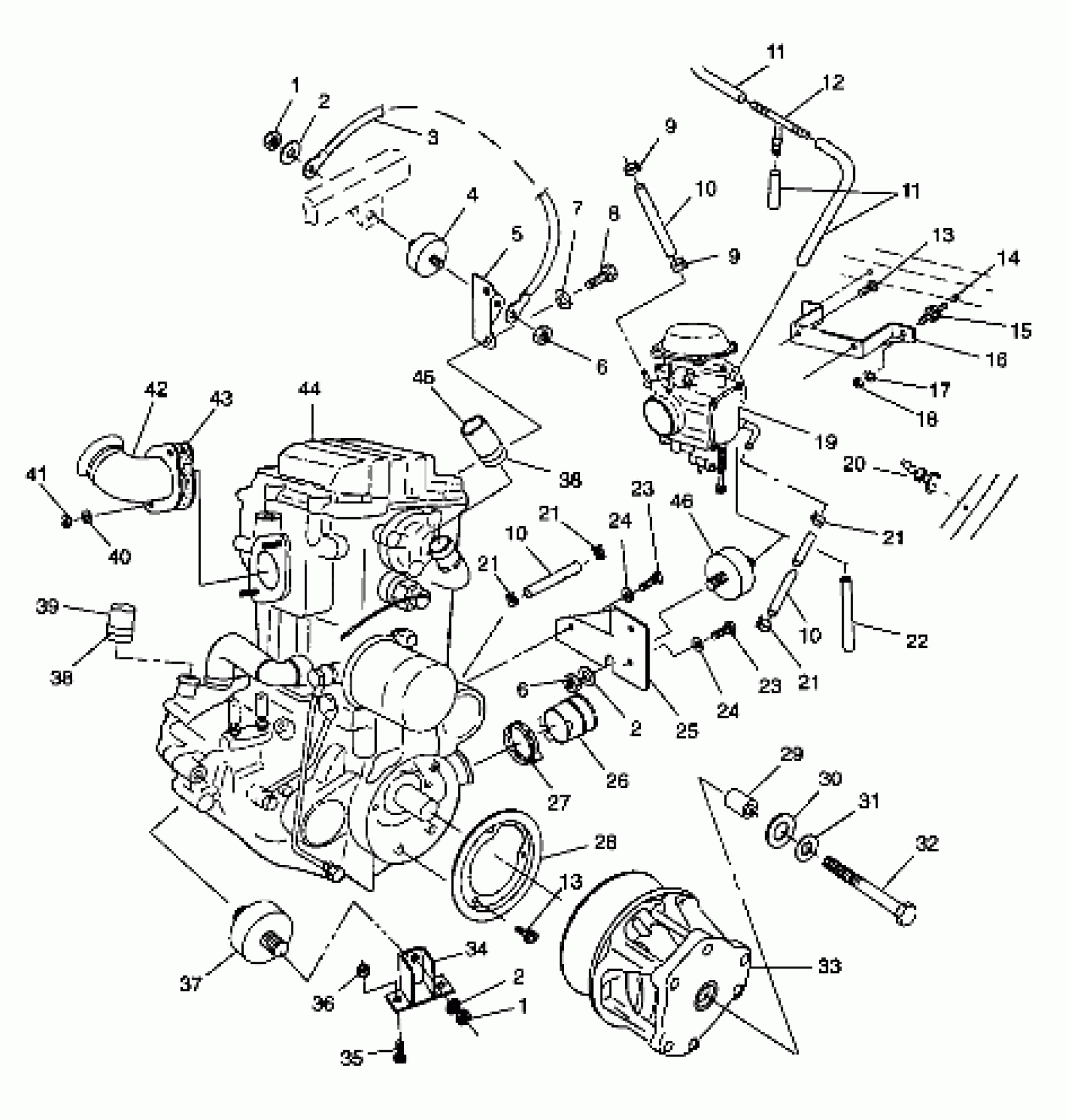

Polaris MAGNUM 4X4 - W98AC42A ENGINE MOUNTING - W98AC42A (4945214521A009) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10)

7555801

$3.99

2

WASHER(10)

7555801

$3.99

2

WASHER(10)

7555801

$3.99

3

CABLE,GND-ENGINE

4010132

Unavailable

4

MOUNT,RUBBER,TOP

3110044

Unavailable

5

MOUNT,ENG.TOP, BLK.

5240328-067

Unavailable

6

NUT LOCK(10)

7542403

$3.99

6

NUT LOCK(10)

7542403

$3.99

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7512315

$4.79

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

Screw and Washer (See Footnote) (See Crankcase Page D3, Ref. 6)

-------

Unavailable

13

Screw and Washer (See Footnote) (See Crankcase Page D3, Ref. 6)

-------

Unavailable

14

INSERT,(10)

7542143

$5.59

15

MOUNT,CARB.

3110050

$12.99

16

BRKT, CARB.MT.

5240609-067

Unavailable

17

WASHER(10)

7552605

$5.27

18

NUT HEX(10)

7542105

$3.99

19

Asm., Carburetor (See Footnote) (See Carburetor Page D12, Ref. 9)

-------

Unavailable

20

FITTING,VENT,1/8"

7052192

Unavailable

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

22

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

23

SCREW(10)

7512490

$3.99

23

SCREW(10)

7512490

$3.99

24

WASHER(10)

7552603

$1.49

24

WASHER(10)

7552603

$1.49

25

MOUNT,R.ENG,BLK

5241921-067

$10.71

26

BOOT,CLUTCH INTAKE

5410421

$11.19

27

CLAMP, NARROW BAND(10)

7080511

$4.79

28

Bracket, Retainer, Seal (See Footnote) (See Clutch Cover Pg. C2, Ref. 20)

-------

Unavailable

29

BUSHING-.437 X.770 X.50

5430261

$7.19

30

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

31

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

32

BOLT(10)

7512566

$30.79

33

Asm., Driven Clutch, ATV-06 (See Footnote) (See Driven Clutch Pg. C5, Ref. 4)

-------

Unavailable

34

MOUNT,ENG,BLK

1040534-067

$13.99

35

BOLT(10)

7515307

$3.99

36

NUT FLEX-LOC(10)

7542303

$6.39

37

MOUNT,RUBBER,FRONT

3110046

Unavailable

38

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

38

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

39

Hose, Water (See Footnote) (See Cooling System Page A11, Ref. 35)

-------

Unavailable

40

Washer, Lock (See Footnote) (See Cylinder Page D4, Ref. 22)

-------

Unavailable

41

Nut (See Cylinder Pg. D4, Ref. 23)

-------

Unavailable

42

MANIFOLD,BLK

1260832-029

Unavailable

43

Gasket, Exhaust (See Footnote) (See Cylinder Page D4, Ref. 34)

-------

Unavailable

44

ENG.(S.B.)EH42PLE-01 [No Longer Available] (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and piston & crankshaft assembly. Prior a

3085555

Unavailable

45

Hose, Chafe Protected (See Footnote) (See Cooling System Page A11, Ref. 2)

-------

Unavailable

46

MOUNT,R.RUBBER

3110068

$38.60
