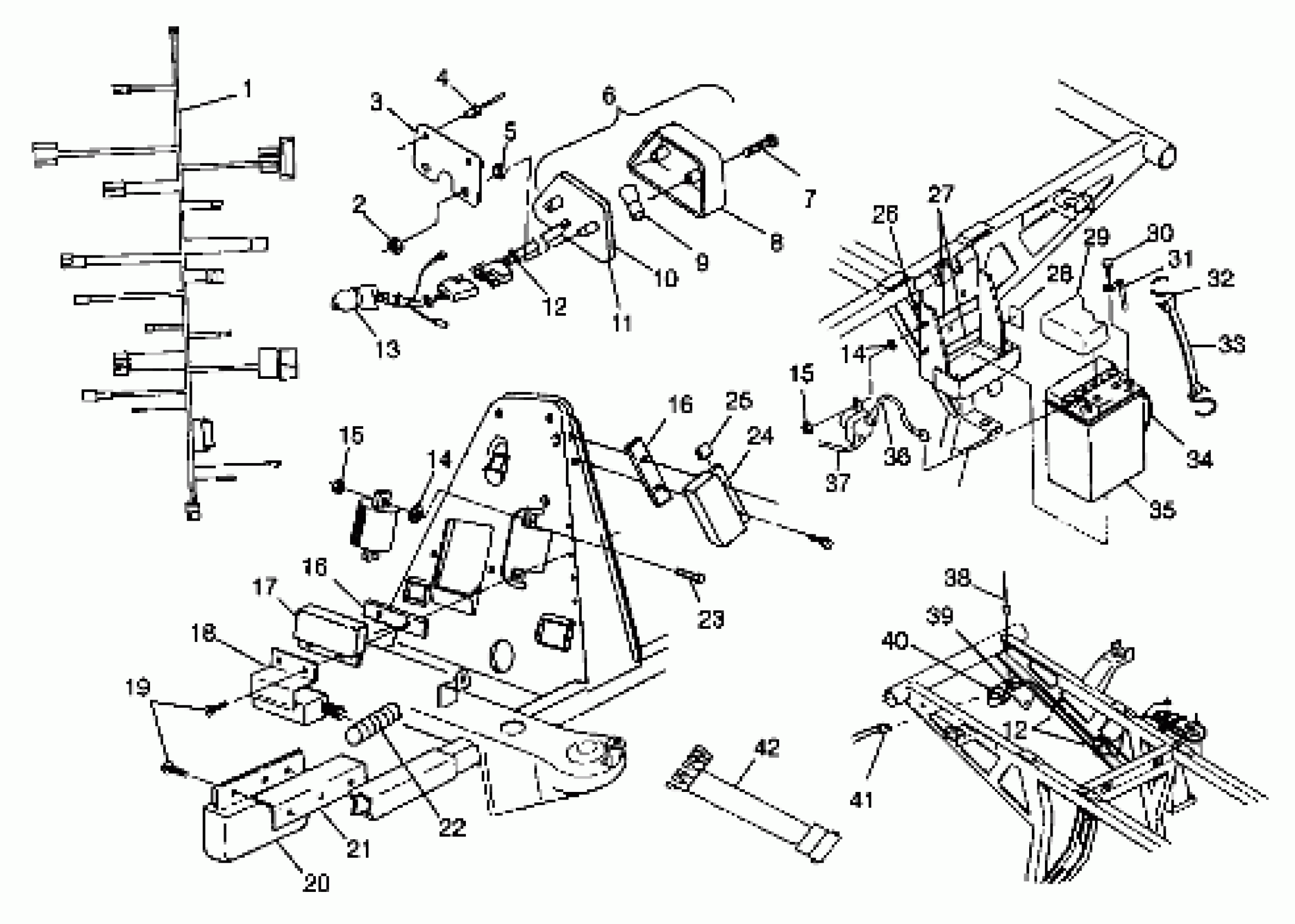

Polaris MAGNUM 4X4 - W98AC42A ELECTRICAL/TAILLIGHT - W98AC42A (4945214521C013) Diagram

#

Description
Price

1

HARNESS,MAINWIRE,(MAG4X4)

2460608

Unavailable

2

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

3

ISOLATOR,TAILLIGHT

5211391-067

$13.39

4

RIVET(50)

7621470

Unavailable

5

WASHER,NYLON(10)

7555916

$1.59

6

TAIL LIGHT ASM. (Incl. 7-11) (US)(SWED)

2432034

$55.56

7

Screw, Taillight

4032029

$4.76

8

LENS,TAILLIGHT

4032046

$32.37

9

BULB,TAILLIGHT

4030043

$6.46

10

GASKET,TAILLIGHT

4032045

$4.03

11

BACKING,TAILLIGHT

4032064

$83.33

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

KIT,CKT.BRKR,20 AMP

2200593

$68.79

14

WASHER(10)

7571602

$4.76

14

WASHER(10)

7571602

$4.76

15

NUT(10)

7541925

$0.79

15

NUT(10)

7541925

$0.79

16

HEAT SINK

5210650

Unavailable

16

HEAT SINK

5210650

Unavailable

17

LIMITER,RPM,350HZ,LR44-2

4060204

Unavailable

18

BRKT,CDI(ATV 400)

5240428

Unavailable

19

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

20

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

21

HEATSINK RECT.

5131036

Unavailable

22

TUBING,CONVOLUTED,3/4"

8360011-15

Unavailable

23

SCREW(10)

7512007

$3.97

24

LIMITER,SPEED,650HZ,(NOR.) Substituted by 4010248 (Nor)

4060184

Unavailable

25

DESC NOT_AVAILABLE (NOR)

8360012-13

Unavailable

26

SCREW(10)

7512027

$1.19

27

PAD-BATTERY

5810290

$7.27

28

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

29

COVER,BATTERY

5431769

$15.37

30

BOLT,BATT,KIT(SHORT) (Short)

2200361

Unavailable

31

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

32

HOOK-BATT.H/D(10)

7010032

$1.59

33

STRAP,BATTERY HOLDDOWN

5410424

$4.84

34

TUBE,BATTERY VENT

5432077

$8.89

35

Battery

4140006

$99.99

36

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

37

CABLE,SOL/STARTER

4010093

$48.56

38

RIVET,(50)

7621336

$1.59

39

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

40

POWER ASM,12V

2410022

Unavailable

41

PIGTAIL, POWER

2460442

$12.30

42

HARNESS,ADAPTOR JUMPER (Nor)

2460637

Unavailable
