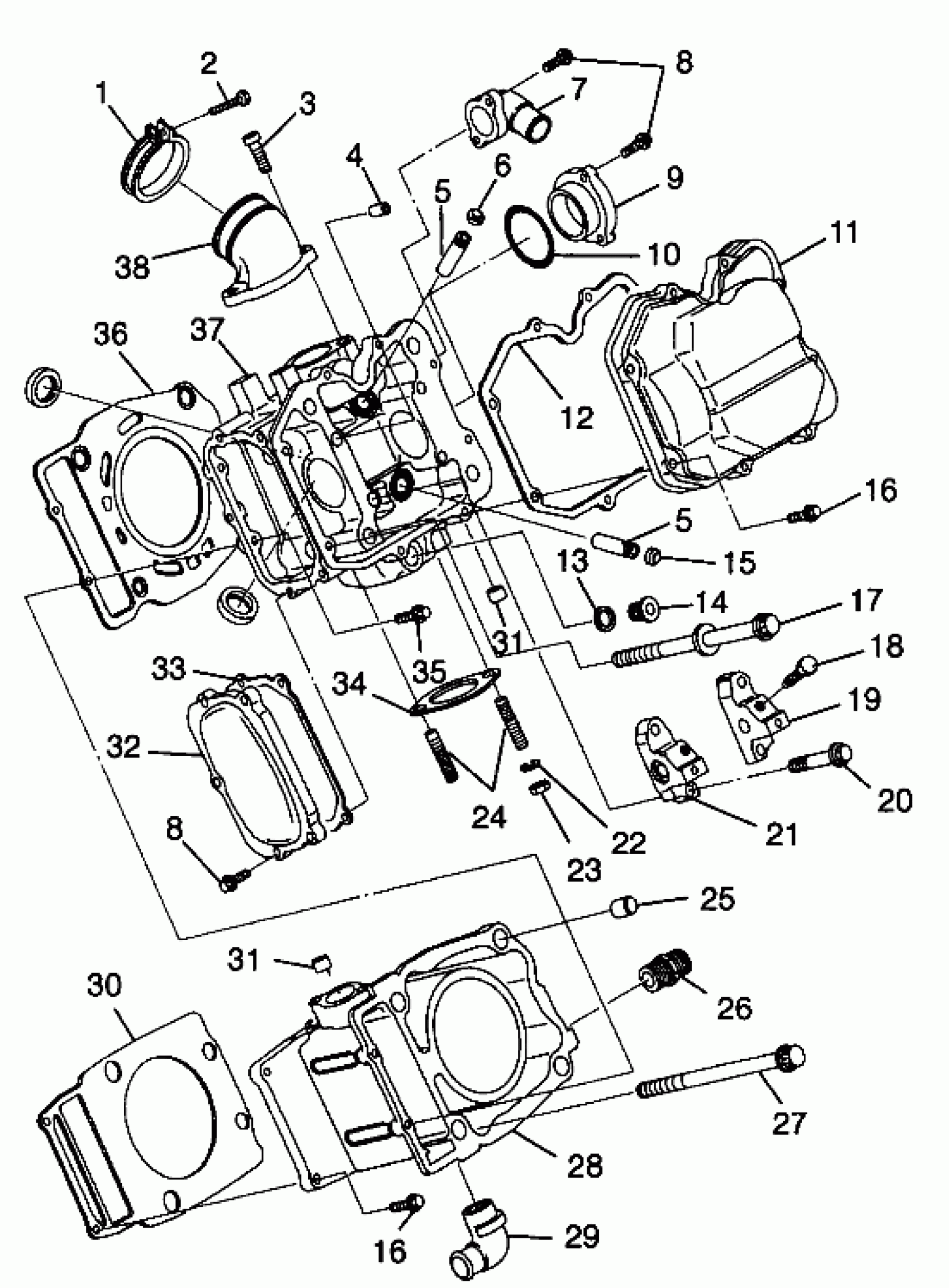

Polaris MAGNUM 4X4 - W98AC42A CYLINDER - W98AC42A (4945214521D004) Diagram

#

Description
Price

1

BAND ASM. (Incl. 2)

3083166

$19.84

2

SCREW,(10)

3081497

$2.38

3

Bolt, Allen

3081330

$3.97

4

PIN,STRAIGHT

3084857

Unavailable

5

GUIDE,VALVE

3084994

Unavailable

5

GUIDE,VALVE

3084994

Unavailable

6

SEAL,INTAKE VALVE

3084858

$13.75

7

ADAPTER,(WATER OUT) Substituted by 3084870

3085072

$64.75

8

BOLT,FLANGE(10)

3084877

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

9

ADAPTER,CAMSHAFT

3084866

Unavailable

10

O-RING

3084867

$24.27

11

COVER,ROCKER

3085073

$80.94

12

GASKET,(R.COVER)

3085074

$32.37

13

GASKET

3084861

$4.84

14

PLUG

3084860

$7.14

15

SEAL,EXHAUST VALVE

3084859

$24.27

16

BOLT, FLANGE

3084874

Unavailable

16

BOLT, FLANGE

3084874

Unavailable

17

BOLT

3084875

Unavailable

18

BOLT

3084880

Unavailable

19

SUPPORT,VALVE ROCKER

3084864

Unavailable

20

BOLT

3084876

$4.76

21

SUPPORT,VALVE ROCKER

3084863

$93.08

22

WASHER LOCK ,(10)

3080530

$3.17

23

NUT(10)

3080285

Unavailable

24

STUD,(10)

3085326

Unavailable

25

PIN,STRAIGHT

3084838

Unavailable

26

UNION,OIL PUMP

3084849

Unavailable

27

BOLT, FLANGE

3084873

Unavailable

28

CYLINDER Substituted by 3087062 (Incl. 29,31)

3085641

Unavailable

29

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

30

Gasket, Cylinder

3085370

$40.46

31

PLUG, BLIND

3084862

Unavailable

31

PLUG, BLIND

3084862

Unavailable

32

Cover, Camshaft

3084868

$60.70

33

GASKET Substituted by 3086200

3084869

Unavailable

34

GASKET,EXH.

3085075

$40.46

35

BOLT, FLANGE Substituted by 3086781

3084215

$4.76

36

GASKET,HEAD

3085337

$66.49

37

HEAD,CYLINDER * (Incl. 4-6,13-15,24,31)

3085527

$849.99

38

ADAPTER

3084879

Unavailable
