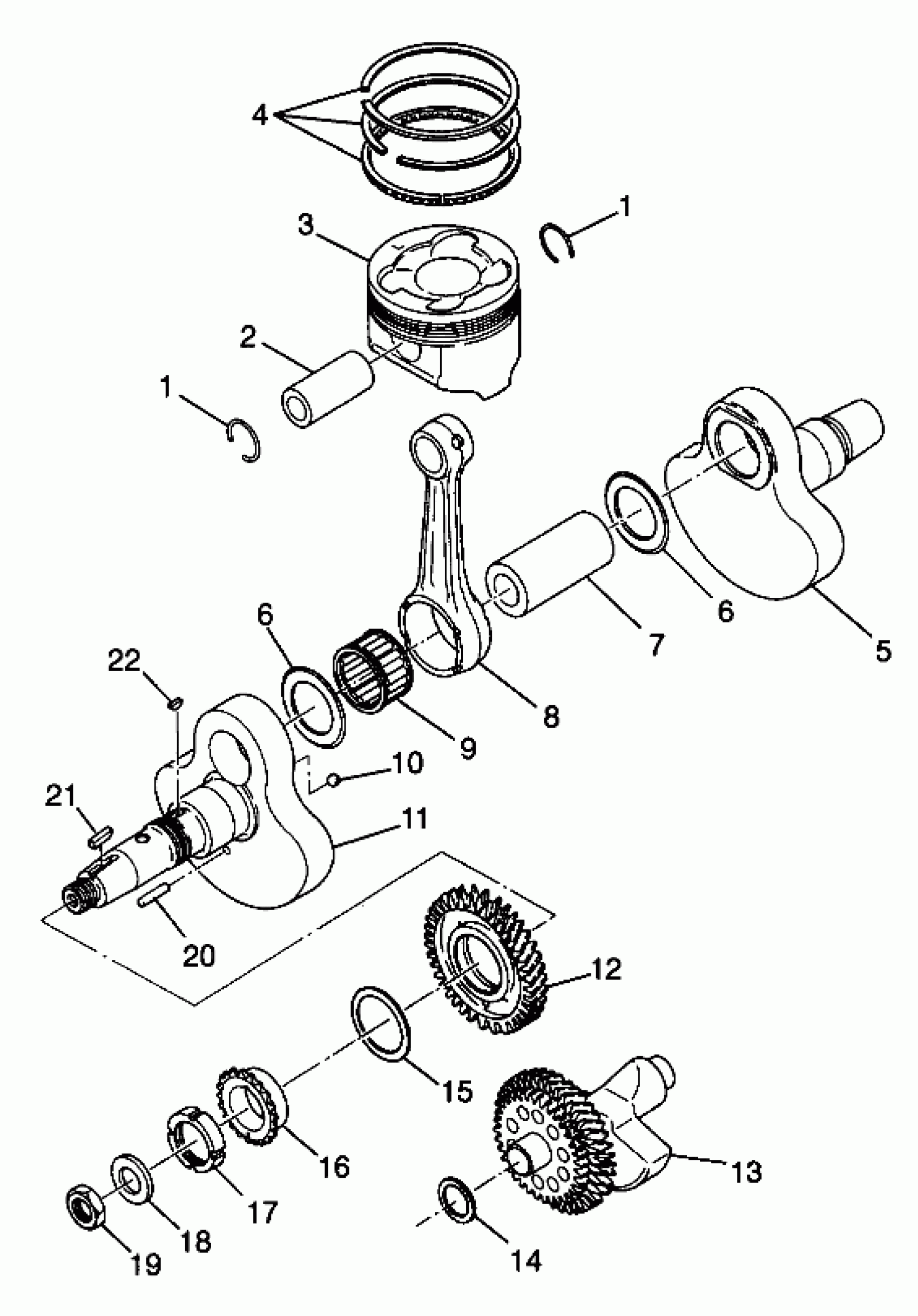

Polaris MAGNUM 4X4 - W98AC42A CRANKSHAFT and PISTON - W98AC42A (4945214521D005) Diagram

#

Description
Price

1

CLIP(10)

3085534

Unavailable

1

CLIP(10)

3085534

Unavailable

2

PIN,PISTON

3084886

Unavailable

3

PISTON,(STD) Substituted by 3085538 (Std) (Incl. 2)

3085642

Unavailable

3

PISTON,(0.25MM.O/S) Substituted by 3085539 (0.25 mm O/S) (Incl. 2)

3085643

Unavailable

3

PISTON,(0.50MM.O/S) Substituted by 3085540 (0.50 mm O/S) (Incl. 2)

3085644

Unavailable

4

PISTON-RING SET(STD) (Std)

3086488

Unavailable

4

PISTON-RING SET(0.25 O/S) (0.25 mm O/S)

3086489

Unavailable

4

PISTON-RING SET(0.50 O/S) (0.50 mm O/S)

3086490

Unavailable

5

CRANKSHAFT #2

3085340

$133.99

6

SPACER,CRANK PIN

3085344

$12.79

6

SPACER,CRANK PIN

3085344

$12.79

7

Pin, Crank

3085341

Unavailable

8

ROD,CONNECTING

3085342

Unavailable

9

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

10

BALL, STEEL

3085024

$5.59

11

CRANKSHAFT #1

3085339

$164.79

11

CRANKSHAFT (Incl. 5-12,20)

3084881

$774.99

12

GEAR,BALANCER #1 Substituted by 3085852

3085401

Unavailable

13

SHAFT,BALANCER *

3085404

Unavailable

14

SPACER (1.2)

3084897

$6.39

14

SPACER (0.8)

3084895

$6.39

14

SPACER (1.0)

3084896

$6.39

15

SPACER (1.2)

3084894

$19.99

15

SPACER (0.6)

3240088

$10.39

15

SPACER (1.0)

3084893

$19.99

15

SPACER (0.8)

3084892

$12.79

16

SPROCKET 1

3084882

Unavailable

17

NUT,SLIT

3085528

$35.99

18

WASHER Substituted by 3086767

3083904

Unavailable

19

LOCKNUT

3083905

Unavailable

20

Pin, Dowel

3085346

Unavailable

21

KEY

3081447

Unavailable

22

KEY Substituted by 3081543

3080130

Unavailable
