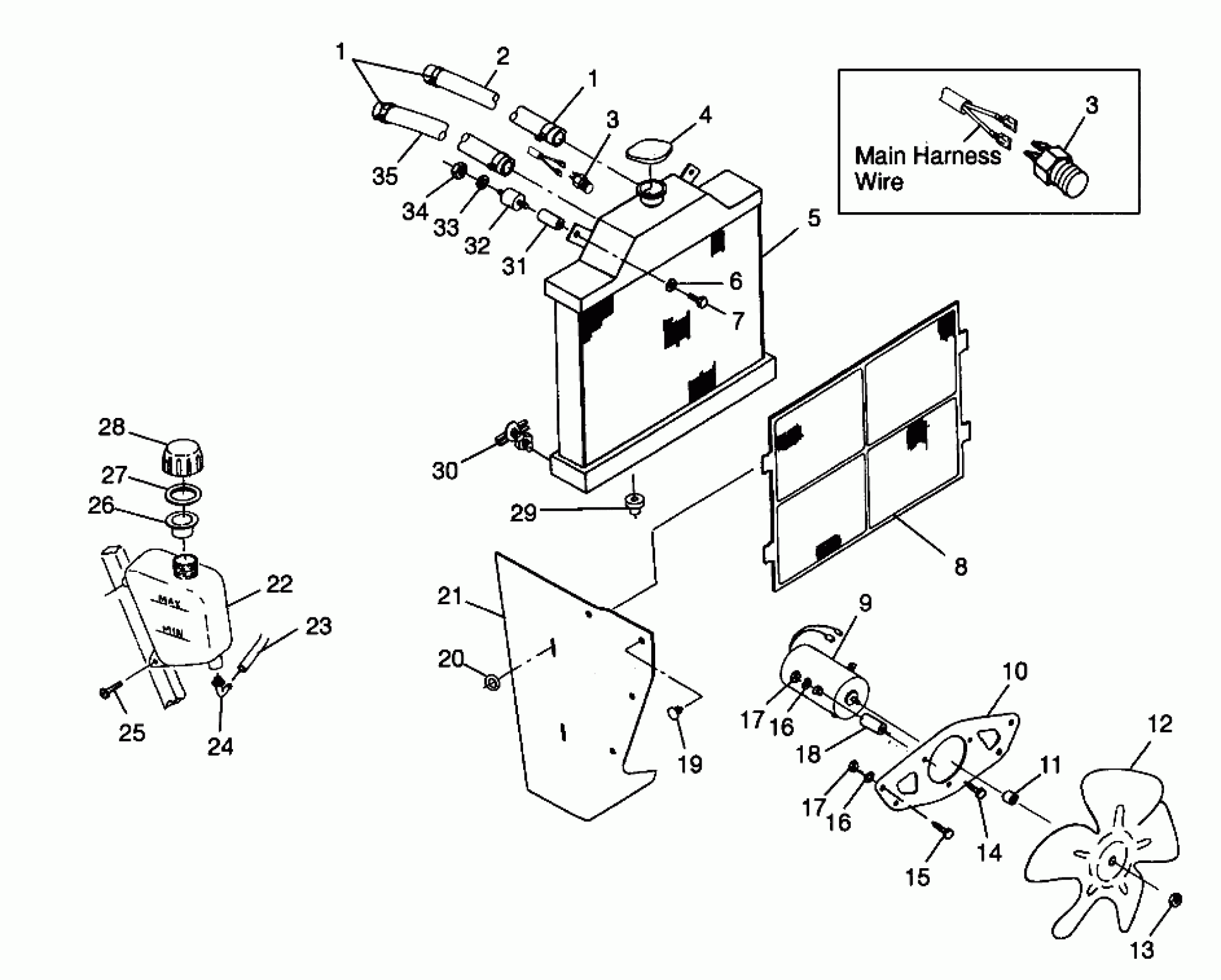

Polaris MAGNUM 4X4 - W98AC42A COOLING SYSTEM - N98AC42D (4945214521A011) Diagram

#

Description
Price

1

CLAMP,HOSE,(10)

7080614

$7.19

1

CLAMP,HOSE,(10)

7080614

$7.19

2

HOSE,CHAFE-PROTECTED

5411108

Unavailable

3

SWITCH,THERMAL,FAN,L/C

4110225

Unavailable

3

SWITCH,THERMAL,FAN,L/C

4110225

Unavailable

4

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

5

RADIATOR,"U"FLOW

1240015

Unavailable

6

WASHER(10)

7552605

$5.27

7

SCREW(10)

7512113

$3.99

8

COVER,RADIATOR,W/MESH

5431760

Unavailable

9

MOTOR,FAN,LQ,W/CONNECTOR (Incl. 11,13)

4170011

Unavailable

10

BRKT,FAN MOUNT,BLK

5241788-067

$7.43

11

SPACER

5333457

Unavailable

12

BLADE, FAN (See Footnote) NOTE: Red ID dot on fan blade to face fan motor.

5240822

$57.59

13

NUT

7542154

Unavailable

14

SCREW

7517221

$1.83

15

BOLT(10)

7512232

$1.49

16

WASHER, FLAT(10)

7558201

$5.79

16

WASHER, FLAT(10)

7558201

$5.79

17

Nut

7547004

$4.79

17

Nut

7547004

$4.79

18

SPACER,FAN BRKT.

5432294

$3.99

19

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

20

O RING

5410607

$5.99

21

SHIELD,LH,RADIATOR SIDE

5431829

$73.25

21

SHIELD,RH,RADIATOR SIDE

5431830

Unavailable

22

Tank, Surge

5431673

Unavailable

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

24

FITTING,90 DEGREE

7052065

$7.19

25

SCREW(10)

7512084

$1.49

26

PLUG,CAP Substituted by 5433774

5431895

Unavailable

27

GASKET-OVERFLOW CAP

5810279

$2.41

28

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

29

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

30

VALVE,DRAIN COCK

7052181

Unavailable

31

Spacer, Mount

5020572

$8.79

32

Mount, Rubber

3110032

$7.99

33

WASHER(10)

7558301

$1.49

34

NUT-LOCK(10)

7542122

$1.49

35

HOSE,WATER,305 CM.

8450050-305

Unavailable
