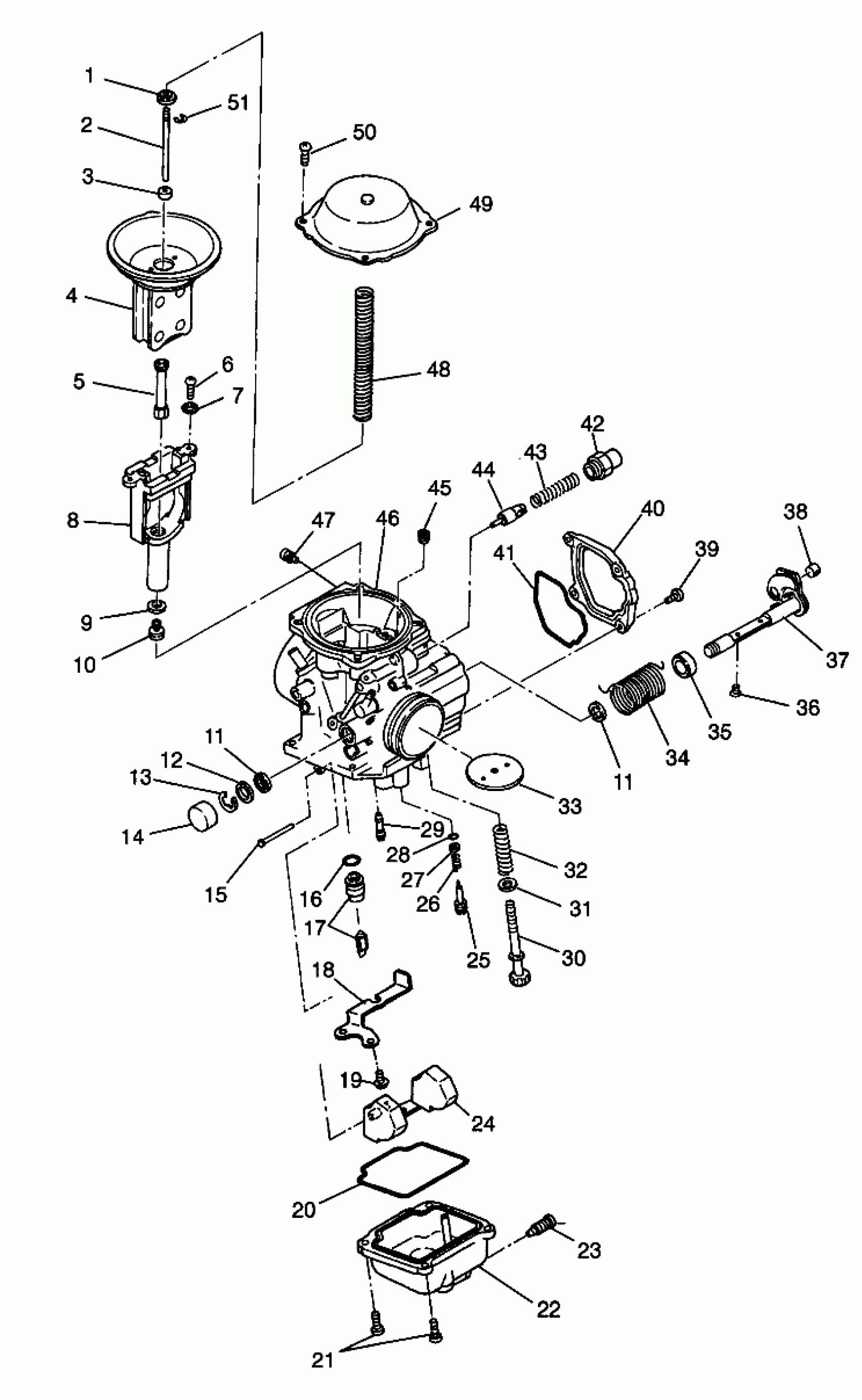

Polaris MAGNUM 4X4 - W98AC42A CARBURETOR - W98AC42A (4945214521D011) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

JET NEEDLE,(J8-5F14) (5F81-3)

3130730

Unavailable

3

RING

3130752

$5.59

4

DIAPHRAGM ASM.

3130732

$123.99

5

NEEDLE JET,(P-9) (P-9)

3130731

Unavailable

6

SCREW

3130541

$11.19

7

WASHER,SPRING

3130540

$4.79

8

JETBLOCK ASM.

3130504

$59.99

9

WASHER (10)

3130014

$1.59

10

MAIN JET,#140 (#140)

3130527

$8.08

11

SEAL

3130515

$11.99

11

SEAL

3130515

$11.99

12

PACKING

-------

Unavailable

13

E-RING

3130518

$1.59

14

CAP

3130519

$10.39

15

PIN, FLOAT

3130361

$8.89

16

O-RING

3130533

$5.59

17

VALVE,NEEDLE,(1.5) Substituted by 3130531 (1.5)

3130668

Unavailable

18

PLATE

3130594

$27.99

19

SCREW

3130591

$3.99

20

O-RING

3130532

$31.99

21

SCREW

3130520

$1.59

22

FLOATBODY ASM.

3130590

$103.99

23

SCREW

3130521

$10.39

24

FLOAT ASM.

3130529

$79.99

25

Adjuster

3130524

$23.99

26

Spring

3130525

$4.79

27

Washer

3130523

$2.39

28

O-Ring

3130522

$5.65

29

JET,PILOT,#40 (#40)

3130624

$23.99

30

SCREW, ADJ.

3130546

$13.59

31

Ring

3130545

$12.13

32

Spring

3130544

$9.59

33

VALVE,THROTTLE (100)

3130502

$47.99

34

SPRING

3130589

$23.99

35

Ring

3130514

$7.19

36

SCREW

3130501

$3.99

37

SHAFT ASM,THROTTLE

3130513

$79.99

38

GUIDE,CABLE

3130543

$27.99

39

SCREW

3130535

$7.19

40

COVER

3130511

$43.99

41

O-Ring

3130512

$39.99

42

HOLDER,GUIDE

3130199

$28.32

43

SPRING

3130538

$4.79

44

PLUNGER ASM. Substituted by 3130539

3130593

$34.74

45

JET,AIR,#160 (#160)

3130625

$13.59

46

CARBURETOR ASM. Substituted by 3130724 (Incl. 1-50)

3130753

Unavailable

47

SCREW & WASHER(10)

3084205

$3.99

48

SPRING

3130505

$23.99

49

Cover

3130503

$63.99

50

SCREW-MIKUNI C2=0408

3130592

Unavailable

51

E-RING,(10)

3130508

$6.46
