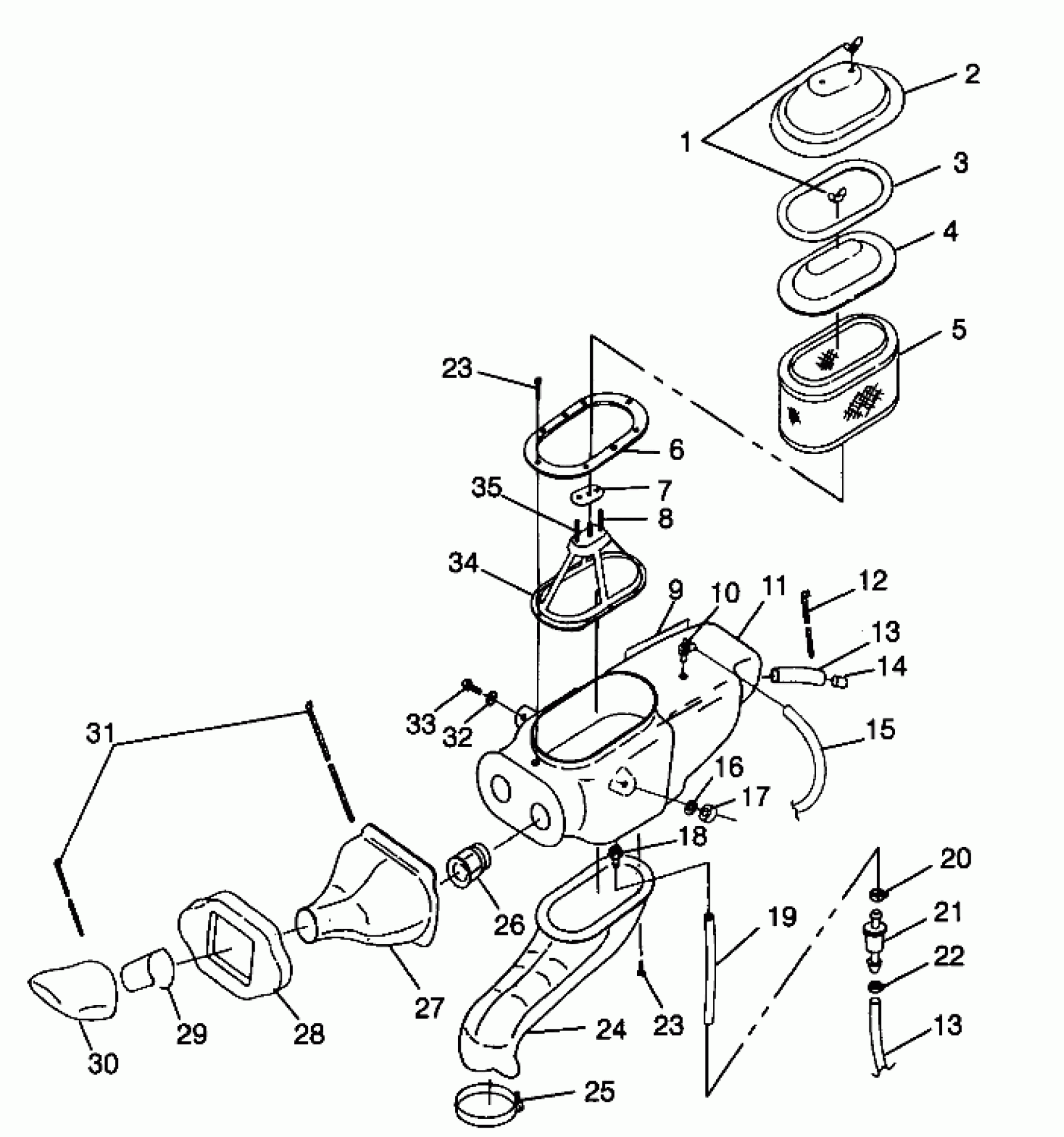

Polaris MAGNUM 4X4 - W98AC42A AIR BOX - N98AC42D (4945214521B001) Diagram
#
Description
Price
1
NUT,WING(10)
7542127
$1.49
2
COVER,AIR BOX
5240424
Unavailable
3
GASKET,COVER
5810948
Unavailable
4
COVER, AIR BOX
5240336
Unavailable
5
FILTER,AIR
1253118
$27.99
6
PLATE,AIR BOX
5211804
Unavailable
7
SEAL,FOAM,AIRBOX
5811012
Unavailable
8
STUD(10)
7515151
Unavailable
9
FOIL,AIR BOX
5811141
Unavailable
10
FITTING
7052164
$7.19
11
SILENCER,AIR,(MAGNUM)
5432691
Unavailable
12
STRAP, PANDUIT,4 IN.(10)
7080483
Unavailable
13
HOSE,BREATHER,28CM
5411362
Unavailable
13
HOSE,BREATHER,28CM
5411362
Unavailable
14
CAP, PLUG(10)
7080487
$1.67
15
LINE,BREATHER,SPECIAL
5411321
$23.19
16
WASHER(10)
7555893
$1.49
17
INSULATOR
5431863
$3.99
18
Fitting
7052163
Unavailable
19
LINE,BREATHER,3/8 ID.
8450073-600
Unavailable
20
CLAMP,HOSE(10)
7080544
Unavailable
21
FILTER,BREATHER,IN LINE
2530029
$6.39
22
CLAMP,HOSE
7080699
$1.59
23
SCR-#8X.625,SELF TAP-PH/PN-ZTB
7511881
$1.49
23
SCR-#8X.625,SELF TAP-PH/PN-ZTB
7511881
$1.49
24
BOOT,CARB.INTAKE
5410831
Unavailable
25
CLAMP,BAND,NARROW
7080656
Unavailable
26
VENTURA,INTAKE
5431698
Unavailable
27
BOOT,AIR SILENCER
5410829
Unavailable
28
FOAM, SEAL
5810988
$27.99
29
SUPPORT,WIRE FRAME
5224553
Unavailable
30
FOAM, AIR FILTER (10)
5810444
$11.99
31
STRAP, CABLE(10)
7080598
Unavailable
32
WASHER(10)
7558301
$1.49
33
SCREW(10)
7515180
Unavailable
34
STAND,FILTER
5432607
$39.99
35
STUD(10)
7515150
Unavailable
