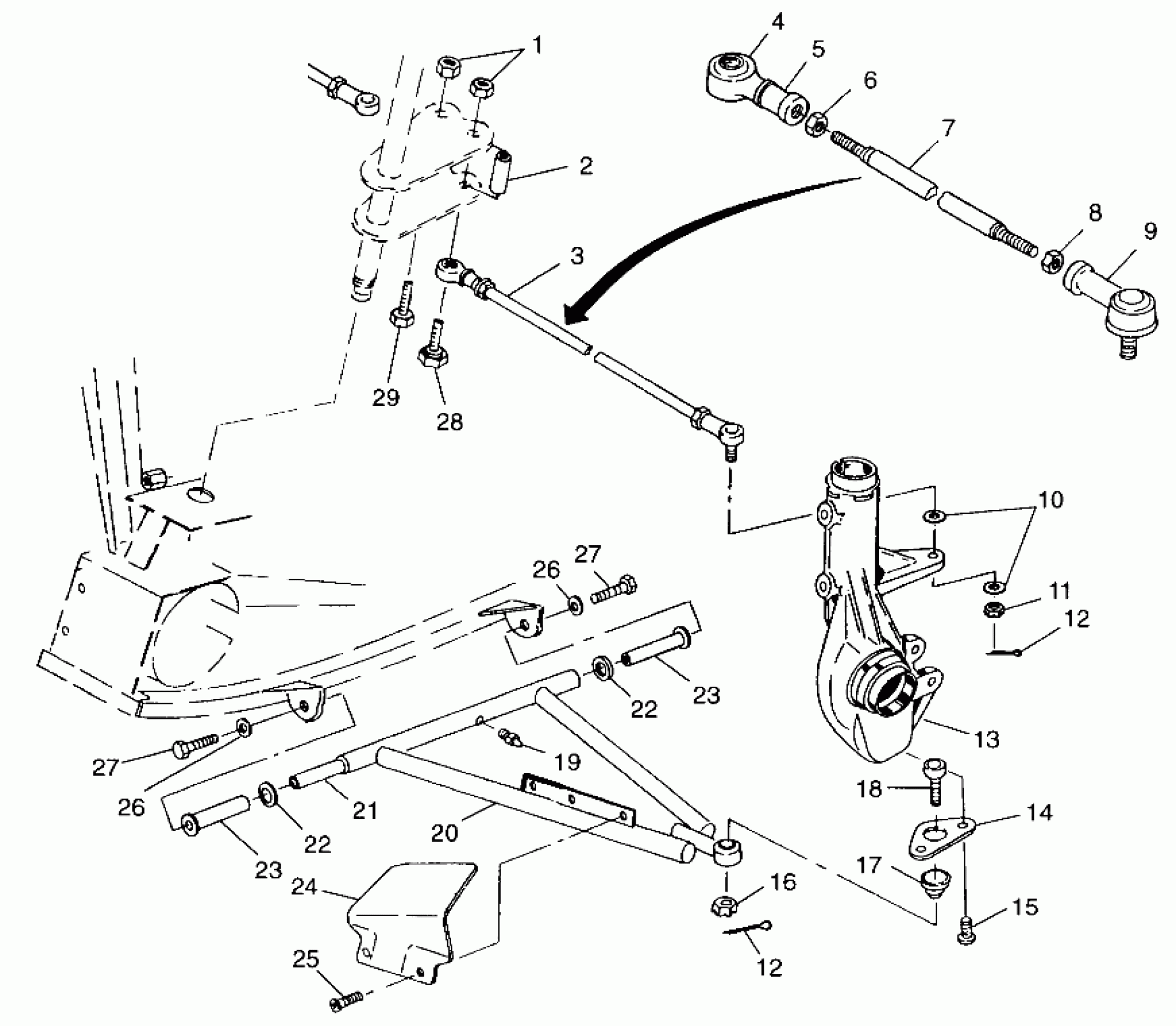

Polaris MAGNUM 4X4 - W98AC42A A-ARM/STRUT MOUNTING - W98AC42A (4945214521B011) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BUSHING

5333367

$6.63

3

TIEROD ASM,1/2-20X13.40 Substituted by 2201741 (Incl. 4-9)

1820567

$157.84

4

SEAL,BOOT,ROD END,1/2 IN

5411291

Unavailable

5

ROD END,RH

7061034

$54.04

6

NUT-JAM(10)

7542711

$2.39

7

ROD,TIE

5020926

$39.99

8

NUT,LH,JAM(10)

7547028

$2.39

9

ROD END,LH Substituted by 2201743

7061033

$56.65

10

WASHER(10)

7555806

$1.49

11

NUT, CASTLE(10)

7546904

$4.79

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

Asm., Hubstrut (See Front Strut Page B2, Ref. 16)

-------

Unavailable

14

BRACKET-BALL JOINT

5211121

$31.99

15

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

16

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

17

Boot, Rubber

5410548

Unavailable

18

BALLJOINT,HI-ANGLE Substituted by 7080927

7080673

$76.89

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

20

KIT,A-FRAME,LH (Incl. 12,20-23,26,27)

2200627

$123.70

20

KIT,A-FRAME,RH (Incl. 12,20-23,26,27)

2200628

$123.70

21

Shaft, A-Arm

5020681

Unavailable

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

23

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

23

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

24

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

24

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

25

SCREW(10)

7512084

$1.49

26

WASHER(10)

7552603

$1.49

26

WASHER(10)

7552603

$1.49

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

28

BOLT (10)

7517527

$29.99

29

BOLT(10)

7515415

$1.49
