STEERING - HANDLEBAR Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and N (4940834083B007)

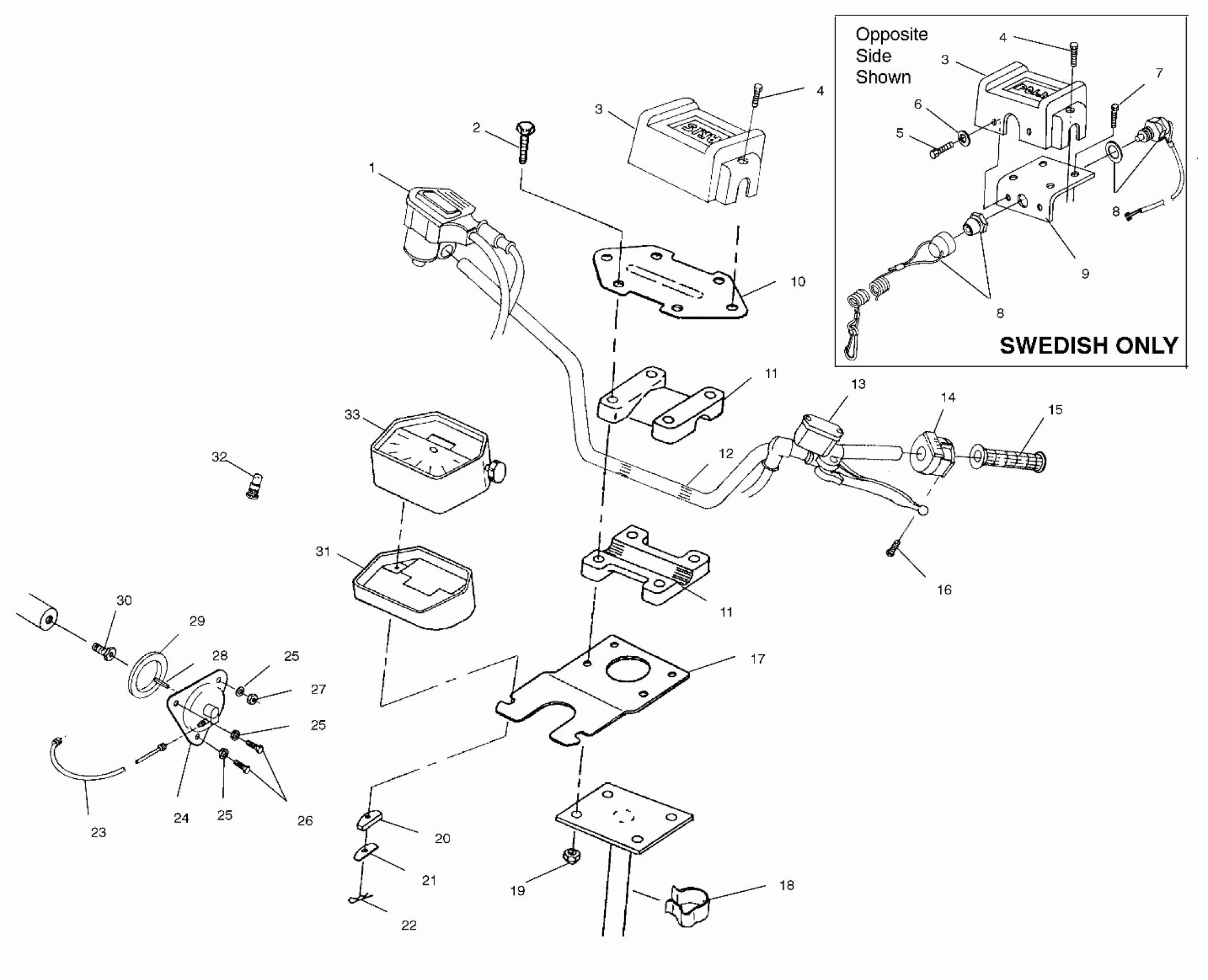

Polaris MAGNUM 4X4 - W97AC42A STEERING - HANDLEBAR Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and N (4940834083B007) Diagram
#
1
Asm., Throttle Control (See Pg., Ref.)
-------
Unavailable
2
SCREW(10)
7515188
$2.39
3
PAD, HANDLEBAR (US) (NOR)
5810379
$40.46
3
PAD,H'BAR,SCAN (SWED)
5811366
$40.46
3
PAD, HANDLEBAR (US) (NOR)
5810379
$40.46
3
PAD,H'BAR,SCAN (SWED)
5811366
$40.46
4
SCREW(10)
7515197
$1.49
4
SCREW(10)
7515197
$1.49
5
SCR-#8X.625,SELF TAP-PH/PN-ZTB (SWED)
7511881
$1.49
6
WASHER(10) (SWED)
7555783
$3.99
7
SCREW Substituted by 7517216 (SWED)
7517225
Unavailable
8
SW,TETHER,(SWED.MAG) (SWED)
4110249
Unavailable
8
SW,TETHER,(SWED.MAG) (SWED)
4110249
Unavailable
9
BRKT,TETH.SWITCH,BLK (SWED)
5241774-067
$5.75
10
MOUNT,HDLBR. PAD Substituted by 5245051
5220946
$5.71
11
KIT,H'BAR BLOCK (Incl. 2, 11, 19)
2200774
Unavailable
11
BLOCK,H'BAR RETAINER,BLK
5630616-067
Unavailable
11
KIT,H'BAR BLOCK (Incl. 2, 11, 19)
2200774
Unavailable
11
BLOCK,H'BAR RETAINER,BLK
5630616-067
Unavailable
12
TUBE,HDLBR,BLACK Substituted by 5242988-067
5224316-067
Unavailable
13
Asm., Master Cylinder (See Pg. for Details)
-------
Unavailable
14
SWITCH,LH,H'BAR,H/L/O
4110205
Unavailable
15
GRIP, HANDLEBAR
5431030
$24.27
16
SCREW
2010055
Unavailable
17
BRACKET,SPEEDO
5222269-067
$15.67
18
CLIP(10)
7080278
$2.63
19
NUT(10)
7542124
Unavailable
20
SPACER,SPEEDO.MTG.
5810442
$10.99
21
PLATE,MTG,(SPEEDO)
5211189
$12.99
22
HAIRPIN, COTTER(10)
7660701
$1.99
23
CABLE,SPEEDO.
3280216
Unavailable
24
ADAPTER,DRIVE,(1:1.34)
3280220
Unavailable
24
ADAPTER,DRIVE,(1:1.55) (NOR)
3280221
Unavailable
25
WASHER(10)
7555725
Unavailable
25
WASHER(10)
7555725
Unavailable
25
WASHER(10)
7555725
Unavailable
26
BOLT(10)
7515378
$1.98
27
NUT-5/16-18 NYLOK-Y
7542324
$1.49
28
KEY,SPEEDO.DRIVE
3280217
Unavailable
29
SEAL, ANGLE DRIVE
3280164
Unavailable
30
BUSHING, SPEEDOMETER DRIVE
5020741
$9.03
31
MOUNT, SPEEDOMETER
5410546
Unavailable
32
Bulb, Taillight
4030015
$4.03
33
SPEEDOMETER, MPH (US)
3280129
Unavailable
33
SPEEDOMETER, KILOMETER (SWED)(NOR)
3280135
$131.99
