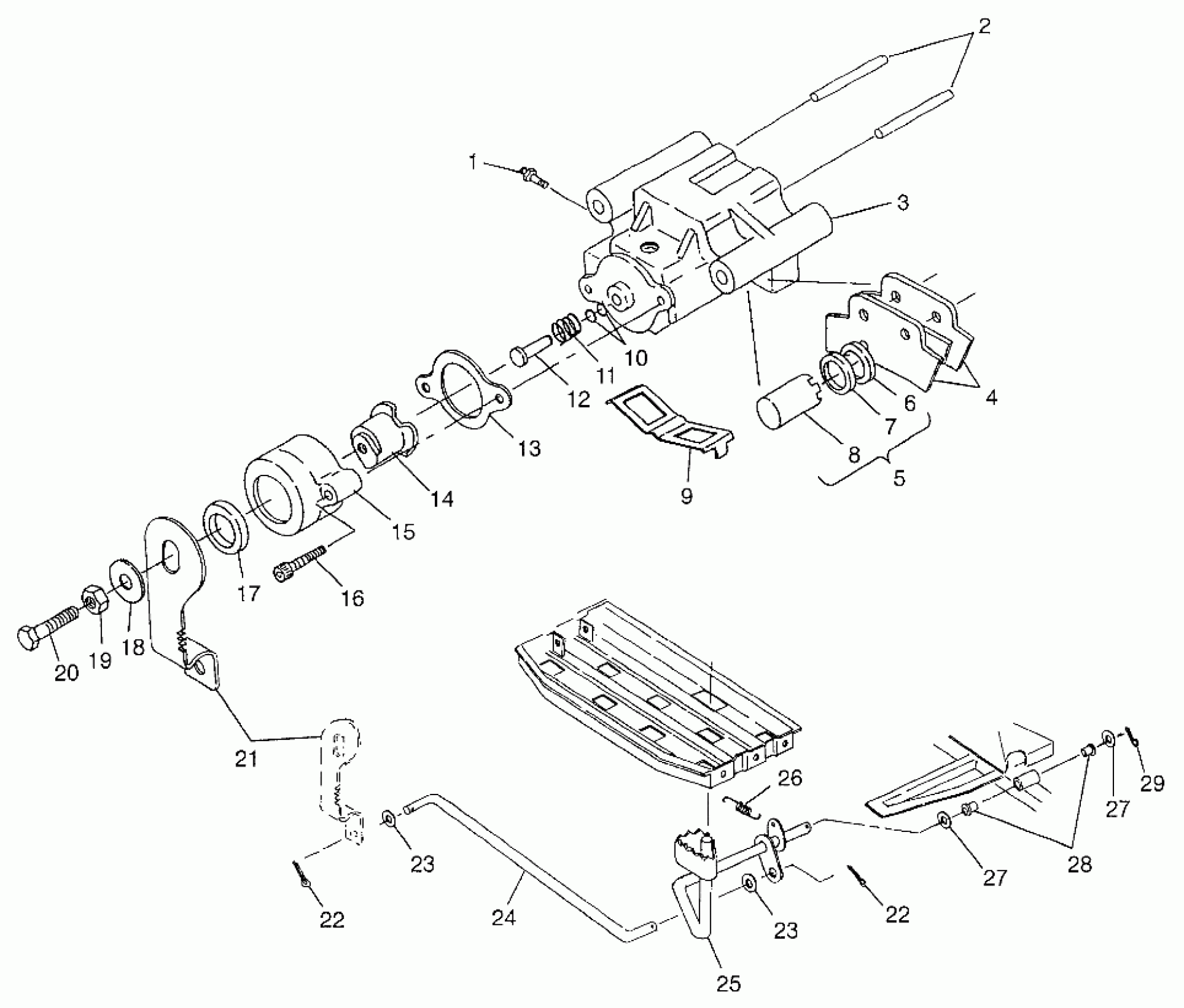

Polaris MAGNUM 4X4 - W97AC42A REAR BRAKE Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and Norwegian M (4940834083C005) Diagram

#

Description
Price

1

SCREW,BLEEDER

7080352

$3.19

2

PIN, DOWEL(10)

7661820

$13.99

3

CALIPER,R.BRAKE,MACH

5131272

Unavailable

4

KIT,BRAKEPAD,REAR

2200464

$31.99

4

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

5

KIT-PISTON & SEAL (Incl. 6 - 8)

2200463

$87.99

6

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$11.99

7

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

Unavailable

8

PISTON, CALIPER Substituted by 5132294

5020506

Unavailable

9

SPRING,ANTI-RATTLE

5240993

Unavailable

10

O RING-.364X.504X.07

5410542

Unavailable

11

SPRING,BRAKE,COMP.

7041219

$24.99

12

PIN,BRAKE CALIPER

5020666

Unavailable

13

GASKET, BRAKE

5830009

$9.99

14

RAMP,MOVE.BRAKE(D/C)

5630651

Unavailable

15

RAMP,STAT.BRAKE(D/C)

5630652

Unavailable

16

SCREW(10)

7512173

Unavailable

17

SEAL, BRAKE

3610026

$7.99

18

WASHER, SPRING(10)

7555828

Unavailable

19

NUT(10)

7542129

$4.79

20

BOLT

7515145

Unavailable

21

ARM,BRAKE CALIPER (US)

5240624

Unavailable

21

ARM,BRAKE,CALIPER (SWED) (NOR)

5222984

Unavailable

22

PIN COTTER(10)

7661203

$1.49

22

PIN COTTER(10)

7661203

$1.49

23

WASHER(10)

7555806

$1.49

23

WASHER(10)

7555806

$1.49

24

ROD, BRAKE

5224531

$51.99

25

FOOTBRAKE,BLK.

1910144-067

Unavailable

26

WASHER(10)

7555919

$4.99

27

BUSHING-PEDAL PIVOT

5431107

$8.79

27

BUSHING-PEDAL PIVOT

5431107

$8.79

28

COTTER PIN(10)

7661401

$1.49

29

SPRING-EXHAUST(10)

7042029

$4.84
