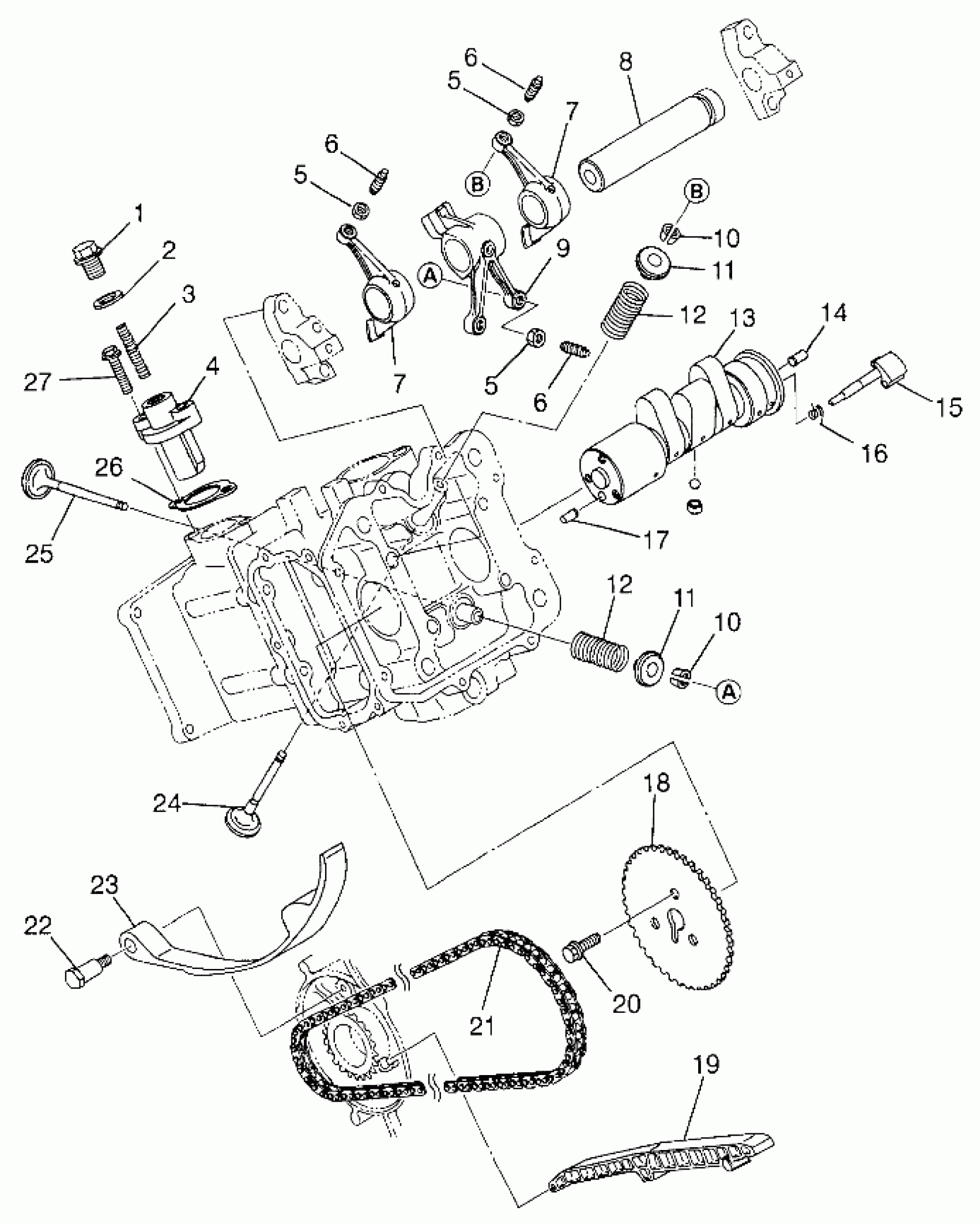

Polaris MAGNUM 4X4 - W97AC42A INTAKE and EXHAUST Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and Nor (4940834083D001) Diagram

Description

Price

PLUG

3084845

Unavailable

Gasket, Plug

3084920

Unavailable

SPRING,TENSIONER

3084919

Unavailable

TENSIONER ASM. (Incl. 1-3)

3084918

Unavailable

NUT(10)

3084912

$3.97

NUT(10)

3084912

$3.97

NUT(10)

3084912

$3.97

SCREW, ADJ.

3084911

$9.52

SCREW, ADJ.

3084911

$9.52

SCREW, ADJ.

3084911

$9.52

ROCKERARM ASM,INTAKE * (Incl. 5, 6)

3084910

$125.46

ROCKERARM ASM,INTAKE * (Incl. 5, 6)

3084910

$125.46

SHAFT,ROCKER

3084909

$52.60

ROCKERARM ASM,EXHAUST * (Incl. 5, 6)

3084913

$166.24

COLLET,VALVE

3084908

$4.84

COLLET,VALVE

3084908

$4.84

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

SPRING,VALVE Substituted by 3086892

3084906

$28.32

SPRING,VALVE Substituted by 3086892

3084906

$28.32

CAMSHAFT Substituted by 3086212 (Incl. 14-17)

3084898

$379.99

PIN, DOWEL Substituted by 3086838

3080103

$7.14

LEVER, RELEASE

3085348

Unavailable

SPRING,RETURN

3085076

Unavailable

PIN,DOWEL

3084899

$7.14

SPROCKET 2

3084914

Unavailable

GUIDE,CHAIN

3084916

Unavailable

BOLT&WASHER ASM.

3081657

$4.76

CHAIN, TIMING *

3084915

$101.17

BOLT,PIVOT,LEVER

3084924

Unavailable

LEVER

3084917

Unavailable

VALVE,INTAKE

3085349

$68.79

VALVE,EXHAUST Substituted by 3085412

3084905

$93.08

GASKET,TENSIONER

3084922

Unavailable

BOLT, FLANGE

3084874

Unavailable
