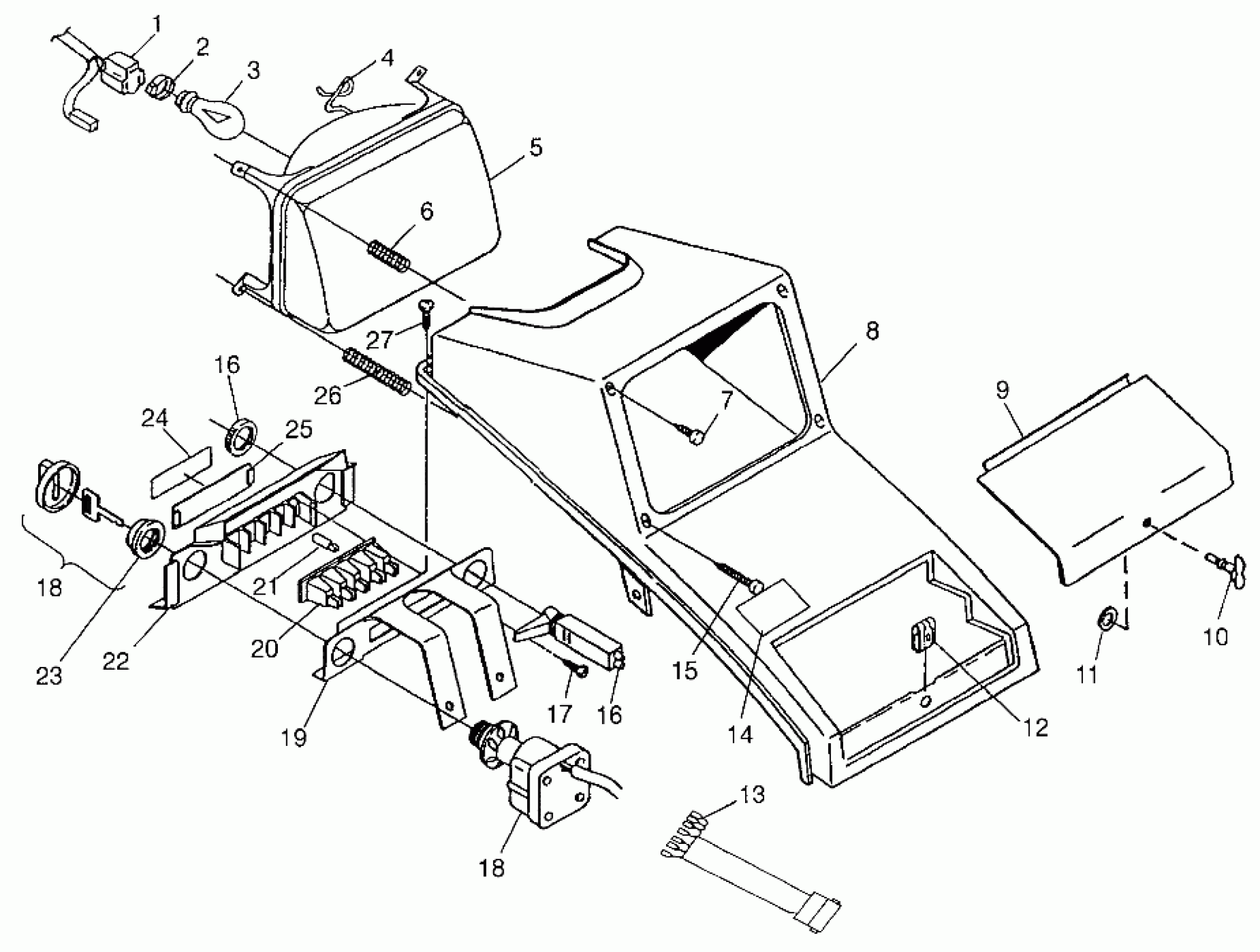

Polaris MAGNUM 4X4 - W97AC42A HEADLIGHT Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and Norwegian M (4940834083C007) Diagram

Harness, Main Wire (See Pg., Ref.)

-------

Unavailable

COVER,SOCKET,H/L.

4032066

Unavailable

BULB, H/L

4030028

$29.99

RETAINER,H/L BULB

4032063

Unavailable

H/L ASM,W/BULBSEAL (US) (SWED)

4032065

Unavailable

SPRING-ADJ

4032002

Unavailable

SCREW, ADJ.(10)

4032003

Unavailable

COVER,H/L,GRY.

5431861-132

Unavailable

DOOR,ACCESS,GRAY,STG.

5431201-132

Unavailable

FASTENER, 1/4 TURN(10)

7670064

$6.23

RING,SPLIT RETAINER(10)

7670065

$1.99

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

HARNESS,INDIC.MAG,W/CON

2460613

$17.43

LABEL, 'U.S.A.'

7073024

Unavailable

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

KIT-CHOKE CONTROL

2200188

$24.27

CABLE, CHOKE

7080528

Unavailable

KIT-CHOKE CONTROL

2200188

$24.27

CABLE, CHOKE

7080528

Unavailable

SCREW, SEM(10)

7511862

$6.99

SWITCH,IGN.W/ CON NOTE: Ignition key may be ordered by using the 4 digit number on the ignition key.

4110209

Unavailable

SWITCH,IGN.W/ CON NOTE: Ignition key may be ordered by using the 4 digit number on the ignition key.

4110209

Unavailable

BRKT, IGN. PANEL

5220965-067

Unavailable

STRIP, SOCKET

4032037

$27.19

BULB

4030042

Unavailable

PANEL, IGNITION

5430995

Unavailable

NUT,IGN.SWITCH

5432090

Unavailable

DECAL, PANEL [No Longer Available]

7072528

Unavailable

LENS ASM,PILOT LIGHT (Incl. 24)

2652049

Unavailable

SPRING,ADJ.

4032041

Unavailable

SCREW(10)

7512017

$4.79
