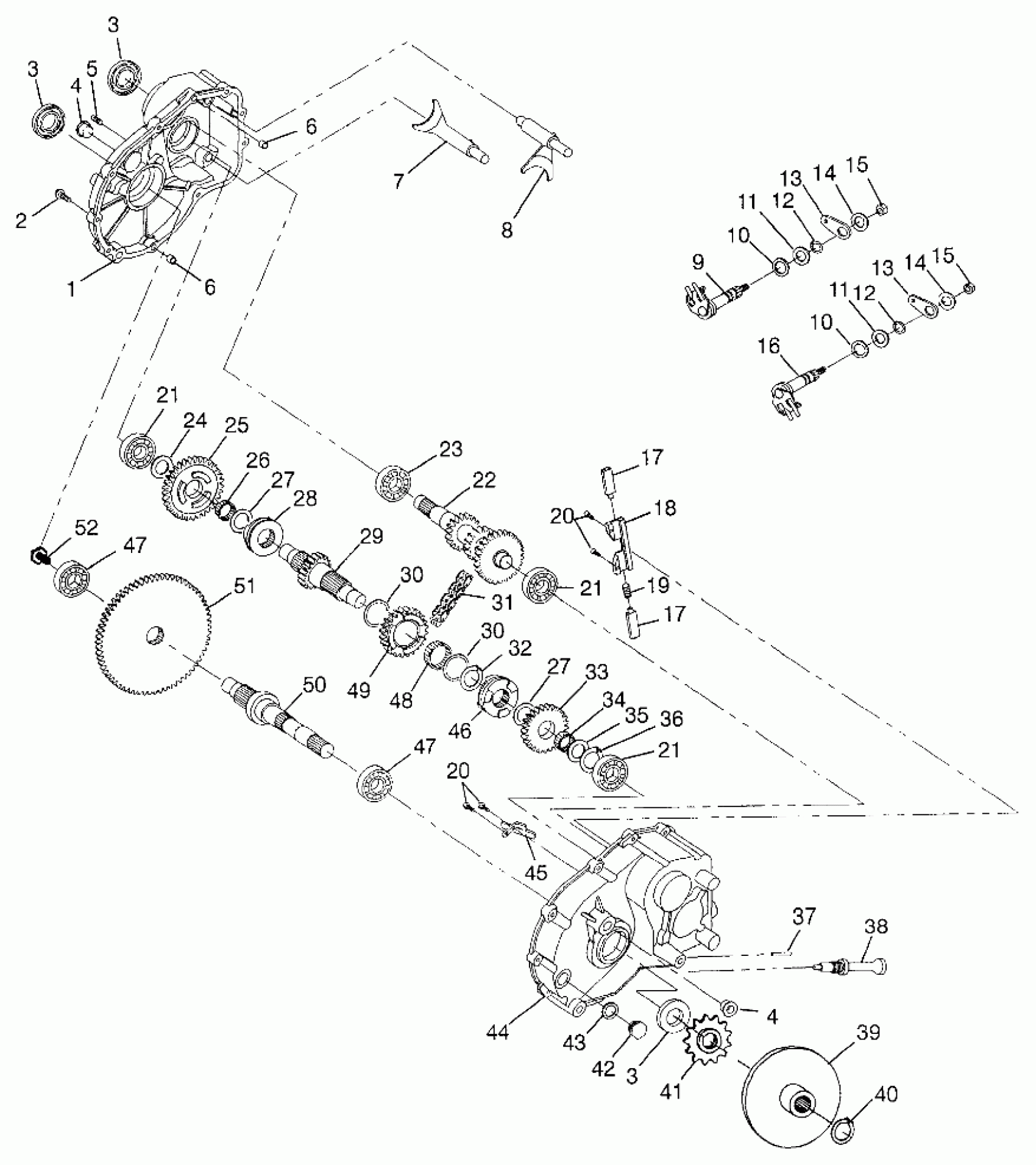

Polaris MAGNUM 4X4 - W97AC42A GEARCASE Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and Norwegian Ma (4940834083C009) Diagram

#

Description
Price

-

GEARCASE ASM,MAGNUM 4WD,HCR (Incl. 1-38, 42-52) (US) (SWED)

1341184

Unavailable

-

GEARCASE ASM,(NOR.)MAG. (Incl. 1-38, 42-52) (NOR)

1341155

Unavailable

1

CASE, LH

3233002

Unavailable

2

Screw

3233026

$6.46

3

Seal

3233248

$32.37

3

Seal

3233248

$32.37

3

Seal

3233248

$32.37

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

7

SHIFTRAIL,LOW

3233022

Unavailable

8

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

9

SHAFT,LOW SHIFT

3233151

$51.59

10

O-RING Substituted by 3233548

3233044

$33.24

10

O-RING Substituted by 3233548

3233044

$33.24

11

Washer

3233040

$9.52

11

Washer

3233040

$9.52

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

13

Bellcrank

3233153

$32.37

13

Bellcrank

3233153

$32.37

14

Washer

3233054

$6.46

14

Washer

3233054

$6.46

15

Nut

3233055

$3.32

15

Nut

3233055

$3.32

16

SHAFT,HIGH/REV.SHIFT

3233152

Unavailable

17

PIN

3233031

$32.11

17

PIN

3233031

$32.11

18

BRACKET

3233030

$21.27

19

Spring

3233032

$13.75

20

SCREW Substituted by 3233747

3233033

Unavailable

20

SCREW Substituted by 3233747

3233033

Unavailable

21

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

21

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

21

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

22

SHAFT,INPUT,31T,HCR

3233361

Unavailable

23

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

24

WASHER

3233007

Unavailable

25

GEAR, 33T

3233125

Unavailable

26

BEARING,NEEDLE

3233009

$39.68

27

Washer

3233010

Unavailable

27

Washer

3233010

Unavailable

28

DOG,ENGAGEMENT,LOW

3233126

Unavailable

29

SHAFT,REV,29T,HCR

3233362

$146.85

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

CHAIN,SILENT,34P (11W)

3233036

Unavailable

32

RING,RETAINING

3233029

Unavailable

33

GEAR,30T,HCR

3233359

Unavailable

34

BEARING,NEEDLE

3233017

$35.71

35

Washer

3233176

$9.52

36

RING,RETAINING

3233177

$6.46

37

Vent

3233037

Unavailable

38

DIPSTICK Substituted by 3233478

3233115

$28.32

39

Brake Disc. ATV (See Pg., Ref.)

----

Unavailable

40

RING,SNAP(10)

7710434

$3.97

41

SPKT, 12T

3221044

$44.51

42

Plug

3233448

$23.81

43

Washer

3233035

Unavailable

44

CASE, RH

3233003

Unavailable

45

DEFLECTOR,OIL

3233043

$13.10

46

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

47

BEARING

3233020

$47.62

47

BEARING

3233020

$47.62

48

BEARING, NEEDLE

3233014

$43.65

49

SPROCKET, 24T

3233127

Unavailable

50

SHAFT,OUTPUT

3233150

Unavailable

51

GEAR,O/P,100T,HCR

3233360

Unavailable

52

BUSHING,SPEEDO.DRIVE

5020741

$8.97
