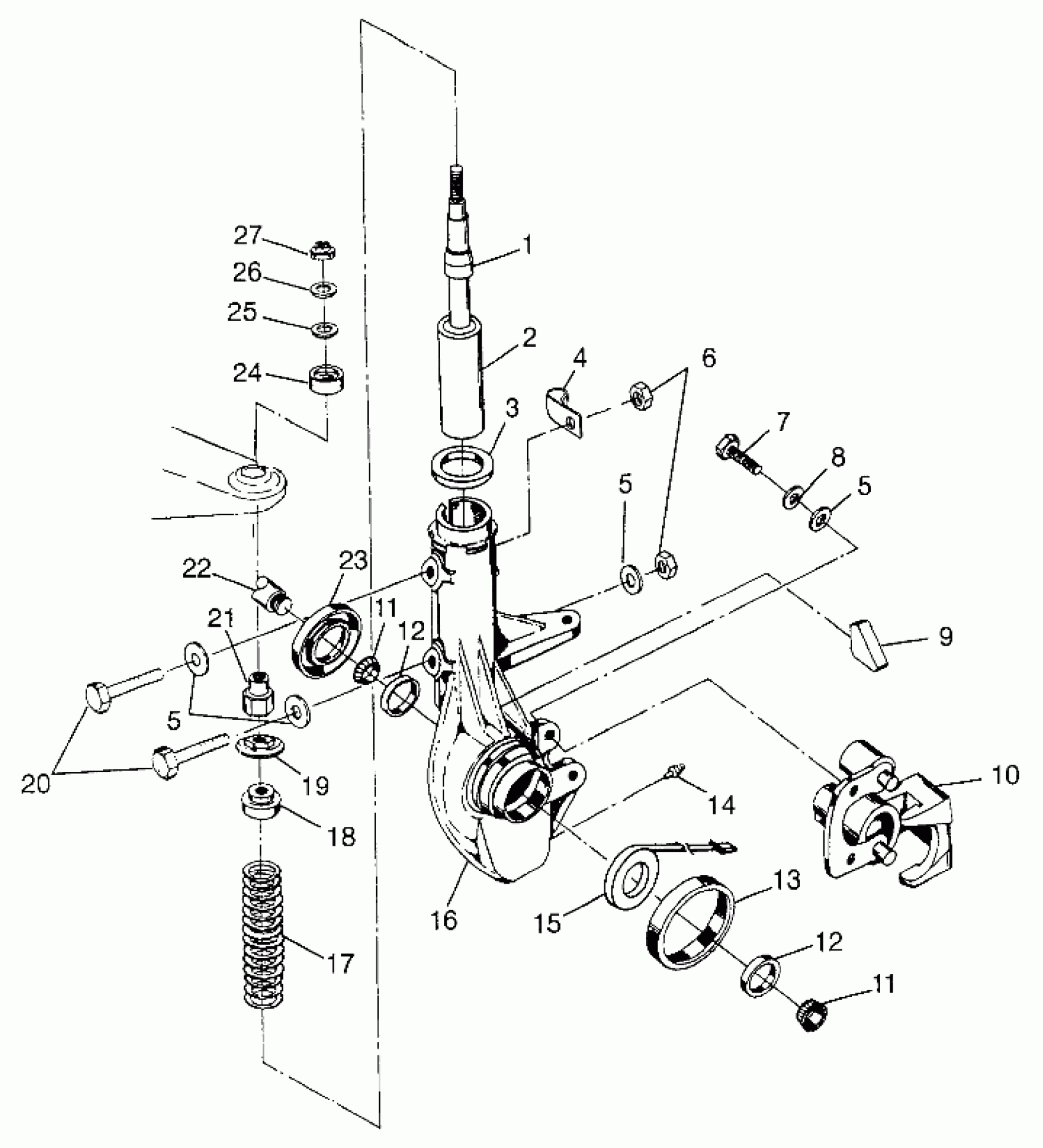

Polaris MAGNUM 4X4 - W97AC42A FRONT STRUT Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and Norwegian (4940834083B002) Diagram

BUMPER, STRUT Substituted by 5411468

5410791

Unavailable

STRUT,FRONT,32MM. Substituted by 7041755

7041374

Unavailable

WASHER-2.06X2.62X.105-Y

5211115

$3.99

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

NUT FLEX-LOC(10)

7542303

$6.39

SCREW, CAP(10)

7512365

$1.49

LOCK WASHER(10)

7552901

$1.49

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

Caliper, Brake (See Pg., Ref.)

-------

Unavailable

BEARING,TAPERED ROLLER

3554509

$23.99

BEARING,TAPERED ROLLER

3554509

$23.99

BRG,TAPER,ROLL CUP

3554507

$31.99

BRG,TAPER,ROLL CUP

3554507

$31.99

SLEEVE,STRUT HUB SEAL

5222193

$59.99

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

COIL,MAGNET.HVY,W/PLUG-IN Substituted by 2201313

4170010

$121.41

HUBSTRUT ASM,LH (Incl. 9, 12-15, 23)

2200975

Unavailable

HUBSTRUT ASM,RH (Incl. 9, 12-15, 23)

2200976

Unavailable

SPRING,COIL,FR,SHOCK,BLK.

7041375-067

$79.99

RETAINER,SPRING,TOP

5220602

Unavailable

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

SPACER,THREADED

5130668

$27.99

Asm., Drive Shaft w/Sleeve (See Pg., Ref.)

-------

Unavailable

SEAL, HUB STRUT

3610028

$31.99

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

SPACER-RUBBER

5810291

$3.99

WASHER(10)

7555749

$1.49

NUT,FLEX LOC(10)

7542507

$3.99
