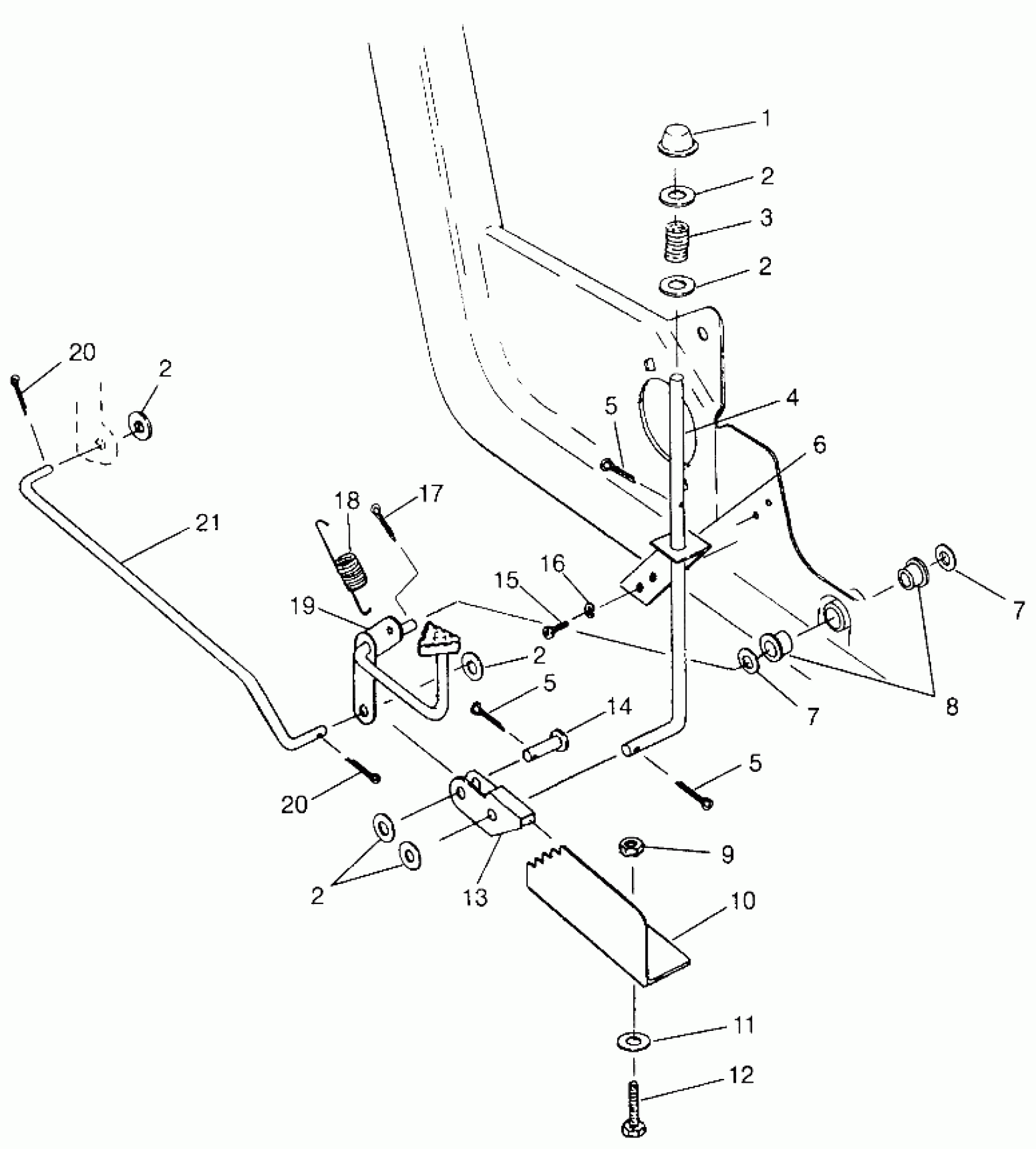

Polaris MAGNUM 4X4 - W97AC42A FOOT PEDAL and PARKING BRAKE Swedish Magnum 4X4 S97AC42E and Norwegian Magn (4940834083C04A) Diagram

#

Description
Price

-

BRAKELOCK ASM,(SWED),W/FOOT BRK.

1910154

$49.92

1

PUSHNUT, RED(10)

7670063

Unavailable

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

3

SPRING

7041365

Unavailable

4

ROD,BRAKELOCK

5224548

Unavailable

5

PIN, COTTER(10)

7661010

$1.49

5

PIN, COTTER(10)

7661010

$1.49

5

PIN, COTTER(10)

7661010

$1.49

6

STAND OFF

5240525

Unavailable

7

WASHER(10)

7555919

$4.99

7

WASHER(10)

7555919

$4.99

8

BUSHING-PEDAL PIVOT

5431107

$8.79

9

NUT(10)

7542124

Unavailable

10

CATCH

5240526

Unavailable

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

BOLT(10) Substituted by 7512269

7515101

Unavailable

13

FLIPPER

5240524

Unavailable

14

PIN, CLEVIS(10)

7661640

Unavailable

15

SCREW,(10)

7512024

$4.79

16

DESC NOT_AVAILABLE

7552601

Unavailable

17

COTTER PIN(10)

7661401

$1.49

18

SPRING-EXHAUST(10)

7042029

$4.84

19

FOOTBRAKE,BLK.

1910144-067

Unavailable

20

PIN COTTER(10)

7661203

$1.49

20

PIN COTTER(10)

7661203

$1.49

21

ROD, BRAKE

5224531

$51.99
