A-ARM/STRUT MOUNTING Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and N (4940834083B011)

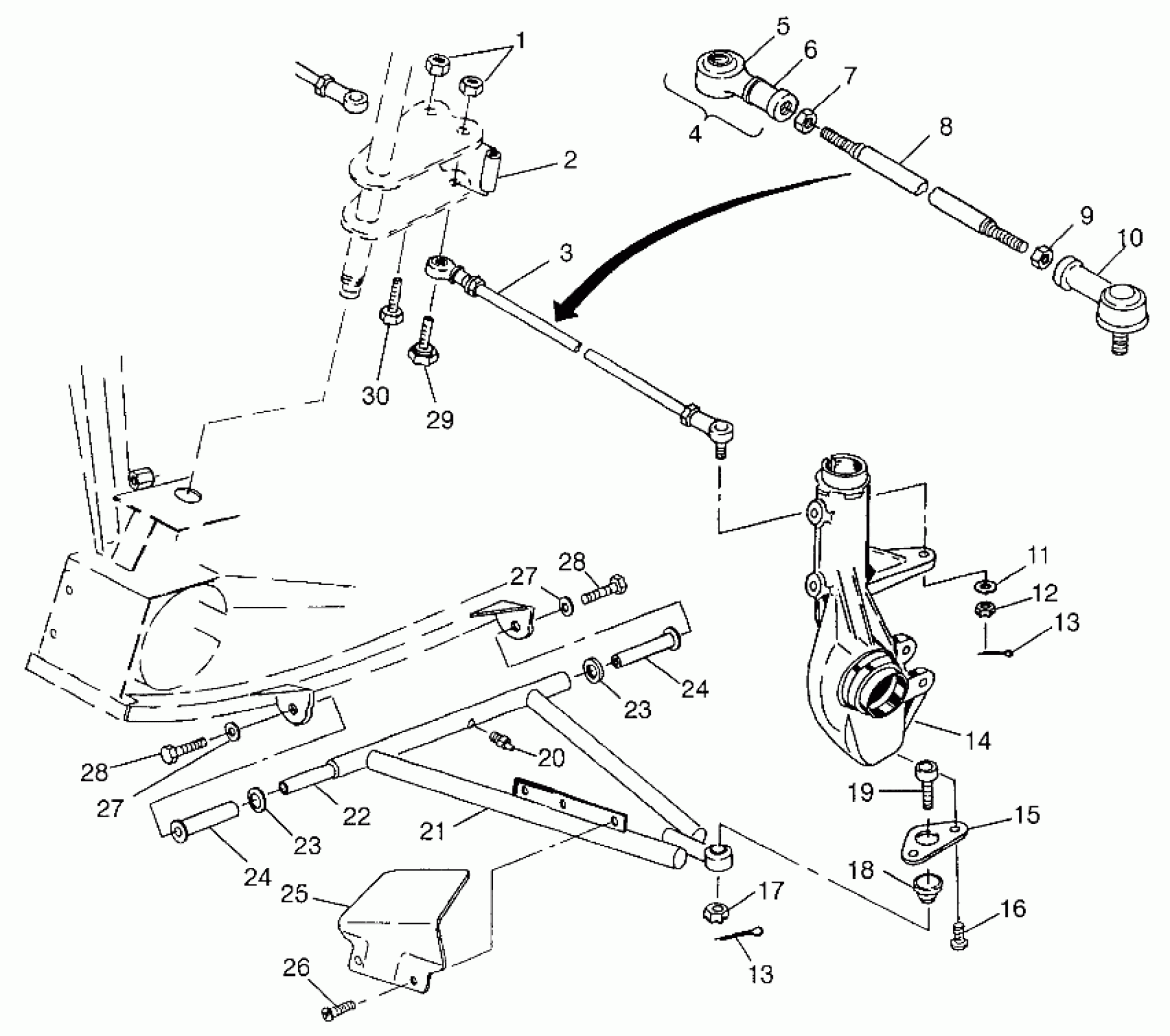

Polaris MAGNUM 4X4 - W97AC42A A-ARM/STRUT MOUNTING Magnum 4X4 W97AC42A, Swedish Magnum 4X4 S97AC42E and N (4940834083B011) Diagram
#
Description
Price
1
NUT LOCK(10)
7542403
$3.99
2
BUSHING
5333367
$6.63
3
TIE ROD ASM. Substituted by 1822478
1822202
Unavailable
4
ROD END ASM,/SEAL BOOT (Incl. 3, 6)
1822179
$69.99
5
BOOT, SEAL, ROD END
5410540
$7.19
6
ROD END,RH.THRD.
7061015
Unavailable
7
NUT HEX(10)
7542401
$2.39
8
ROD, TIE
5020768
$48.87
9
NUT, LH, 10 MM.(10)
7546902
Unavailable
10
ROD END,LH,W/FTG,10 MM.
7060171
$55.99
11
WASHER(10)
7555806
$1.49
12
NUT, CASTLE(10)
7546904
$4.79
13
PIN COTTER(10)
7661203
$1.49
13
PIN COTTER(10)
7661203
$1.49
14
Asm., Hubstrut (See Pg., Ref.)
-------
Unavailable
15
BRACKET-BALL JOINT
5211121
$31.99
16
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$1.49
17
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
18
Boot, Rubber
5410548
Unavailable
19
BALLJOINT,HI-ANGLE Substituted by 7080927
7080673
$76.89
20
ZERK,FITTING,THREADED(10)
7080433
$1.49
21
KIT,A-FRAME,LH (Incl. 13, 21-24, 27-28)
2200627
$123.70
21
KIT,A-FRAME,RH (Incl. 13, 21-24, 27-28)
2200628
$123.70
22
Shaft, A-Arm
5020681
Unavailable
23
BUSHING,A-ARM SPACER(10)
5020677
$10.39
23
BUSHING,A-ARM SPACER(10)
5020677
$10.39
24
BUSHING,A-ARM,LONG. Substituted by 5433066
5431596
Unavailable
24
BUSHING,A-ARM,LONG. Substituted by 5433066
5431596
Unavailable
25
SHIELD,RH CV JOINT Substituted by 5431149-070
5431149
$24.27
25
SHIELD,LH CV JOINT Substituted by 5431150-070
5431150
Unavailable
26
SCREW(10)
7512084
$1.49
27
WASHER(10)
7552603
$1.49
27
WASHER(10)
7552603
$1.49
28
BOLT(10) Substituted by 7512492
7515458
Unavailable
28
BOLT(10) Substituted by 7512492
7515458
Unavailable
29
SCREW(10)
7515554
Unavailable
30
BOLT(10)
7515415
$1.49
