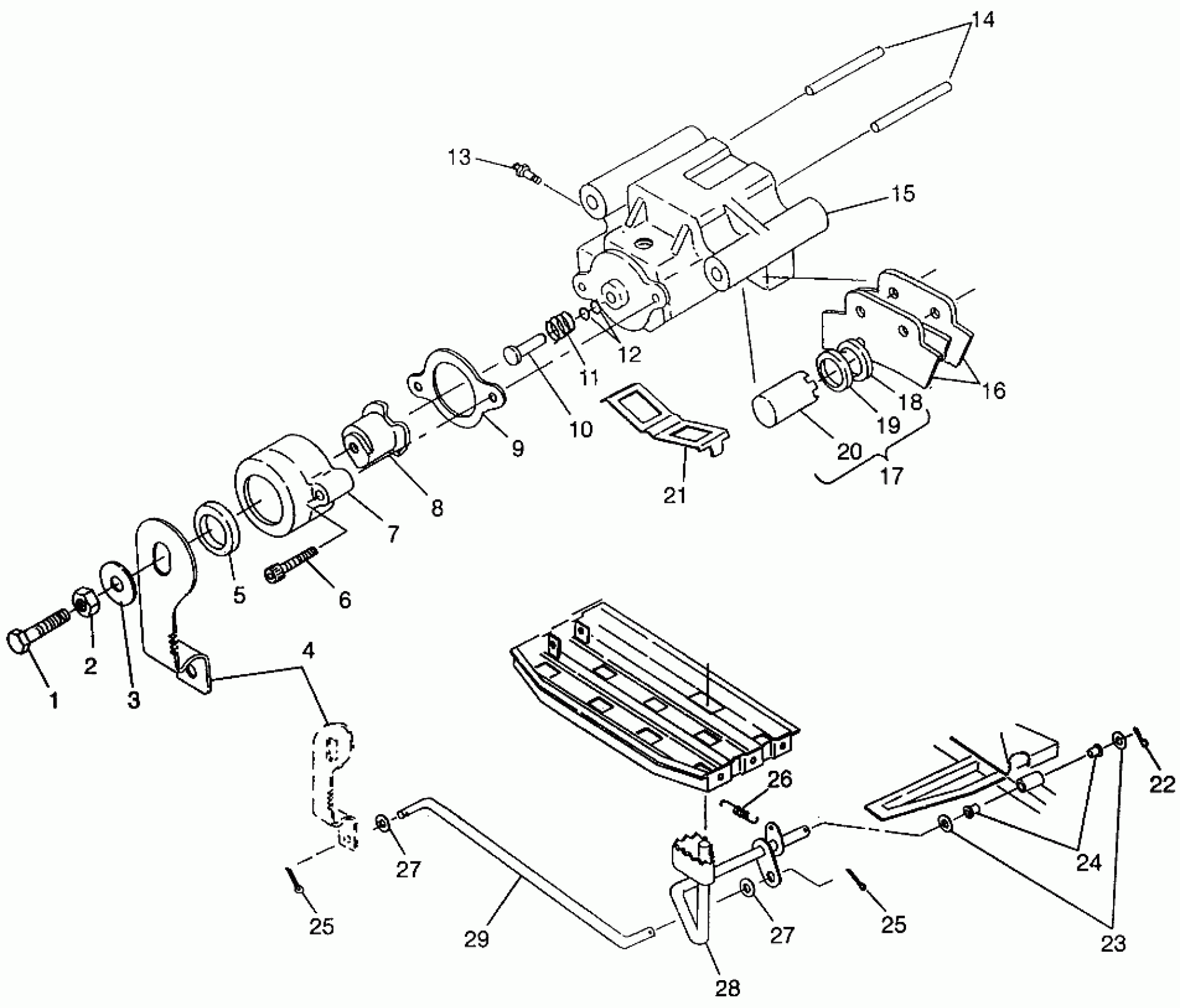

Polaris MAGNUM 4X4 - W968144 REAR BRAKE Magnum 4x4 W968144 and Swedish Magnum 4x4 S968144 (4936053605C006) Diagram

#

Description
Price

1

BOLT

7515145

Unavailable

2

NUT(10)

7542129

$4.79

3

WASHER, SPRING(10)

7555828

Unavailable

4

ARM,BRAKE CALIPER (US)

5240624

Unavailable

4

ARM,BRAKE,CALIPER (SWED)

5222984

Unavailable

5

SEAL, BRAKE

3610026

$7.99

6

SCREW(10)

7512173

Unavailable

7

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

8

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

9

GASKET, BRAKE

5830009

$9.99

10

PIN,BRAKE CALIPER

5020666

Unavailable

11

SPRING,BRAKE,COMP.

7041219

$24.99

12

O RING-.364X.504X.07

5410542

Unavailable

13

SCREW,BLEEDER

7080352

$3.19

14

PIN, DOWEL(10)

7661820

$13.99

15

CALIPER,R.BRAKE,MACH (US)

5131272

Unavailable

15

DESC NOT_AVAILABLE (SWED)

5130930

Unavailable

16

KIT,BRAKEPAD,REAR

2200464

$31.99

17

KIT-PISTON & SEAL (Incl. 18-20)

2200463

$87.99

18

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$11.99

19

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

Unavailable

20

Piston, Brake

-------

Unavailable

21

SPRING,ANTI-RATTLE

5240993

Unavailable

22

COTTER PIN(10)

7661401

$1.49

23

WASHER(10)

7555919

$4.99

24

BUSHING-PEDAL PIVOT

5431107

$8.79

25

PIN COTTER(10)

7661203

$1.49

25

PIN COTTER(10)

7661203

$1.49

26

SPRING-EXHAUST(10)

7042029

$4.84

27

WASHER(10)

7555806

$1.49

27

WASHER(10)

7555806

$1.49

28

FOOTBRAKE,BLK.

1910144-067

Unavailable

29

ROD, BRAKE

5224531

$51.99
