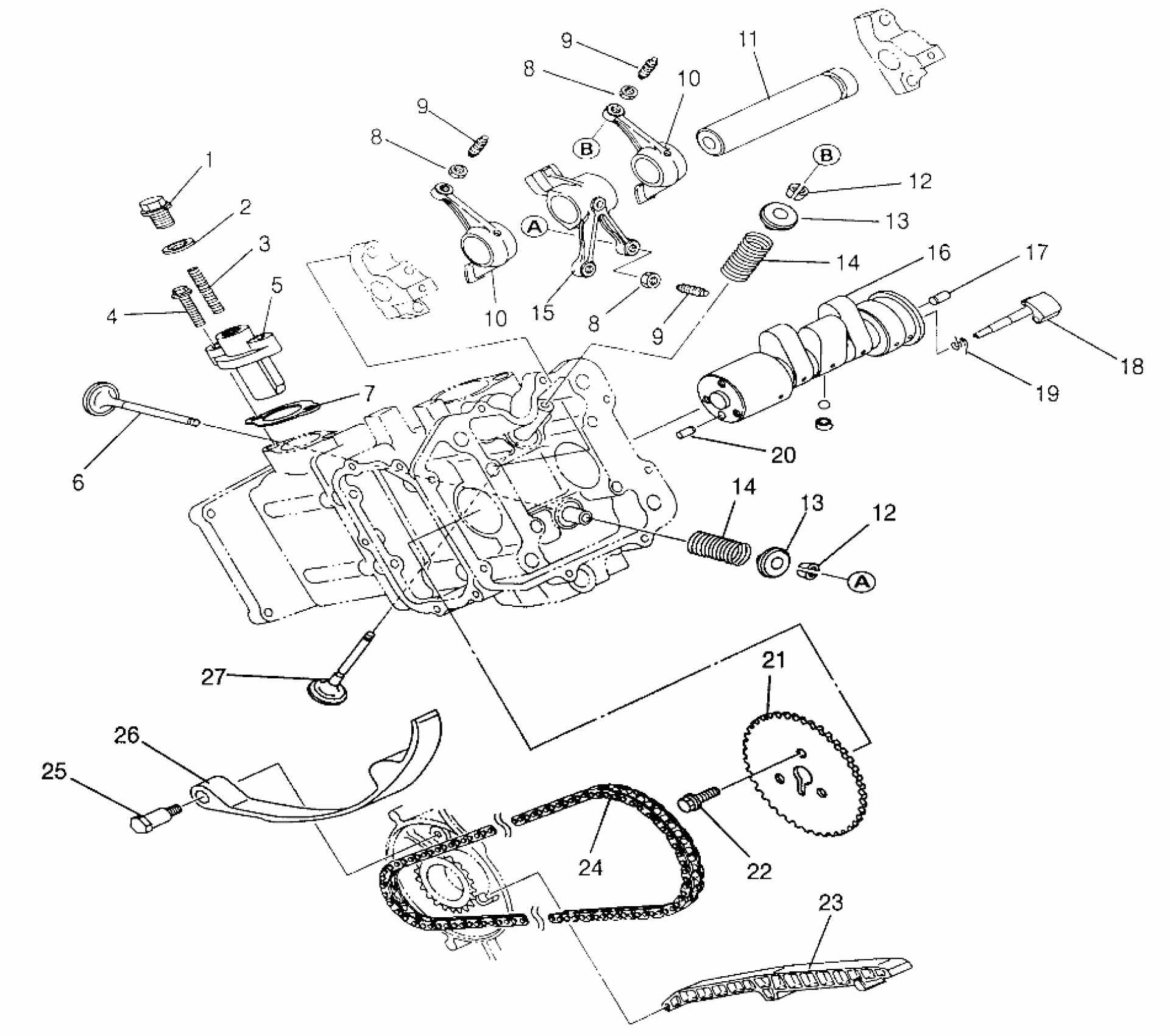

Polaris MAGNUM 4X4 - W968144 INTAKE and EXHAUST Magnum 4x4 W968144 and Swedish Magnum 4x4 S968144 (4936053605D003) Diagram

#

Description
Price

1

PLUG

3084845

Unavailable

2

Gasket, Plug

3084920

Unavailable

3

SPRING,TENSIONER

3084919

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

5

TENSIONER ASM. (Incl. 1-3)

3084918

Unavailable

6

VALVE, EXHAUST

3085412

$87.99

7

GASKET,TENSIONER

3084922

Unavailable

8

NUT(10)

3084912

$3.99

8

NUT(10)

3084912

$3.99

8

NUT(10)

3084912

$3.99

9

SCREW, ADJ.

3084911

$9.59

9

SCREW, ADJ.

3084911

$9.59

9

SCREW, ADJ.

3084911

$9.59

10

ROCKERARM ASM,INTAKE * (Incl. 8, 9)

3084910

$115.99

10

ROCKERARM ASM,INTAKE * (Incl. 8, 9)

3084910

$115.99

11

SHAFT,ROCKER

3084909

$51.99

12

COLLET,VALVE

3084908

$3.99

12

COLLET,VALVE

3084908

$3.99

13

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

13

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

14

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

14

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

15

ROCKERARM ASM,EXHAUST * (Incl. 8, 9)

3084913

$131.99

16

CAMSHAFT Substituted by 3086212 (Incl. 17-20)

3084898

Unavailable

17

PIN, DOWEL Substituted by 3086838

3080103

$7.14

18

LEVER, RELEASE

3085348

Unavailable

19

SPRING,RETURN

3085076

Unavailable

20

PIN,DOWEL

3084899

$7.19

21

SPROCKET 2

3084914

$75.99

22

BOLT&WASHER ASM.

3081657

$4.79

23

GUIDE,CHAIN

3084916

Unavailable

24

CHAIN, TIMING *

3084915

$95.99

25

BOLT,PIVOT,LEVER

3084924

Unavailable

26

LEVER

3084917

$91.99

27

VALVE,INTAKE

3085349

$63.99
