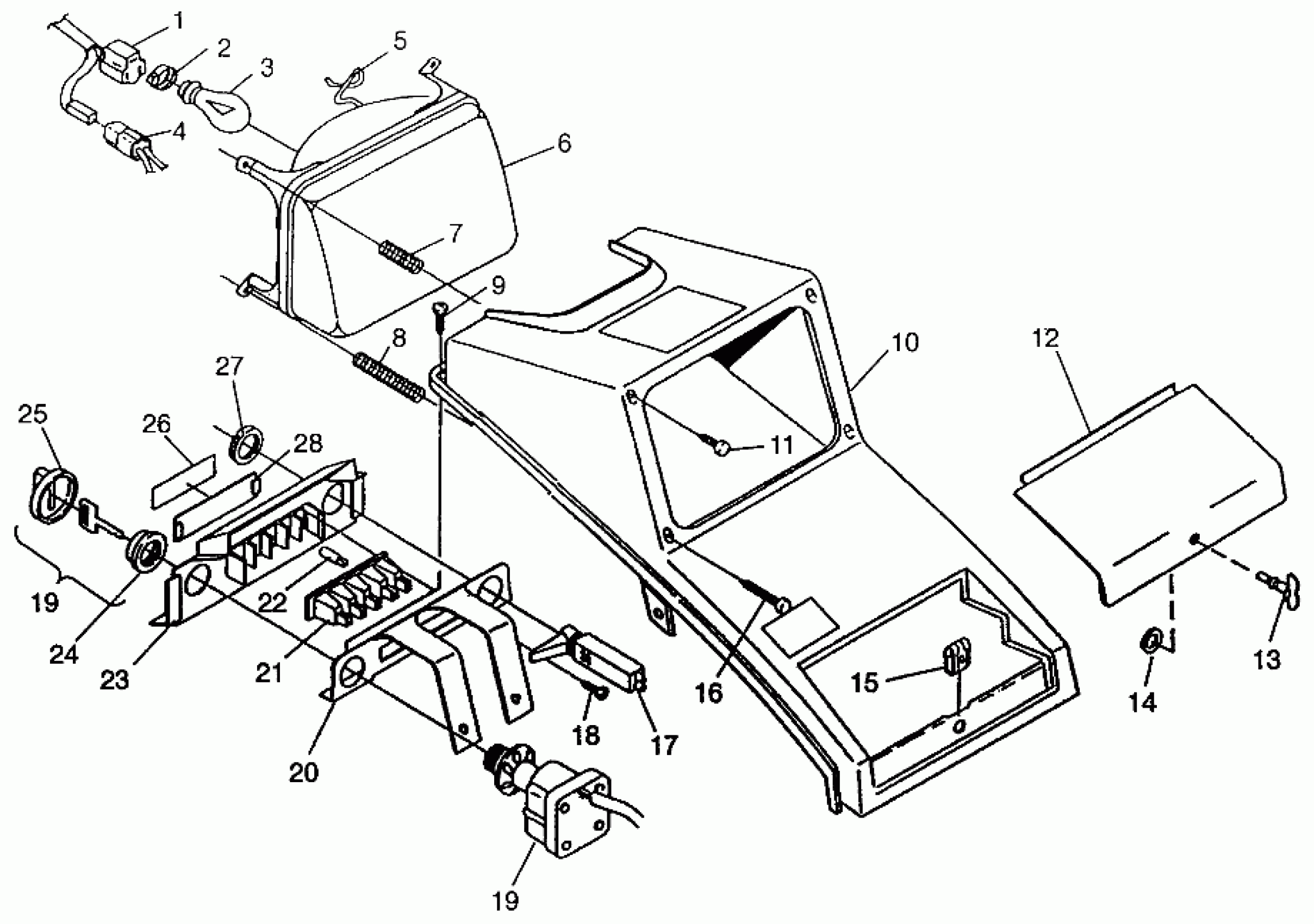

Polaris MAGNUM 4X4 - W968144 HEADLIGHT Magnum 4x4 W968144 and Swedish Magnum 4x4 S968144 (4936053605A013) Diagram

#

Description
Price

1

HARNESS, HEADLIGHT

2460424

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

HSG,DUAL,FEMALE

4040024

$3.99

5

RETAINER,H/L BULB

4032063

Unavailable

6

H/L ASM,W/BULBSEAL

4032065

Unavailable

7

SPRING-ADJ

4032002

Unavailable

8

SPRING,ADJ.

4032041

Unavailable

9

SCREW(10)

7512017

$4.79

10

COVER,H/L,BLUE

5431861-157

Unavailable

11

SCREW, ADJ.(10)

4032003

Unavailable

12

DOOR,ACCESS,BON.BLUE

5431201-157

$70.39

13

FASTENER, 1/4 TURN(10)

7670064

$6.23

14

RING,SPLIT RETAINER(10)

7670065

$1.99

15

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

16

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

17

KIT-CHOKE CONTROL

2200188

$24.27

17

CABLE, CHOKE

7080528

Unavailable

18

SCREW, SEM(10)

7511862

$6.99

19

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

19

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

20

BRKT, IGN. PANEL

5220965-067

Unavailable

21

STRIP, SOCKET

4032037

$27.19

22

BULB

4030042

Unavailable

23

PANEL, IGNITION

5430995

Unavailable

24

NUT,IGN.SWITCH

5432090

Unavailable

25

COVER, KEY Substituted by 5433534

5431964

Unavailable

26

DECAL, PANEL [No Longer Available]

7072528

Unavailable

27

Nut

7080229

$19.99

28

LENS ASM,PILOT LIGHT (Incl. 26) Note: Ignition key may be ordered by using the 4 digit number on the ignition key.

2652049

Unavailable
