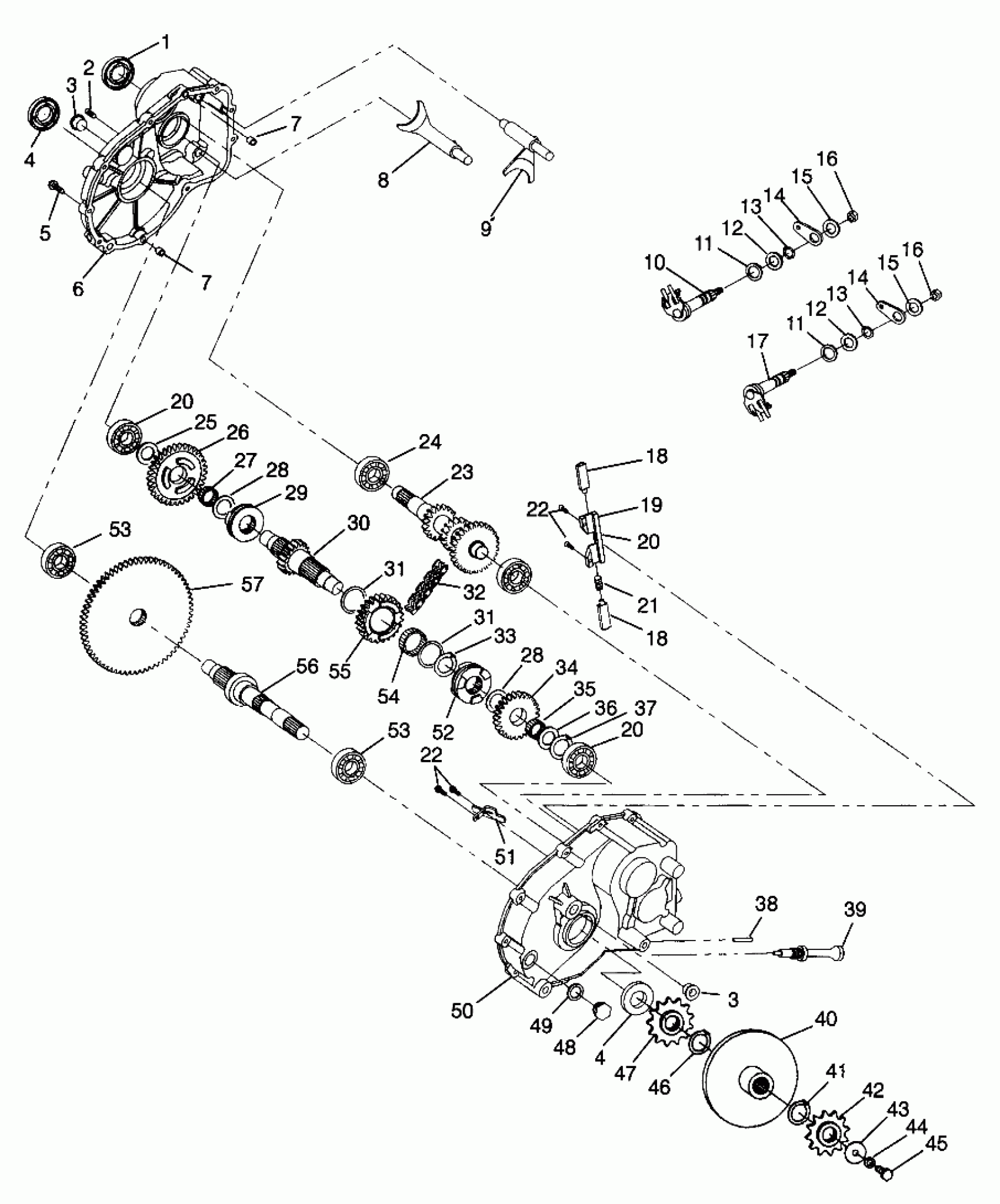

Polaris MAGNUM 4X4 - W968144 GEARCASE Magnum 4X4 W968144 and Swedish Magnum 4X4 S968144 (4936053605C009) Diagram

#

Description
Price

-

GEARCASE ASM,MAGNUM 4WD,HCR (Incl. 1-39, 48-57)

1341184

Unavailable

1

SEAL Substituted by 3233248

3233097

$30.88

2

STUD

3233025

Unavailable

3

BUSHING,PIVOT

3233024

Unavailable

3

BUSHING,PIVOT

3233024

Unavailable

4

SEAL Substituted by 3233248

3233096

Unavailable

4

SEAL Substituted by 3233248

3233096

Unavailable

5

Screw

3233026

$6.46

6

CASE, LH

3233002

Unavailable

7

PIPE, KNOCK

3233021

Unavailable

7

PIPE, KNOCK

3233021

Unavailable

8

SHIFTRAIL,LOW

3233022

Unavailable

9

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

10

SHAFT,LOW SHIFT

3233151

$51.59

11

O-RING Substituted by 3233548

3233044

Unavailable

11

O-RING Substituted by 3233548

3233044

Unavailable

12

Washer

3233040

$9.59

12

Washer

3233040

$9.59

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

14

Bellcrank

3233153

$27.99

14

Bellcrank

3233153

$27.99

15

Washer

3233054

$6.46

15

Washer

3233054

$6.46

16

Nut

3233055

Unavailable

16

Nut

3233055

Unavailable

17

SHAFT,HIGH/REV.SHIFT

3233152

Unavailable

18

PIN

3233031

$32.11

19

BRACKET

3233030

$21.43

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

21

Spring

3233032

$12.94

22

SCREW Substituted by 3233747

3233033

Unavailable

22

SCREW Substituted by 3233747

3233033

Unavailable

23

SHAFT,INPUT,31T,HCR

3233361

Unavailable

24

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

25

WASHER

3233007

Unavailable

26

GEAR, 33T

3233125

Unavailable

27

BEARING,NEEDLE

3233009

$39.99

28

Washer

3233010

Unavailable

28

Washer

3233010

Unavailable

29

DOG,ENGAGEMENT,LOW

3233126

Unavailable

30

SHAFT,REV,29T,HCR

3233362

Unavailable

31

WASHER

3233012

Unavailable

31

WASHER

3233012

Unavailable

32

CHAIN,SILENT,34P

3233036

Unavailable

33

RING,RETAINING

3233029

$5.59

34

GEAR,30T,HCR

3233359

Unavailable

35

BEARING,NEEDLE

3233017

$35.99

36

Washer

3233176

$9.59

37

RING,RETAINING

3233177

$6.39

38

Vent

3233037

Unavailable

39

DIPSTICK Substituted by 3233478

3233115

$24.27

40

Asm., Brake Disc (See Pg., Ref.)

-------

Unavailable

41

Ring, Retaining (See Pg., Ref.)

-------

Unavailable

42

Sprocket, 11T (See Pg., Ref.)

-------

Unavailable

43

Washer (See Pg., Ref.)

-------

Unavailable

44

Washer, Spring Lock (See Pg., Ref.)

-------

Unavailable

45

Bolt (See Pg., Ref.)

-------

Unavailable

45

Bolt (See Pg., Ref.)

-------

Unavailable

47

Sprocket, 12T (See Pg., Ref.)

-------

Unavailable

48

PLUG,OIL DRAIN Substituted by 3233448

3233028

$23.81

49

Washer

3233035

Unavailable

50

CASE, RH

3233003

Unavailable

51

DEFLECTOR,OIL

3233043

$13.19

52

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

53

BEARING

3233020

$47.99

53

BEARING

3233020

$47.99

54

BEARING, NEEDLE

3233014

$43.99

55

SPROCKET, 24T

3233127

Unavailable

56

SHAFT,OUTPUT

3233150

Unavailable

57

GEAR,O/P,100T,HCR

3233360

Unavailable
