FRONT WHEEL Magnum 4X4 W968144 and Swedish Magnum 4X4 S968144 (4936053605B005)

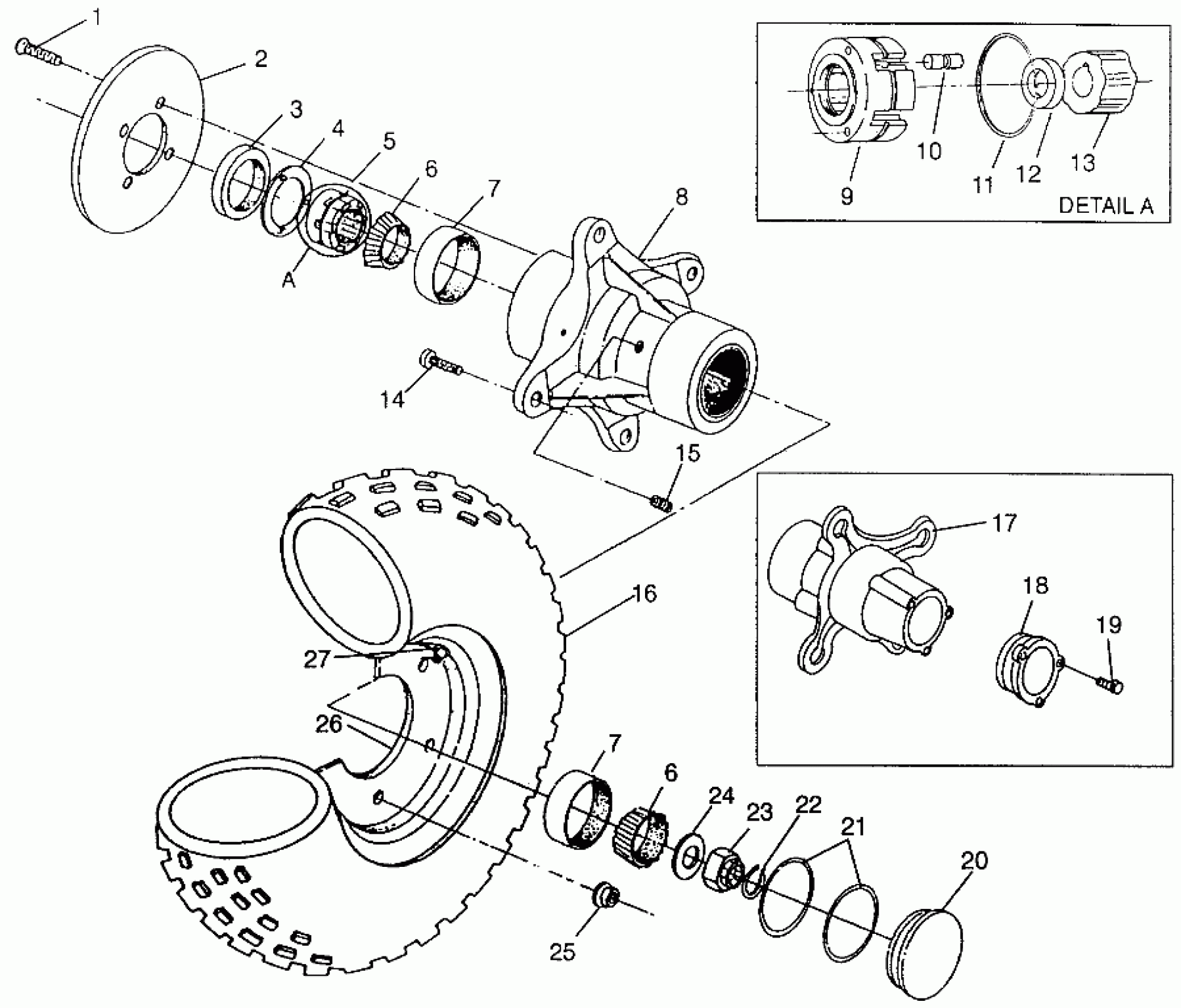

Polaris MAGNUM 4X4 - W968144 FRONT WHEEL Magnum 4X4 W968144 and Swedish Magnum 4X4 S968144 (4936053605B005) Diagram
#
Description
Price
1
BOLT(10)
7515321
$1.49
2
DISC, BRAKE Substituted by 5242935
5211326
$89.03
3
SEAL, FR. HUB
3610019
$35.99
4
Plate, Armature
5211148
$23.99
5
CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281
1520214
$354.99
6
BRG,TAPER.ROLL.CONE
3554506
$31.99
6
BRG,TAPER.ROLL.CONE
3554506
$31.99
7
BRG,TAPER,ROLL CUP
3554507
$31.99
7
BRG,TAPER,ROLL CUP
3554507
$31.99
8
HUB ASM,W/BRG.RACE (Incl. 3, 7, 14)
1520182
Unavailable
9
Cage, Roll
3250028
$218.56
10
ROLLS
3250010
$35.99
11
SPRING,GARTER
3250032
$17.59
12
SPACER Substituted by 1321814
3250031
$24.99
13
Cam
3250030
$198.48
14
STUD(10)
7515523
$3.19
15
PLUG,PIPE
7052045
$12.79
16
TIRE,FR(25X8-12) (25x8x12)
5410568
Unavailable
17
HUB ASM,(3-LOBE)W/BRG.RACE (Incl. 3, 7, 14)
1520227
Unavailable
18
CAP,HUB,3-LOBE,(AWD) Substituted by 5432611
5432347
$13.89
19
SCREW(10)
7517250
Unavailable
20
CAP, HUB
5431368
$23.99
21
O RING
5410470
$2.41
22
RING,RETAINING(10)
7710436
$4.79
23
NUT,LH THREAD
7543204
Unavailable
23
NUT,RH THREAD
7543201
Unavailable
24
WASHER(10)
7555903
Unavailable
25
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$1.59
26
RIM,FRT,6X12(SILVER) Substituted by 1520269-117
1520179-117
$90.87
27
VALVE-RIM
1525017
$5.59
