FOOT PEDAL and PARKING BRAKE Swedish Magnum 4x4 S968144 (4936053605C013)

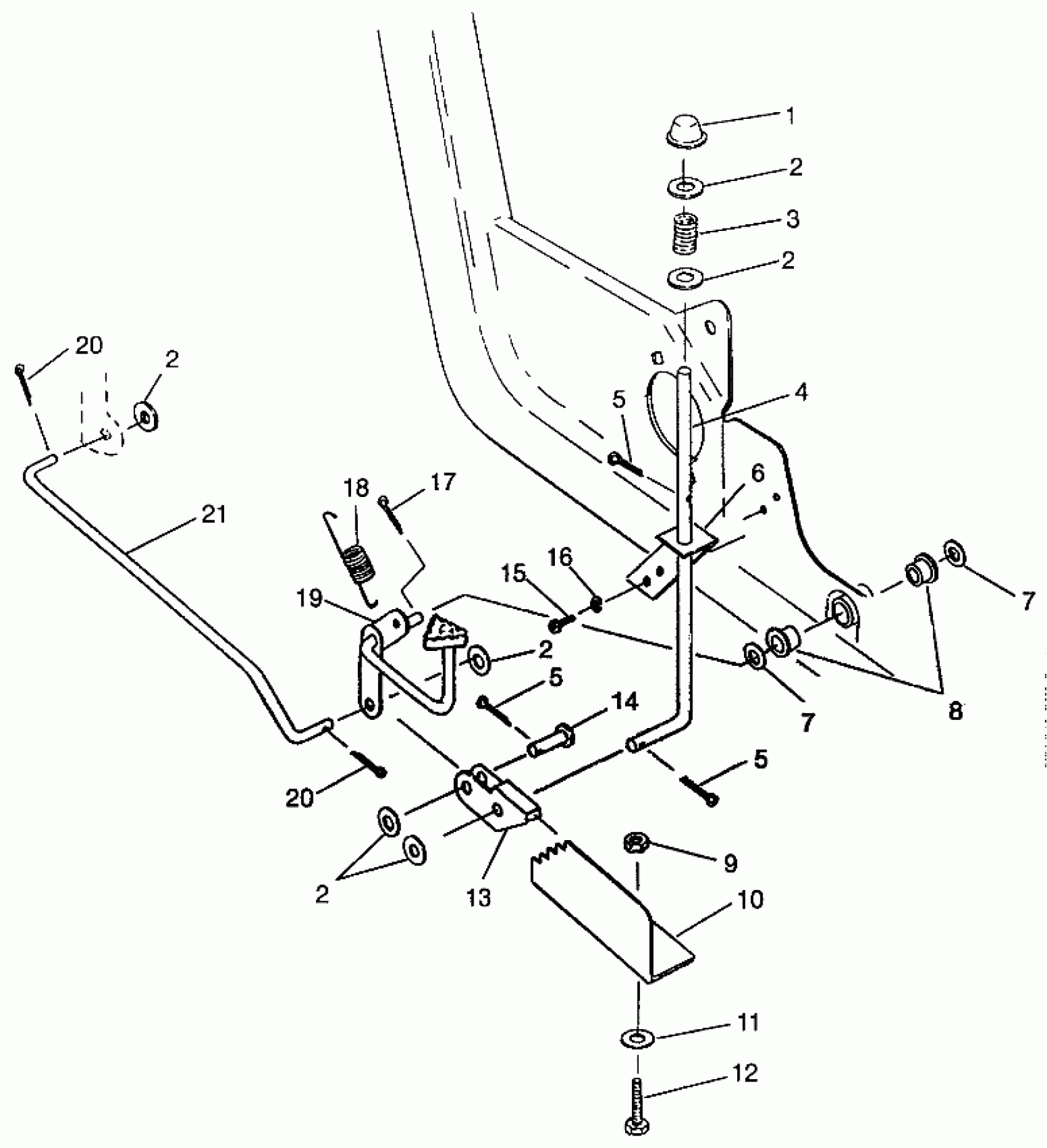

Polaris MAGNUM 4X4 - W968144 FOOT PEDAL and PARKING BRAKE Swedish Magnum 4x4 S968144 (4936053605C013) Diagram
#
Description
Price
-
BRAKELOCK ASM,(SWED),W/FOOT BRK. (SWED)
1910154
$49.92
1
PUSHNUT, RED(10)
7670063
Unavailable
2
WASHER, FLAT(10)
7558201
$5.79
2
WASHER, FLAT(10)
7558201
$5.79
2
WASHER, FLAT(10)
7558201
$5.79
2
WASHER, FLAT(10)
7558201
$5.79
2
WASHER, FLAT(10)
7558201
$5.79
3
SPRING
7041365
Unavailable
4
ROD,BRAKELOCK
5224548
Unavailable
5
PIN, COTTER(10)
7661010
$1.49
5
PIN, COTTER(10)
7661010
$1.49
5
PIN, COTTER(10)
7661010
$1.49
6
STAND OFF
5240525
Unavailable
7
WASHER(10)
7555919
$4.99
7
WASHER(10)
7555919
$4.99
8
BUSHING-PEDAL PIVOT
5431107
$8.79
9
NUT(10)
7542124
Unavailable
10
CATCH
5240526
Unavailable
11
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
12
BOLT(10) Substituted by 7512269
7515101
Unavailable
13
FLIPPER
5240524
Unavailable
14
PIN, CLEVIS(10)
7661640
Unavailable
15
SCREW,(10)
7512024
$4.79
16
DESC NOT_AVAILABLE
7552601
Unavailable
17
COTTER PIN(10)
7661401
$1.49
18
SPRING-EXHAUST(10)
7042029
$4.84
19
FOOTBRAKE,BLK.
1910144-067
Unavailable
20
PIN COTTER(10)
7661203
$1.49
20
PIN COTTER(10)
7661203
$1.49
21
ROD, BRAKE
5224531
$51.99
