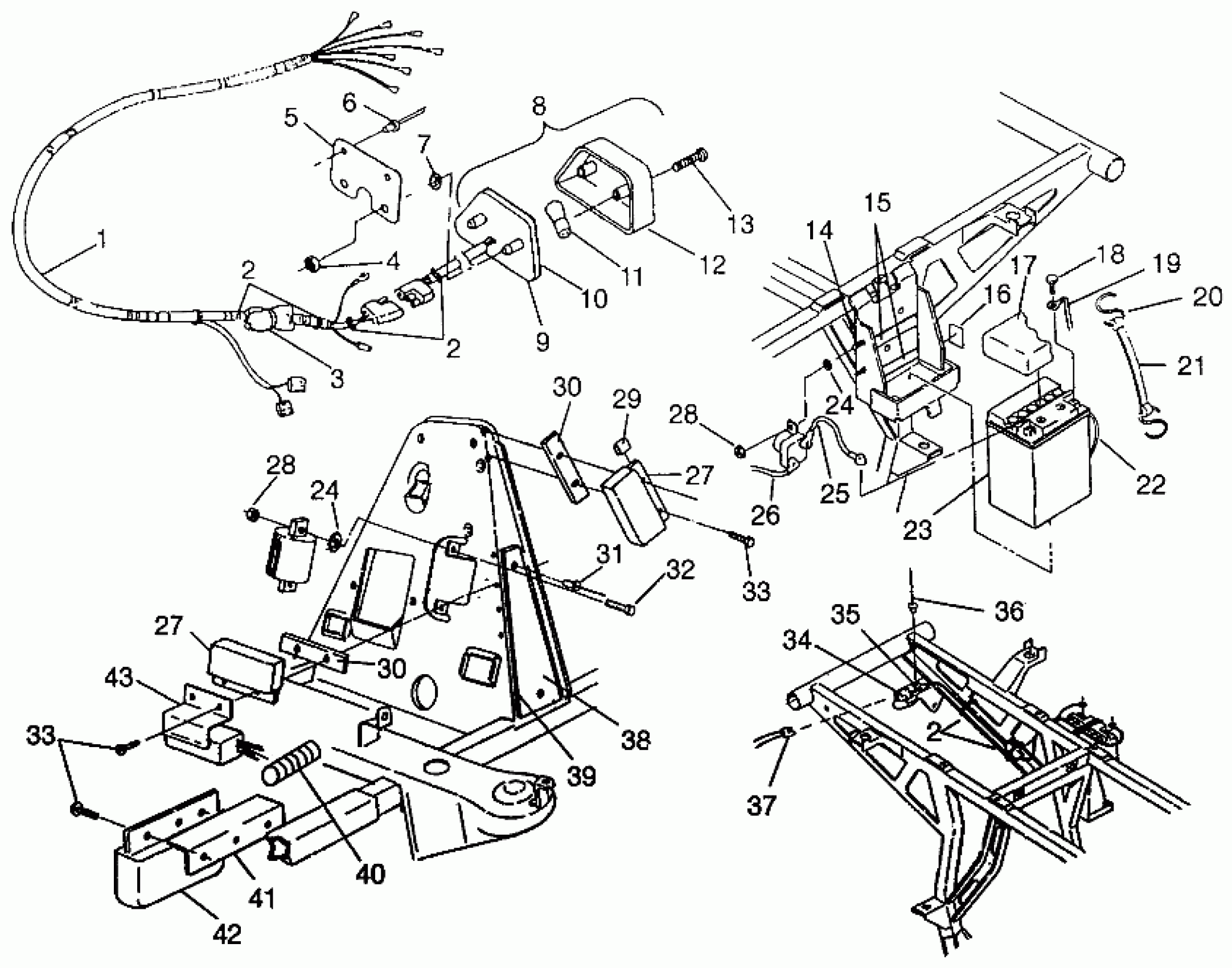

Polaris MAGNUM 4X4 - W968144 ELECTRICAL/TAILLIGHT Magnum 4x4 W968144 and Swedish Magnum 4x4 S968144 (4936053605C011) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE

2460562

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

KIT,CKT.BRKR,20 AMP

2200593

$68.79

4

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

5

ISOLATOR,TAILLIGHT

5211391-067

$13.39

6

RIVET(50)

7621470

Unavailable

7

WASHER,NYLON(10)

7555916

$1.59

8

TAIL LIGHT ASM.

2432034

$55.56

9

BACKING,TAILLIGHT

4032064

$83.33

10

GASKET,TAILLIGHT

4032045

$4.03

11

BULB,TAILLIGHT

4030043

$6.46

12

LENS,TAILLIGHT

4032046

$32.37

13

Screw, Taillight

4032029

$4.76

14

SCREW(10)

7512027

$1.19

15

PAD-BATTERY

5810290

$7.27

16

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

17

COVER,BATTERY

5431769

$15.37

18

BOLT,BATT,KIT(SHORT) (Short)

2200361

Unavailable

19

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

20

HOOK-BATT.H/D(10)

7010032

$1.59

21

STRAP,BATTERY HOLDDOWN

5410424

$4.84

22

TUBE,BATTERY VENT

5432077

$8.89

23

Battery

4140006

$99.99

24

WASHER(10)

7571602

$4.76

24

WASHER(10)

7571602

$4.76

25

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

26

CABLE,SOL/STARTER

4010093

$48.56

27

LIMITER,RPM,350HZ. Substituted by 4060203

4060112

Unavailable

27

LIMITER,RPM,350HZ. Substituted by 4060203

4060112

Unavailable

28

NUT(10)

7541925

$0.79

28

NUT(10)

7541925

$0.79

29

EDGE TRIM - BLACK Substituted by 5521131

8360012

$44.51

30

HEAT SINK

5210650

Unavailable

30

HEAT SINK

5210650

Unavailable

31

RIVET, POP(50)

7621322

$0.56

32

SCREW(10)

7512007

$3.97

33

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

33

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

34

POWER ASM,12V

2410022

Unavailable

35

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

36

RIVET,(50)

7621336

$1.59

37

PIGTAIL, POWER (Pigtail Power)

2460442

$12.30

38

BOARD,TERMINAL

4040056

Unavailable

39

SHIELD,TERM.BOARD

5431152

Unavailable

40

TUBING,CONVOLUTED,3/4"

8360011-15

Unavailable

41

HEATSINK RECT.

5131036

Unavailable

42

RECTIFIER,LR-37

4060133

Unavailable

43

BRKT,CDI(ATV 400)

5240428

Unavailable
