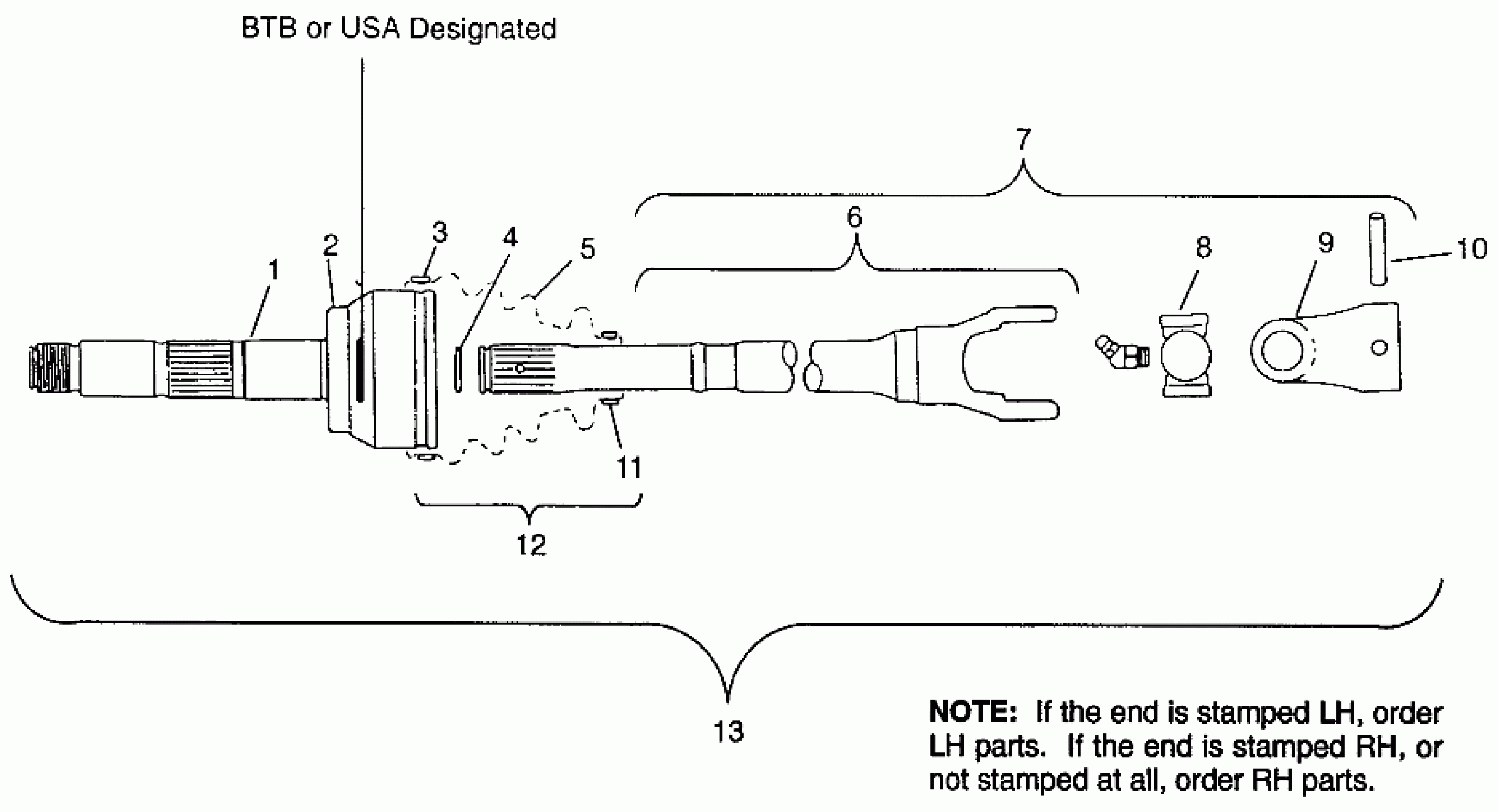

Polaris MAGNUM 4X4 - W968144 CV JOINT - BTB Magnum 4X4 W968144 and Swedish Magnum 4X4 S968144 (4936053605B014) Diagram

#

Description

Price

1

HSG.ASM,CV,RH,W/SLEEVE Substituted by 1380119

1380099

$354.99

1

HSG.ASM,CV,LH,W/SLEEVE Substituted by 1380119

1380098

$354.99

2

Sleeve, Seal

5222299

$32.37

3

CLAMP, LARGE(10)

3260115

$9.99

4

CIRCLIP,DRIVESHAFT,BTB

7670091

Unavailable

5

Boot, CV Joint

5411106

Unavailable

6

SHAFT,LONG (Incl. 4)

1380094

$204.62

7

CARDON WELD,LONG (Incl. 4, 6, 8, 9)

1380092

$204.62

8

KIT,CROSS&BEARING

2200771

Unavailable

9

Yoke, Splined

3260130

Unavailable

10

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

11

CLAMP, BAND

7080627

Unavailable

12

KIT,BOOT,CV JOINT,BTB (Incl. 3, 5, 11)

2200773

Unavailable

13

SHAFT,LH,DRIVE,LONG Substituted by 2200961

1380085

$204.62

13

SHAFT,RH,DRIVE,LONG Substituted by 2200961 NOTE: See Service Manual or Service Team Tips for further details before ordering.

1380086

$204.62
