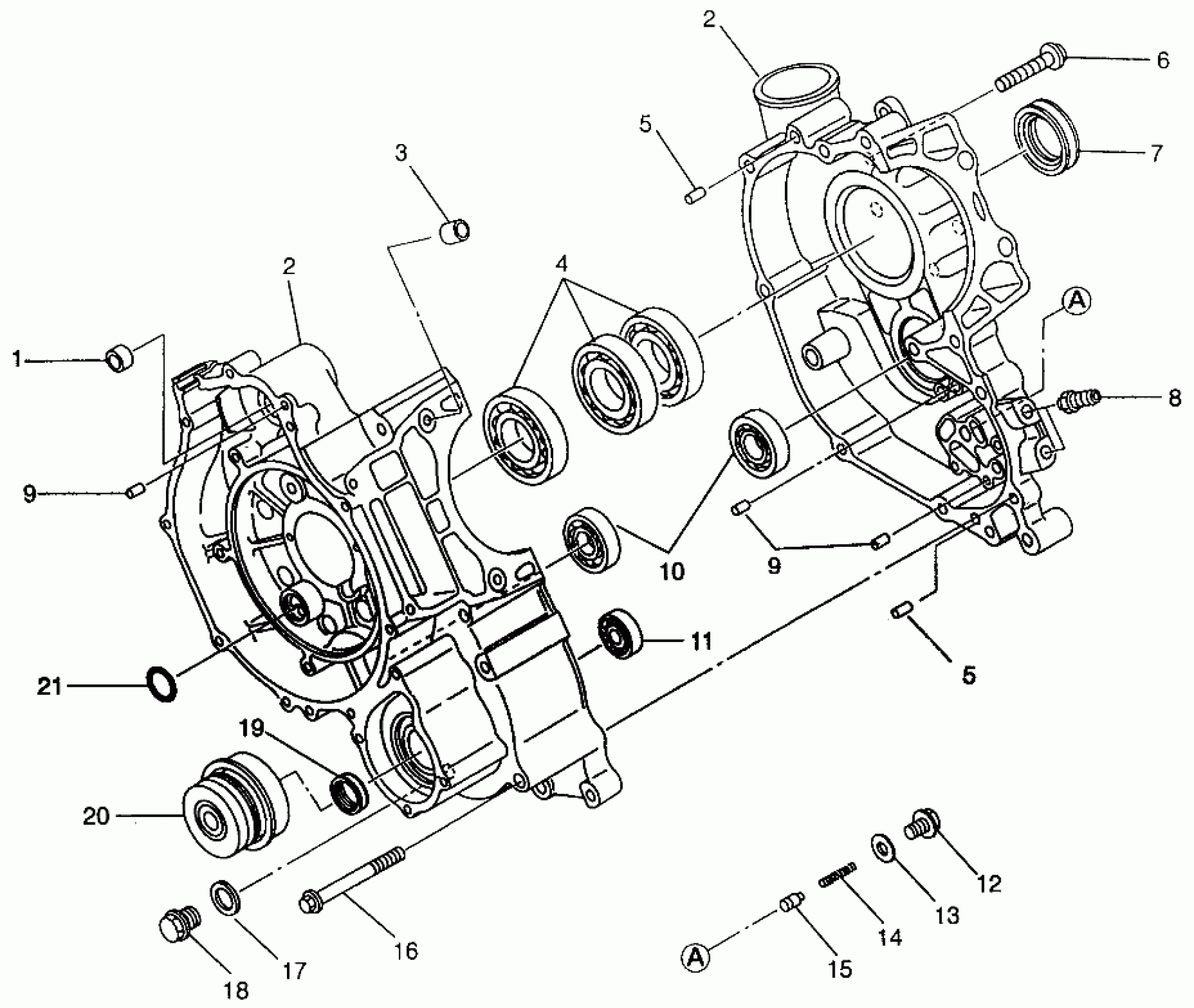

Polaris MAGNUM 4X4 - W968144 CRANKCASE Magnum 4X4 W968144 and Swedish Magnum 4X4 S968144 (4936053605C014) Diagram

#

Description
Price

1

BUSHING, STARTER (Starter)

3083669

Unavailable

2

CRANKCASE ASM. Substituted by 3084833 (Incl. 1, 4, 5, 7, 9-11, 16, 19, 20)

3085411

Unavailable

2

CRANKCASE ASM. Substituted by 3084833 (Incl. 1, 4, 5, 7, 9-11, 16, 19, 20)

3085411

Unavailable

3

PIN,STRAIGHT

3084838

Unavailable

4

BEARING, BALL

3080676

$39.99

5

Pin, Dowel

3084840

Unavailable

5

Pin, Dowel

3084840

Unavailable

6

SCREW & WASHER(10)

3084205

$3.99

7

SEAL, OIL

3084839

$27.99

8

Union

3084842

Unavailable

9

PIN, DOWEL Substituted by 3086838

3080103

$7.14

9

PIN, DOWEL Substituted by 3086838

3080103

$7.14

10

BEARING,BALL

3084834

$23.99

11

BEARING,BALL

3084835

Unavailable

12

PLUG

3084845

Unavailable

13

GASKET,(ALUM.)(10)

3084846

$5.59

14

SPRING

3084844

$3.99

15

VALVE Substituted by 3086810

3084843

Unavailable

16

BOLT,FLANGE

3084841

Unavailable

17

GASKET

3082956

$4.84

18

PLUG Substituted by 3086749

3083453

Unavailable

19

SEAL, OIL

3084836

Unavailable

20

SEAL,MECHANICAL

3084837

$68.79

21

O-RING

3084847

$6.39
