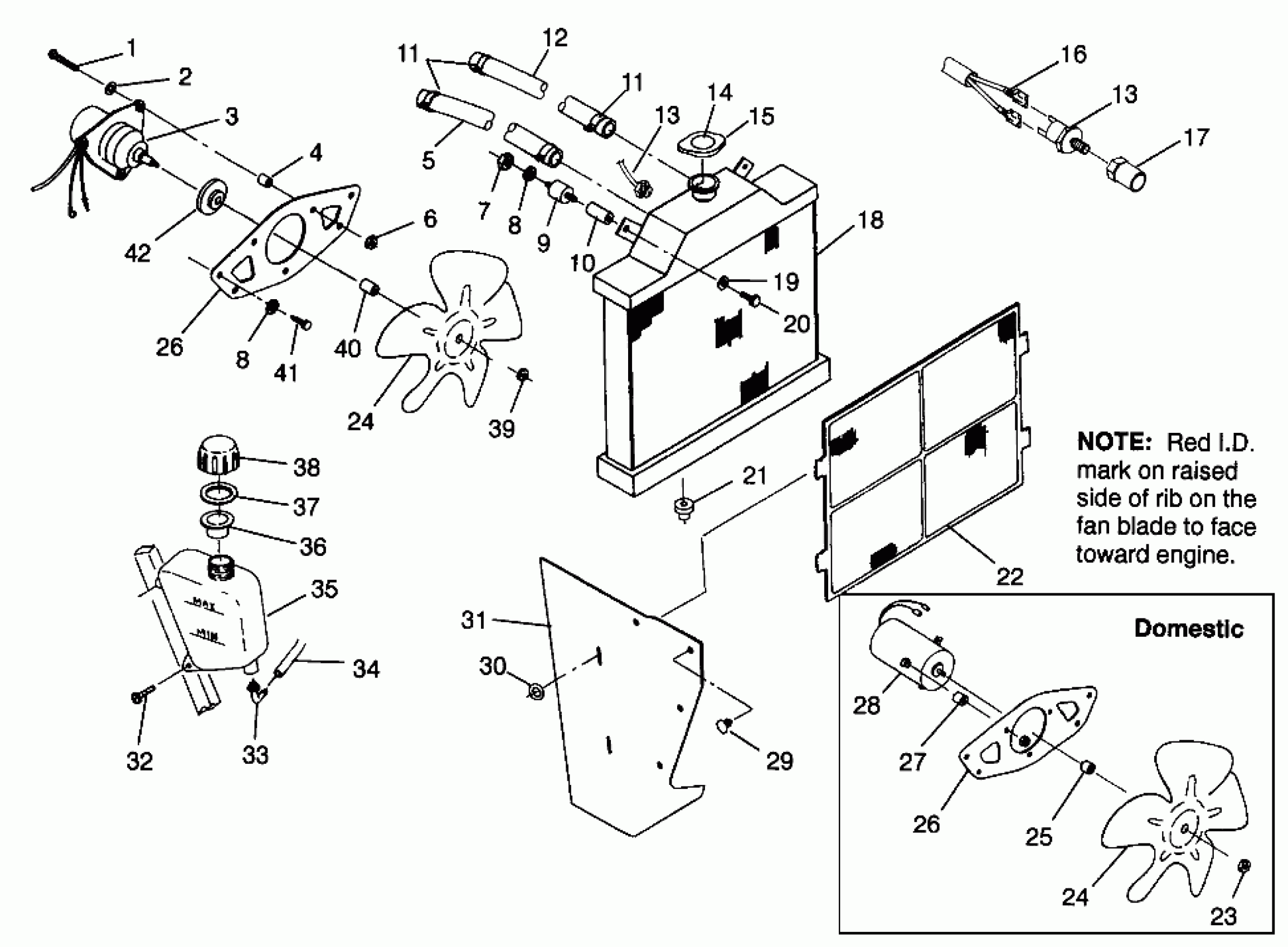

Polaris MAGNUM 4X4 - W968144 COOLING SYSTEM Magnum 4X4 W968144 and Swedish Magnum 4X4 S968144 (4936053605A009) Diagram

#

Description
Price

1

SCREW

7517221

$1.83

2

WASHER, FLAT(10)

7558201

$5.79

3

MOTOR, FAN Substituted by 4170009

3084266

Unavailable

3

MOTOR, FAN Substituted by 3084266 (Incl. 3, 25, 39, 42)

2410006

Unavailable

4

SPACER, FAN BRKT.

5333073

$3.83

5

HOSE,WATER,305 CM.

8450050-305

Unavailable

6

Nut

7547004

$4.79

7

NUT-LOCK(10)

7542122

$1.49

8

WASHER(10)

7558301

$1.49

8

WASHER(10)

7558301

$1.49

9

Mount, Rubber

3110032

$7.99

10

Spacer, Mount

5020572

$8.79

11

CLAMP,HOSE,(10)

7080614

$7.19

11

CLAMP,HOSE,(10)

7080614

$7.19

12

HOSE,CHAFE-PROTECTED

5411108

Unavailable

13

SWITCH ASM,THERMAL FAN L/C (Incl. 17)

4110189

$57.19

13

SWITCH ASM,THERMAL FAN L/C (Incl. 17)

4110189

$57.19

14

DECAL(CPSC),RAD.CAP

7073068

Unavailable

15

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

16

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

17

FITTING,HEX BUSH

7052116

Unavailable

18

RADIATOR,"U"FLOW

1240015

Unavailable

19

WASHER(10)

7552605

$5.27

20

SCREW(10)

7512113

$3.99

21

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

22

COVER,RADIATOR,W/MESH

5431760

Unavailable

23

NUT

7542154

Unavailable

24

BLADE, FAN

5240822

$57.59

24

BLADE, FAN

5240822

$57.59

25

SPACER

5333457

Unavailable

26

BRKT,COOL.FAN,BLK

5224741-067

Unavailable

26

BRKT,COOL.FAN,BLK

5224741-067

Unavailable

27

SPACER,FAN BRKT.

5432294

$3.99

28

MOTOR,FAN,LIQ.COOLED (Domestic) (Incl. 23, 25)

4170009

Unavailable

29

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

30

O RING

5410607

$5.99

31

SHIELD,LH,RADIATOR SIDE

5431829

$73.25

31

SHIELD,RH,RADIATOR SIDE

5431830

Unavailable

32

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

33

FITTING,90 DEGREE

7052065

$7.19

34

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

35

Tank, Surge

5431673

Unavailable

36

PLUG,CAP Substituted by 5433774

5431895

Unavailable

37

GASKET-OVERFLOW CAP

5810279

$2.41

38

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

39

NUT

3083952

Unavailable

40

BUSHING

3083950

Unavailable

41

BOLT(10)

7512232

$1.49

42

COVER

3083951

Unavailable
