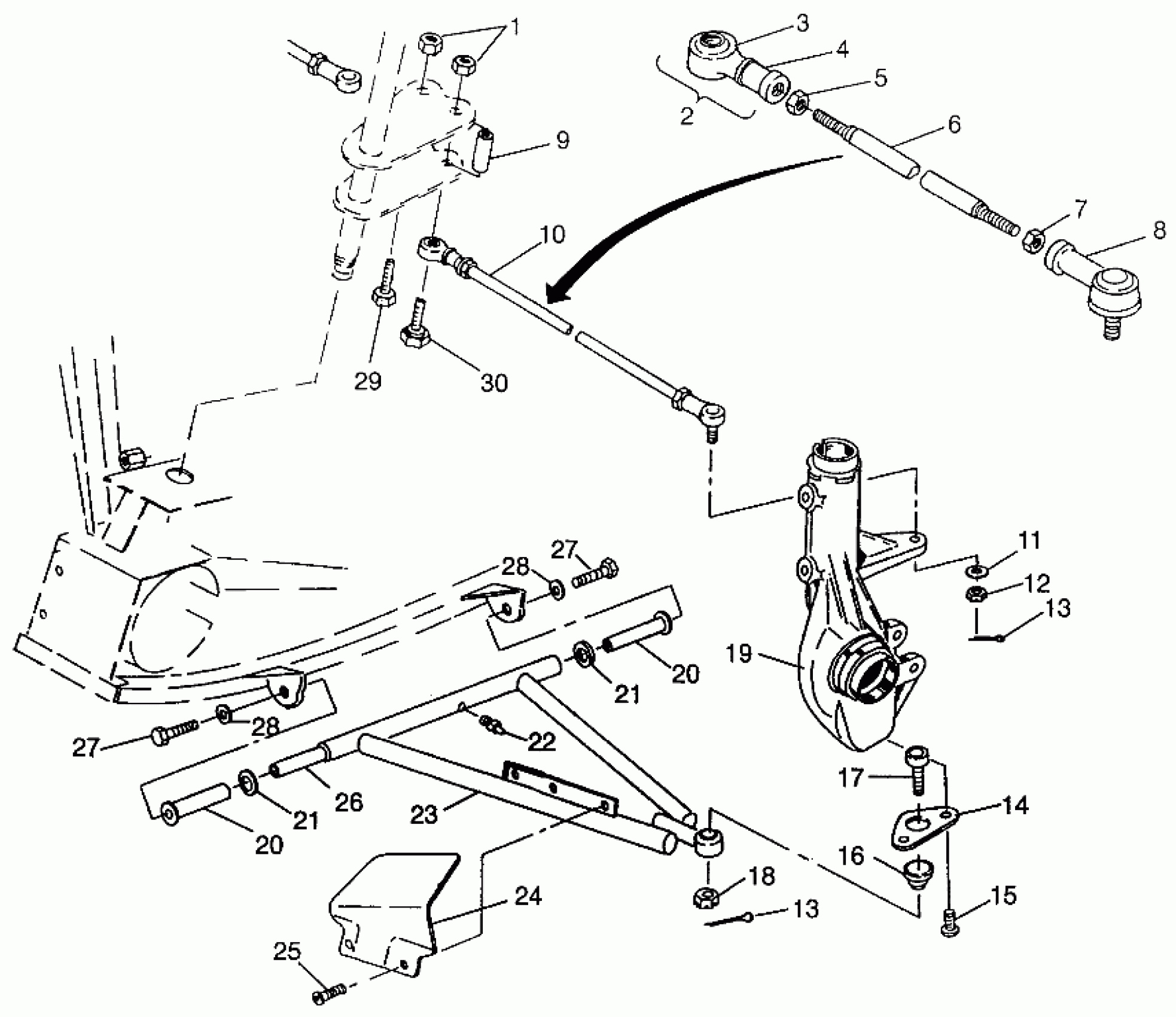

Polaris MAGNUM 4X4 - W968144 A-ARM/STRUT MOUNTING Magnum 4x4 W968144 and Swedish Magnum 4x4 S968144 (4936053605B009) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

ROD END ASM,/SEAL BOOT (Incl. 2, 3)

1822179

$69.99

3

BOOT, SEAL, ROD END

5410540

$7.19

4

ROD END, RH Substituted by 1822179

7060149

Unavailable

5

NUT HEX(10)

7542401

$2.39

6

ROD, TIE

5020768

$48.87

7

NUT, LH, 10 MM.(10)

7546902

Unavailable

8

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

9

BUSHING

5333367

$6.63

10

TIE ROD ASM. Substituted by 1822478

1822202

Unavailable

11

WASHER(10)

7555806

$1.49

12

NUT, CASTLE(10)

7546904

$4.79

13

PIN COTTER(10)

7661203

$1.49

13

PIN COTTER(10)

7661203

$1.49

14

BRACKET,BALLJOINT

5240717

Unavailable

15

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

16

Boot, Rubber

5410548

Unavailable

17

BALL JOINT Substituted by 7080673

7080364

Unavailable

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

Asm., Hubstrut, LH (See Pg. B4, Ref. 15)

-------

Unavailable

19

Asm., Hubstrut, RH (See Pg. B4, Ref. 15)

-------

Unavailable

20

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

20

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

21

BUSHING,A-ARM SPACER(10)

5020677

$10.39

21

BUSHING,A-ARM SPACER(10)

5020677

$10.39

22

ZERK,FITTING,THREADED(10)

7080433

$1.49

23

KIT,A-FRAME,LH (Incl. 13, 20-23, 27-28)

2200627

$123.70

23

KIT,A-FRAME,RH (Incl. 13, 20-23, 27-28)

2200628

$123.70

24

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

24

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

25

SCREW(10)

7512084

$1.49

26

Shaft, A-Arm

5020681

Unavailable

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

BOLT(10)

7515415

$1.49

30

SCREW(10)

7515554

Unavailable
