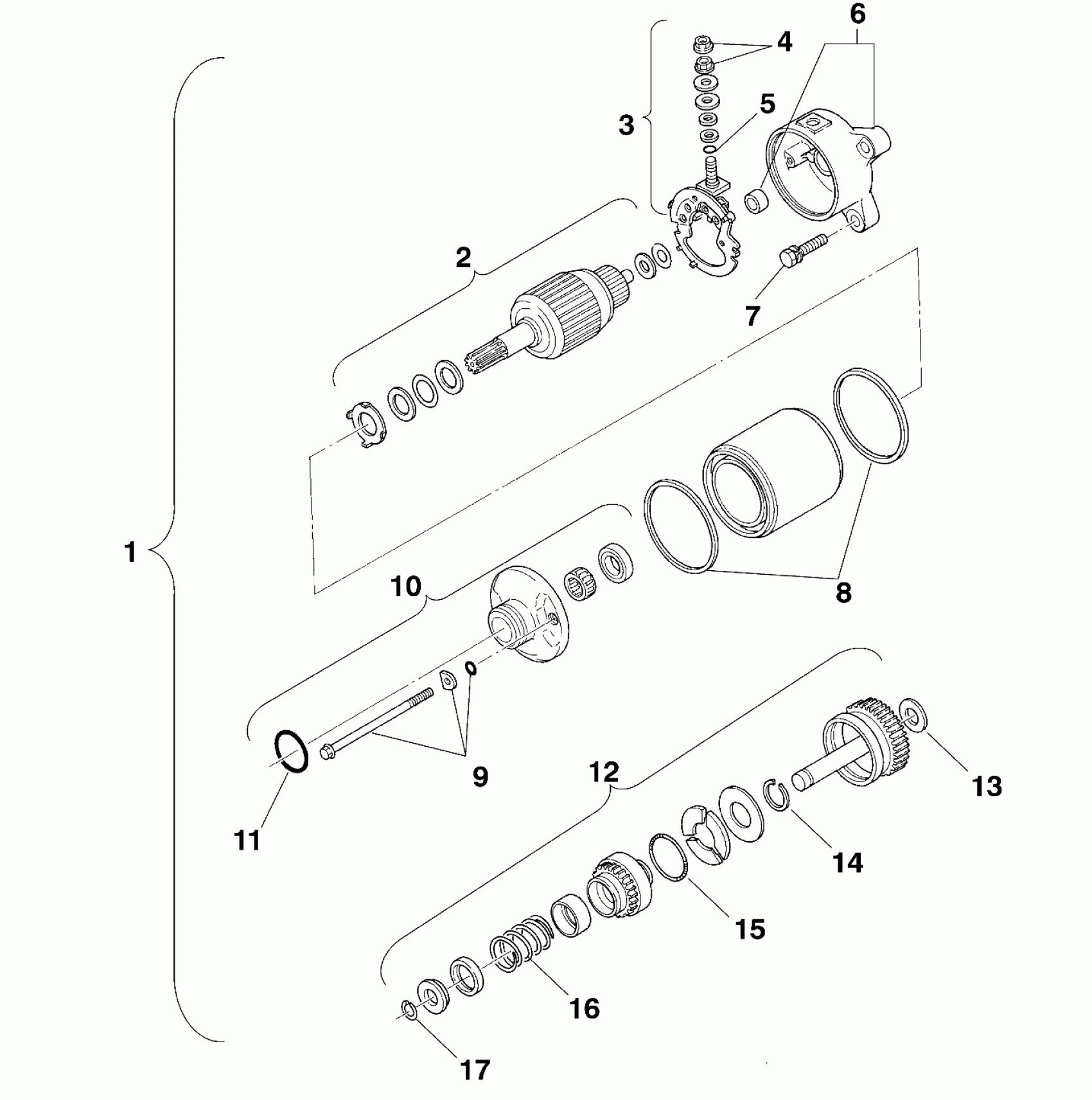

Polaris MAGNUM 4X4 - W958144 STARTING MOTOR - W958144 (4926862686d012) Diagram

#

Description
Price

1

MOTOR, STARTING * (Incl. 2-6,8-11)

3084981

Unavailable

2

Washer Set

3084982

Unavailable

3

BRUSH,COMPL.2-POLE *

3084406

Unavailable

4

NUT, FLANGE(10)

3083649

$3.99

5

O-RING

3084408

Unavailable

6

COVER,REAR,STARTER(MAGNUM)

3085034

$91.99

7

BOLT&WASHER ASM.

3082038

$3.99

8

RING, RUBBER

3084405

Unavailable

9

BOLT ASM, SET (Incl. 5)

3084983

$23.99

10

COVER,FRT,STARTER(MAGNUM) *

3085033

$137.60

11

O-Ring

3240114

$5.59

12

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 13-17)

3083647

Unavailable

13

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19
