- MAGNUM 4X4 - W958144
REAR CAB ASSEMBLY - W958144 (4926862686a007)

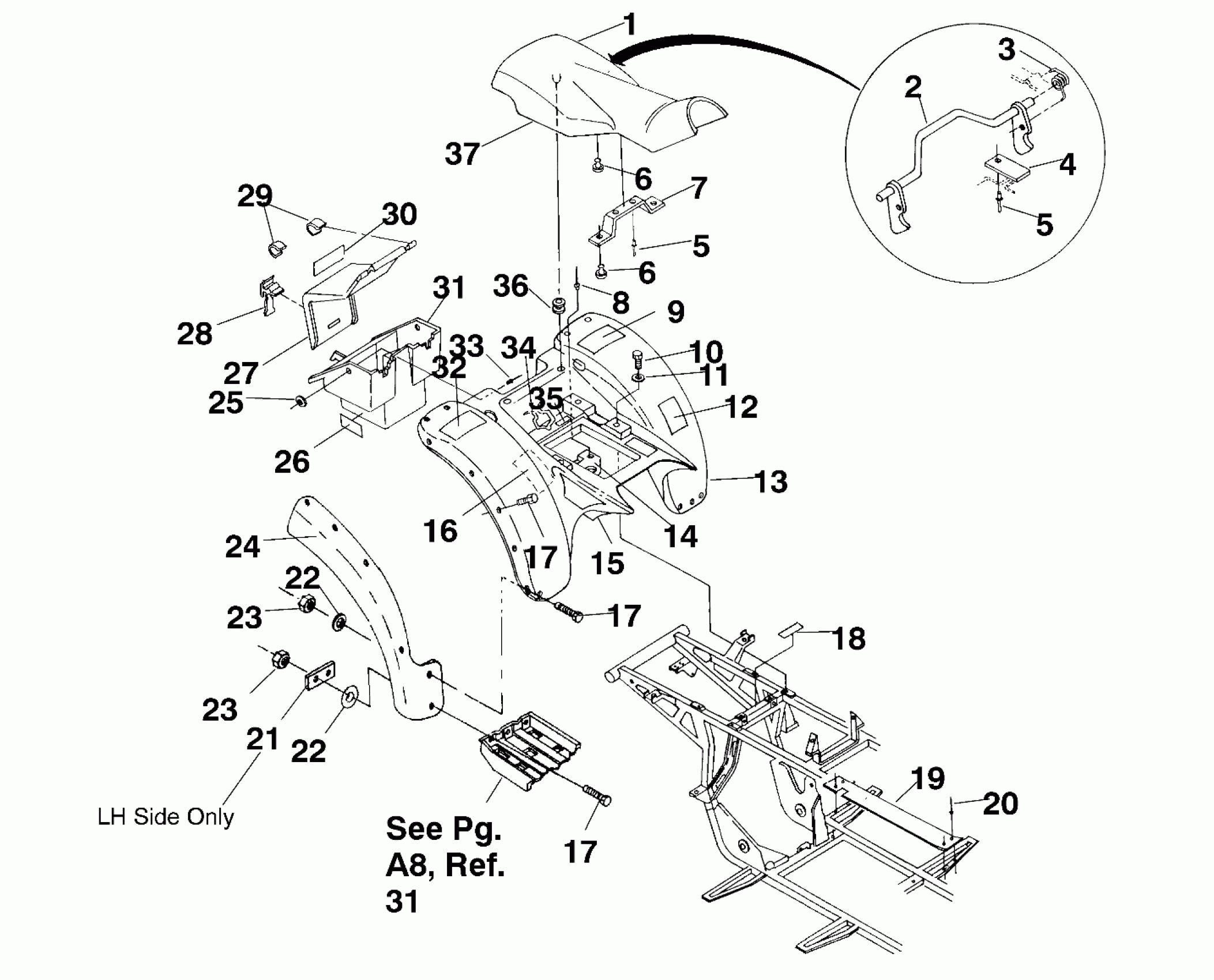

Polaris MAGNUM 4X4 - W958144 REAR CAB ASSEMBLY - W958144 (4926862686a007) Diagram
#
1
SEAT ASM,BON.BLUE(ATV) Substituted by 2682357-157
2681724-157
Unavailable
2
LATCH,SEAT
1011558
Unavailable
3
SPRING, LATCH
7041158
Unavailable
4
BRACKET,LEVER RETAINER
5211033
$29.25
5
BLIND RIVET(50)
7621403
$1.49
5
BLIND RIVET(50)
7621403
$1.49
6
Bumper, Rubber
5410414
$3.19
6
Bumper, Rubber
5410414
$3.19
7
BRKT,SUPPORT SEAT BASE
5222837-067
Unavailable
8
RIVET,3/16X.402(50)
7621432
$1.49
9
DECAL(CPSC),WARN,R.RACK [No Longer Available]
7072788
Unavailable
10
BOLT(10)
7512232
$1.49
11
WASHER,WROUGHT(10)
7558302
$1.59
12
DECAL,TIRE PRESS(425-4X4)
7074750
Unavailable
13
CAB,REAR,BLUE(350ATV-MOD)
5431271-157
Unavailable
14
BRKT,R.HOLDDOWN
5220880
Unavailable
15
Foil, Rear Cab
5810957
Unavailable
16
Foil, Rear Cab, Small
5810991
Unavailable
17
BOLT, BLACK(10)
7512282
$1.49
17
BOLT, BLACK(10)
7512282
$1.49
17
BOLT, BLACK(10)
7512282
$1.49
18
DECAL,FILTER ELEMENT [No Longer Available]
7072791
Unavailable
19
GUARD,CLUTCH,OUTER
5222860-067
$7.06
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
BRKT, LH MUD FLAP
5211131-067
Unavailable
22
WASHER, FLAT(10)
7555859
$1.49
22
WASHER, FLAT(10)
7555859
$1.49
23
NUT-LOCK(10)
7542122
$1.49
23
NUT-LOCK(10)
7542122
$1.49
24
MUDFLAP, LH, FULL
5850107
Unavailable
24
MUDFLAP,RH,FULL (w/Output Brk.)
5850110
$58.39
25
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
26
TAPE, FOIL
5810310
Unavailable
27
LID,TOOLBOX(SIL/B.BLUE)
5430769-1035
Unavailable
28
STRAP,TOOL COMPARTMENT
5410425
Unavailable
29
CLIP, LID HINGE(10)
7670050
Unavailable
30
DECAL(CPSC),PASS.WRN. [No Longer Available]
7072805
Unavailable
31
BOX,TOOL COMP.
5430882
Unavailable
32
DECAL,LOAD DIST.(4 WHL.)
7074110
Unavailable
33
RIVET(50)
7621462
$1.49
34
RETAINER,TOOL POUCH
7080385
Unavailable
35
DECAL,CARB.INFO.
7073761
Unavailable
36
Grommet
5411042
Unavailable
37
COVER,SEAT,BON.BLUE
2681723-157
Unavailable
