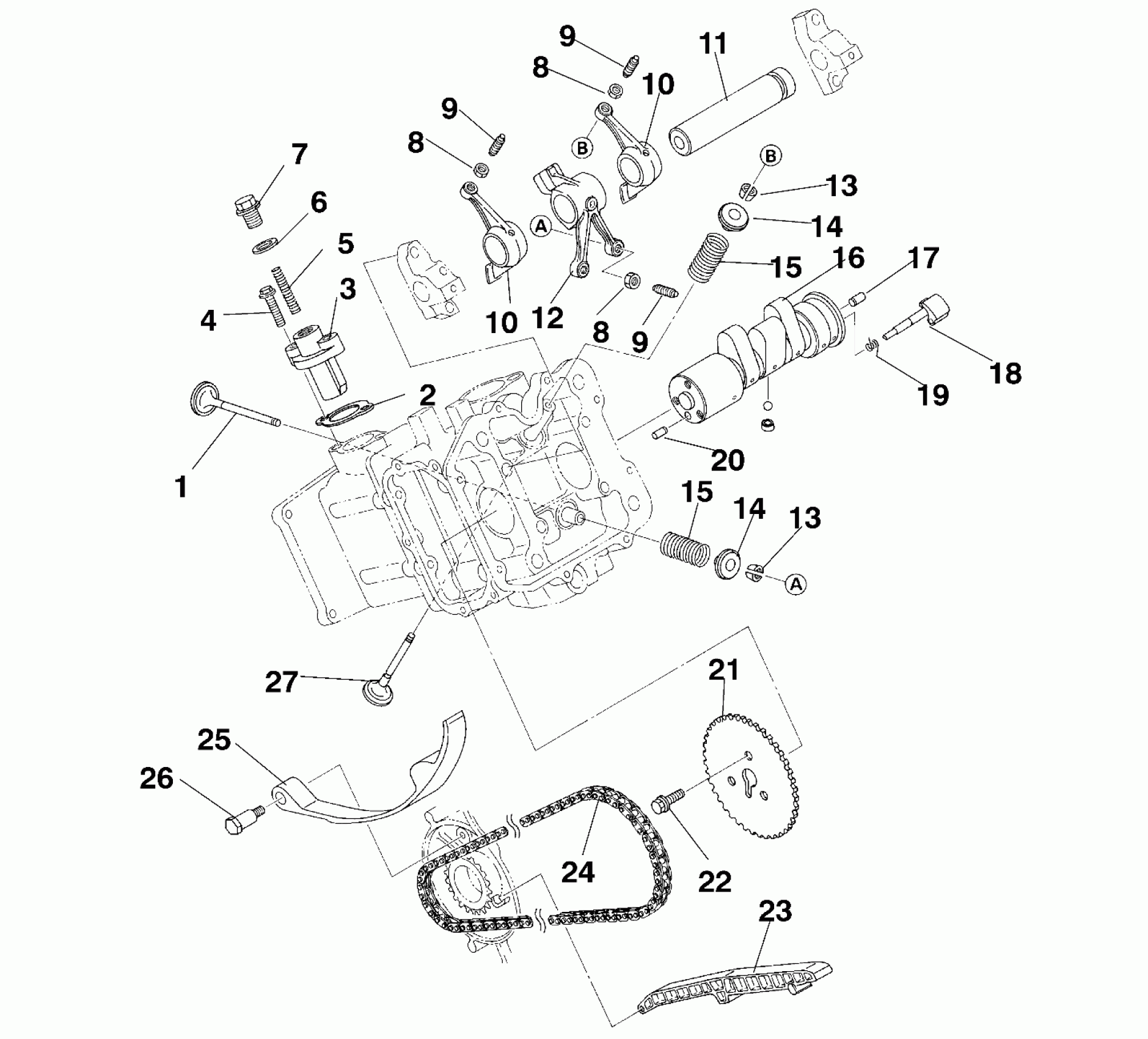

Polaris MAGNUM 4X4 - W958144 INTAKE and EXHAUST - W958144 (4926862686d004) Diagram

#

Description
Price

1

VALVE,EXHAUST Substituted by 3085412

3084905

$93.08

2

GASKET,TENSIONER

3084922

Unavailable

3

TENSIONER ASM. (Incl. 5-7)

3084918

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

5

SPRING,TENSIONER

3084919

Unavailable

6

Gasket, Plug

3084920

Unavailable

7

PLUG

3084845

Unavailable

8

NUT(10)

3084912

$3.97

8

NUT(10)

3084912

$3.97

8

NUT(10)

3084912

$3.97

9

SCREW, ADJ.

3084911

$9.52

9

SCREW, ADJ.

3084911

$9.52

9

SCREW, ADJ.

3084911

$9.52

10

ROCKERARM ASM,INTAKE * (Incl. 8,9)

3084910

$125.46

10

ROCKERARM ASM,INTAKE * (Incl. 8,9)

3084910

$125.46

11

SHAFT,ROCKER

3084909

$52.60

12

ROCKERARM ASM,EXHAUST * (Incl. 8,9)

3084913

$166.24

13

COLLET,VALVE

3084908

$4.84

13

COLLET,VALVE

3084908

$4.84

14

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

14

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

15

SPRING,VALVE Substituted by 3086892

3084906

$28.32

15

SPRING,VALVE Substituted by 3086892

3084906

$28.32

16

CAMSHAFT Substituted by 3086212 (Incl. 17-20)

3084898

$379.99

17

PIN, DOWEL Substituted by 3086838

3080103

$7.14

18

LEVER, RELEASE

3084902

Unavailable

19

SPRING,RETURN

3085076

Unavailable

20

PIN,DOWEL

3084899

$7.14

21

SPROCKET 2

3084914

Unavailable

22

BOLT&WASHER ASM.

3081657

$4.76

23

GUIDE,CHAIN

3084916

Unavailable

24

CHAIN, TIMING *

3084915

$101.17

25

LEVER

3084917

Unavailable

26

BOLT,PIVOT,LEVER

3084924

Unavailable

27

VALVE,INTAKE

3084904

Unavailable
