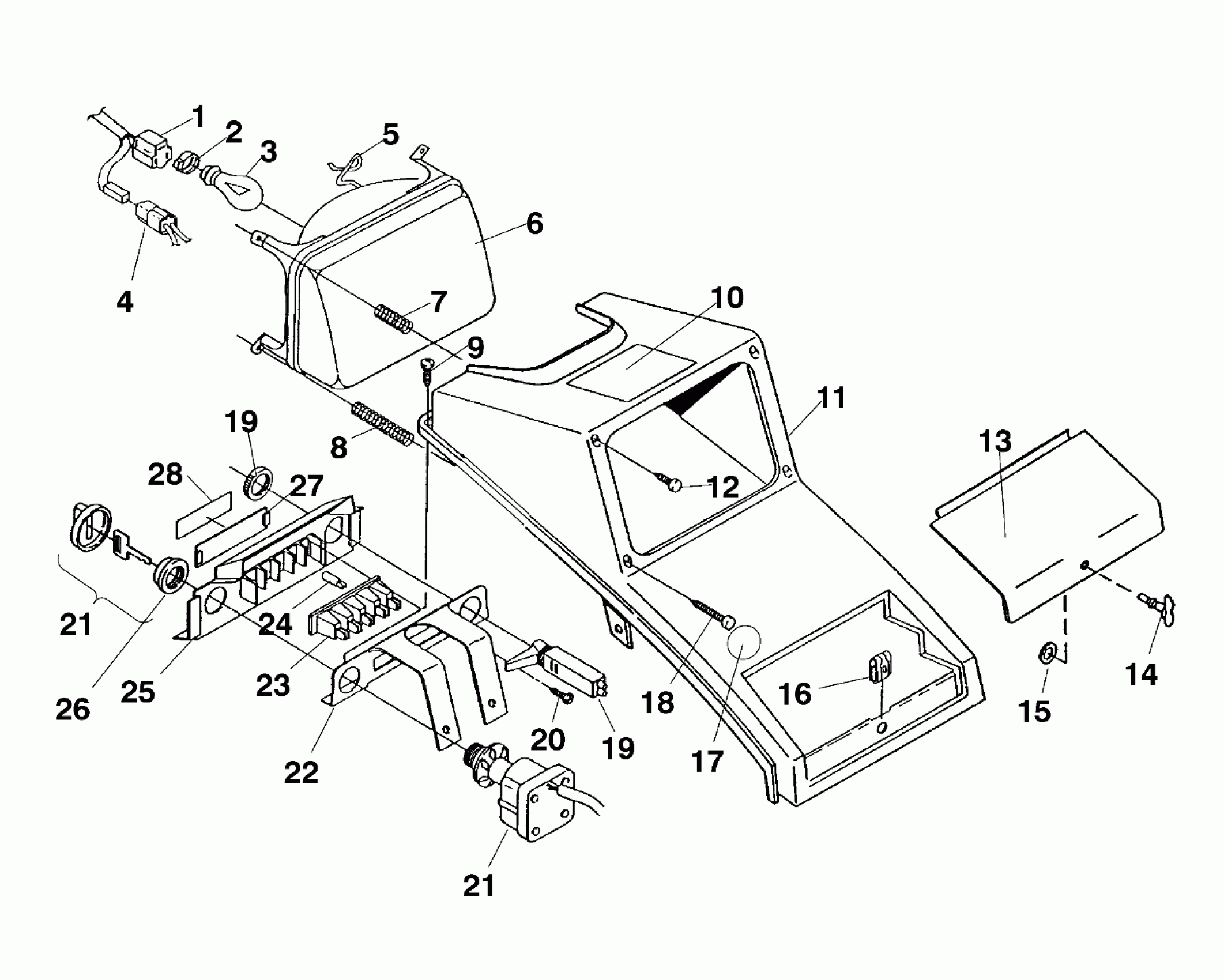

Polaris MAGNUM 4X4 - W958144 HEADLIGHT ASSEMBLY - W958144 (4926862686a014) Diagram

#

Description
Price

1

HARNESS, HEADLIGHT

2460424

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

HSG,DUAL,FEMALE

4040024

$3.99

5

RETAINER,H/L BULB

4032063

Unavailable

6

H/L ASM,W/BULBSEAL

4032065

Unavailable

7

SPRING-ADJ

4032002

Unavailable

8

SPRING,ADJ.

4032041

Unavailable

9

SCREW(10)

7512017

$4.79

10

DECAL,CERTIF.,ATV Substituted by 7075909

7073464

Unavailable

11

COVER,H/L,BLUE

5431861-157

Unavailable

12

SCREW, ADJ.(10)

4032003

Unavailable

13

DOOR,ACCESS,BON.BLUE

5431201-157

$70.39

14

FASTENER, 1/4 TURN(10)

7670064

$6.23

15

RING,SPLIT RETAINER(10)

7670065

$1.99

16

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

17

LABEL, 'U.S.A.' (After Serial #2501800)

7073024

Unavailable

17

LOGO,"40 YEARS"

7074695

Unavailable

18

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

19

KIT-CHOKE CONTROL

2200188

$24.27

19

CABLE, CHOKE

7080528

Unavailable

19

KIT-CHOKE CONTROL

2200188

$24.27

19

CABLE, CHOKE

7080528

Unavailable

20

SCREW, SEM(10)

7511862

$6.99

21

SWITCH, IGNITION (See Footnote) Note: Ignition key may be ordered by using the 4 digit number on the ignition switch.

4110140

$137.60

21

SWITCH, IGNITION (See Footnote) Note: Ignition key may be ordered by using the 4 digit number on the ignition switch.

4110140

$137.60

22

BRKT, IGN. PANEL

5220965-067

Unavailable

23

STRIP, SOCKET

4032037

$27.19

24

BULB

4030042

Unavailable

25

PANEL, IGNITION

5430995

Unavailable

26

NUT,IGN.SWITCH

5432090

Unavailable

27

LENS ASM,PILOT LIGHT (Incl. 28)

2652049

Unavailable

28

DECAL, PANEL [No Longer Available]

7072528

Unavailable
