GEARCASE/BRAKE and CHAIN COVER MOUNTING - W958144 (4926862686c006)

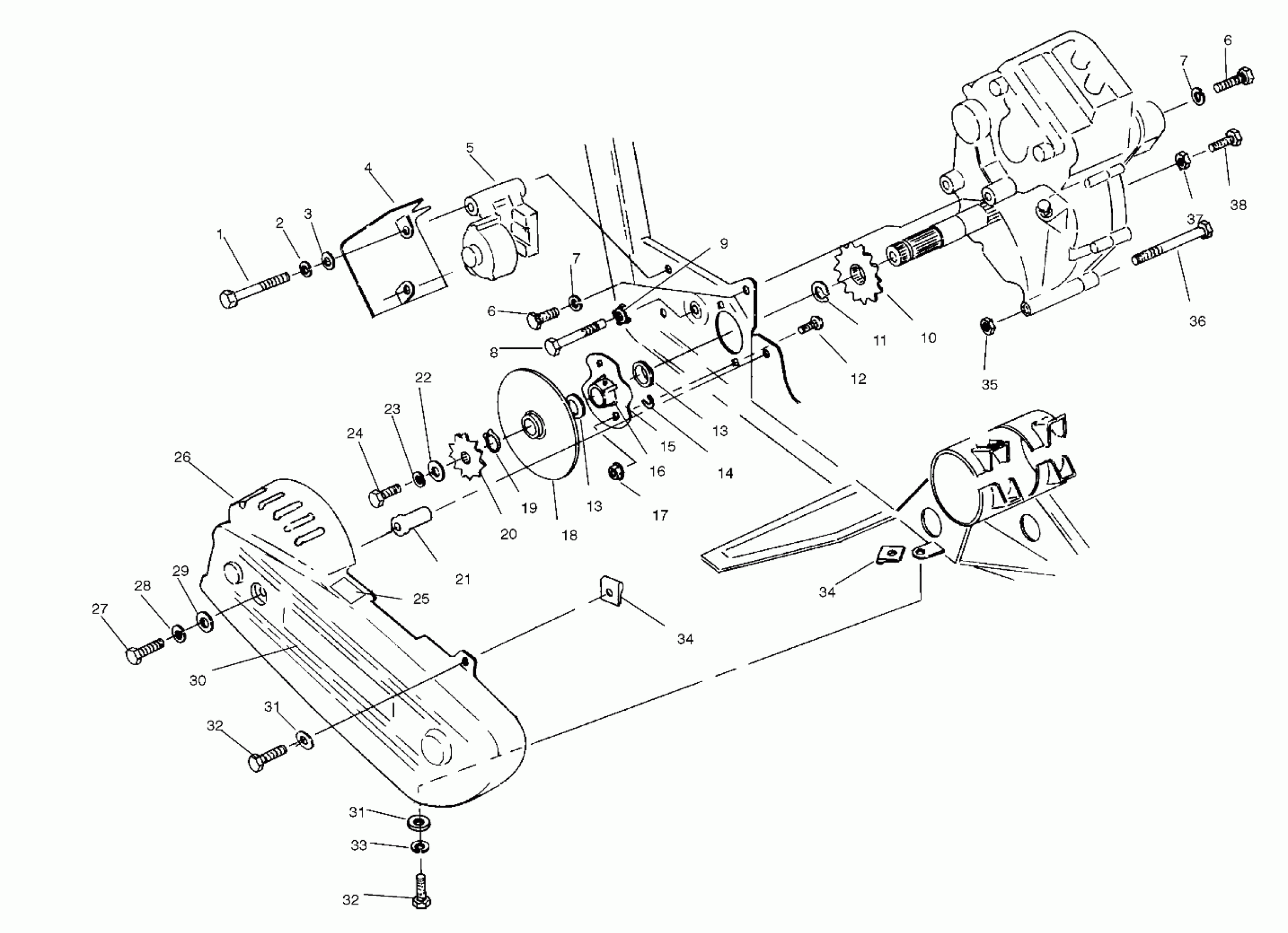

Polaris MAGNUM 4X4 - W958144 GEARCASE/BRAKE and CHAIN COVER MOUNTING - W958144 (4926862686c006) Diagram
#
1
BOLT(10)
7515345
$5.59
2
LOCK WASHER(10)
7552901
$1.49
3
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
4
SHIELD,R.CALIPER,BLK.
5240149-067
Unavailable
5
CALIPER ASM,R.BRAKE Substituted by 1910224
1910180
Unavailable
6
BOLT(10)
7515522
$3.99
6
BOLT(10)
7515522
$3.99
7
WASHER(10)
7552603
$1.49
7
WASHER(10)
7552603
$1.49
8
Bolt, Shoulder (See Pg. B13, Ref. 13)
-------
Unavailable
9
Plate, Bolt Lock (See Pg. B13, Ref. 14)
-------
Unavailable
10
Sprocket, 12T (See Pg. C12, Ref. 50)
-------
Unavailable
11
Ring, Retaining (See Pg. C12, Ref. 49)
-------
Unavailable
12
BOLT,CARRIAGE(10)
7515484
Unavailable
13
SEAL, BRAKE
3610026
$7.99
13
SEAL, BRAKE
3610026
$7.99
14
SPACER,(10)
5210764
Unavailable
14
SHIM,.010,GEARCASE
5211065
Unavailable
14
SHIM,(.030)
5211517
Unavailable
15
BRG.ASM,O/P SHAFT
1590237
$84.99
16
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
17
NUT,FLANGE LOCK(10)
7542449
$3.99
18
DISC ASM,BRAKE (See Pg. C12, Ref. 43)
1910177
Unavailable
19
Ring, Retaining (See Pg. C12, Ref. 44)
-------
Unavailable
20
Sprocket, 11T (See Pg. C12, Ref. 45)
-------
Unavailable
21
SPACER,CHAIN GUARD
5333254
Unavailable
22
Washer (See Pg. C12, Ref. 46)
-------
Unavailable
23
Washer, Spring Lock (See Pg. C12, Ref. 47)
-------
Unavailable
24
Bolt (See Pg. C12, Ref. 48)
-------
Unavailable
25
DECAL,LUBRICATION
7074214
Unavailable
26
GUARD,CHAIN,CTR.
5431717
Unavailable
27
BOLT(10)
7515384
Unavailable
28
WASHER(10)
7552606
$4.79
29
WASHER(10) Substituted by 7558402
7555770
Unavailable
30
DECAL,'DEMAND 4 DRIVE'
7073456
Unavailable
31
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
31
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
32
BOLT(10)
7512269
Unavailable
32
BOLT(10)
7512269
Unavailable
33
WASHER(10)
7552605
$5.27
34
NUT, SPEED(10)
7670060
$3.99
34
NUT, SPEED(10)
7670060
$3.99
35
NUT LOCK(10)
7542403
$3.99
36
BOLT(10)
7515472
$2.39
37
NUT(10)
7542404
$1.59
38
BOLT(10)
7515485
$3.03
