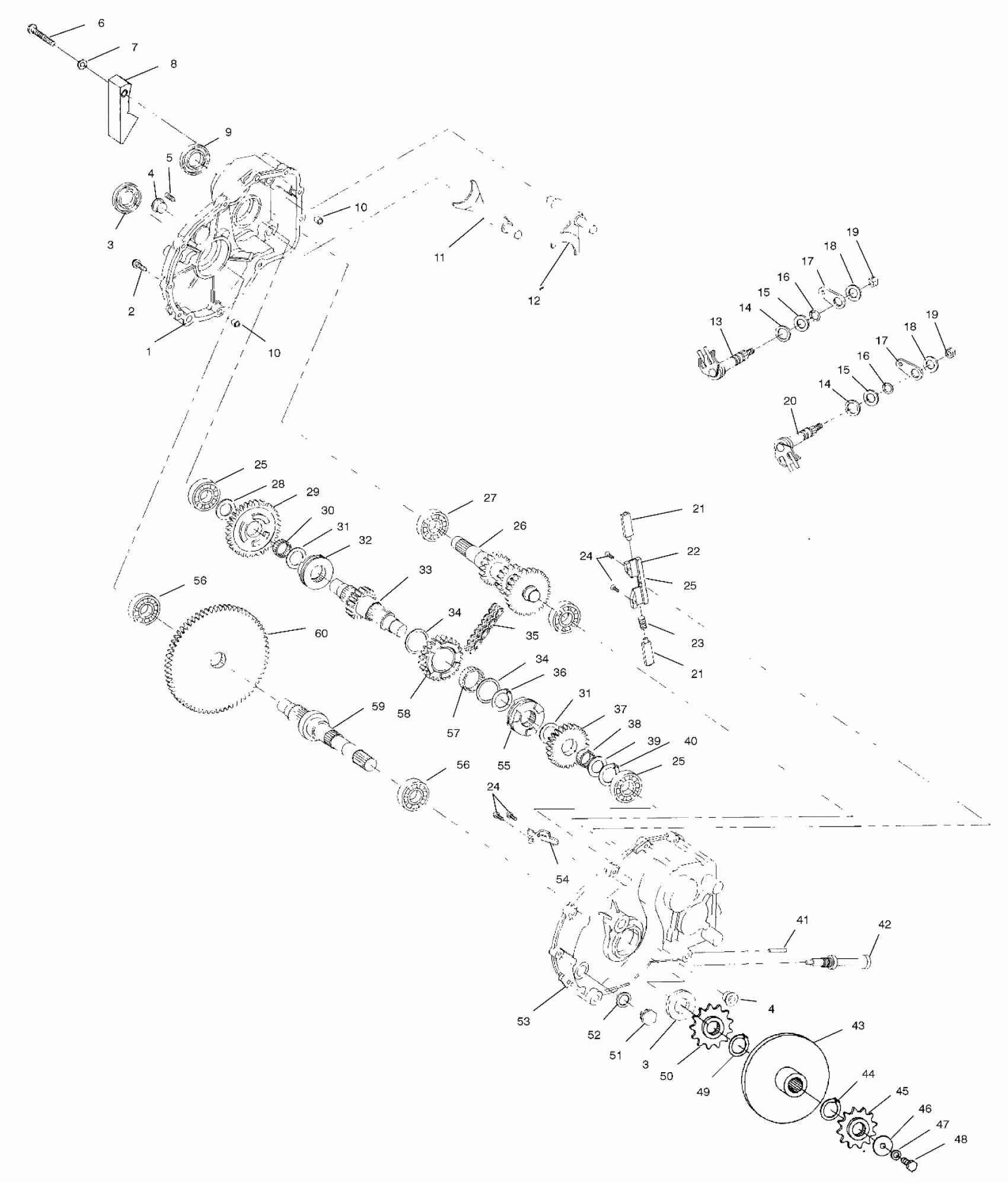

Polaris MAGNUM 4X4 - W958144 GEARCASE ASSEMBLY - W958144 (4926862686c011) Diagram

#

Description
Price

-

GEARCASE ASM,(NOR.)MAG. (See Footnote) (Norwegian) (Incl. 1-36,39-42,51-60)

1341155

Unavailable

-

GEARCASE ASM,(MAGNUM 4X4) Substituted by 1341184 (See Footnote) (U.S., Swedish) (Incl. 1-5,9-42,51-60)

1341149

Unavailable

1

CASE, LH

3233002

Unavailable

2

Screw

3233026

$6.46

3

SEAL Substituted by 3233248

3233096

Unavailable

3

SEAL Substituted by 3233248

3233096

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

BOLT,(10)

7512265

$3.99

7

WASHER(10)

7555827

$3.99

8

DAMPENER,CARBURETOR

5432082

Unavailable

9

SEAL Substituted by 3233248

3233097

$30.88

10

PIPE, KNOCK

3233021

Unavailable

10

PIPE, KNOCK

3233021

Unavailable

11

SHIFTRAIL,LOW

3233022

Unavailable

12

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

13

SHAFT,LOW SHIFT

3233151

$51.59

14

O-RING Substituted by 3233548

3233044

Unavailable

14

O-RING Substituted by 3233548

3233044

Unavailable

15

Washer

3233040

$9.59

15

Washer

3233040

$9.59

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

Bellcrank

3233153

$27.99

17

Bellcrank

3233153

$27.99

18

Washer

3233054

$6.46

18

Washer

3233054

$6.46

19

SHAFT,OUTPUT

3233005

Unavailable

19

SHAFT,OUTPUT

3233005

Unavailable

20

SHAFT,HIGH/REV.SHIFT

3233152

Unavailable

21

PIN

3233031

$32.11

21

PIN

3233031

$32.11

22

BRACKET

3233030

$21.43

23

Spring

3233032

$12.94

24

SCREW Substituted by 3233747

3233033

Unavailable

24

SCREW Substituted by 3233747

3233033

Unavailable

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

SHAFT, INPUT

3233122

Unavailable

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

28

WASHER (Norwegian)

3233007

Unavailable

29

GEAR, 33T

3233125

Unavailable

30

BEARING,NEEDLE

3233009

$39.99

31

Washer

3233010

Unavailable

31

Washer

3233010

Unavailable

32

DOG,ENGAGEMENT,LOW

3233126

Unavailable

33

SHAFT,REVERSE

3233175

$369.99

34

WASHER

3233012

Unavailable

34

WASHER

3233012

Unavailable

35

CHAIN,SILENT,34P

3233036

Unavailable

36

RING,RETAINING

3233029

$5.59

37

GEAR, 25T (U.S., Swedish Only)

3233129

Unavailable

38

BEARING,NEEDLE (U.S., Swedish Only)

3233017

$35.99

39

Washer

3233176

$9.59

40

RING,RETAINING

3233177

$6.39

41

Vent

3233037

Unavailable

42

DIPSTICK Substituted by 3233478

3233115

$24.27

43

DISC ASM,BRAKE

1910177

Unavailable

44

RING,SNAP(10)

7710434

$3.99

45

SPKT, 11T

3221058

$74.99

45

SPROCKET, 10T (Norwegian Only)

3221047

$111.99

46

WASHER FLAT(10)

7555701

$3.99

47

LOCK WASHER(10)

7552901

$1.49

48

BOLT(10)

7515321

$1.49

49

RING,RETAINING(10)

7710433

$4.79

50

SPKT, 12T

3221044

$43.99

51

PLUG,OIL DRAIN Substituted by 3233448

3233028

$23.81

52

Washer

3233035

Unavailable

53

CASE, RH

3233003

Unavailable

54

DEFLECTOR,OIL

3233043

$13.19

55

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

56

BEARING

3233020

$47.99

56

BEARING

3233020

$47.99

57

BEARING, NEEDLE

3233014

$43.99

58

SPROCKET, 24T

3233127

Unavailable

59

SHAFT,OUTPUT

3233150

Unavailable

60

GEAR, 65T

3233130

$214.75
