Description

Price

1

Cage, Roll

3250028

$218.56

2

ROLLS

3250010

$35.99

3

SPRING,GARTER

3250032

$17.59

4

SPACER Substituted by 1321814

3250031

$24.99

5

Cam

3250030

$198.48

6

BOLT(10)

7515321

$1.49

7

DISC, BRAKE Substituted by 5242935

5211326

$89.03

8

SEAL, FR. HUB

3610019

$35.99

9

Plate, Armature

5211148

$23.99

10

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

1520214

$354.99

10

CLUTCH ASM,F.HUB

1520209

Unavailable

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

HUB ASM,W/BRG.RACE (Incl. 8,12,14)

1520182

Unavailable

14

STUD(10)

7515523

$3.19

15

PLUG,PIPE

7052045

$12.79

16

TIRE,FR(25X8-12) (25x8x12)

5410568

Unavailable

17

VALVE-RIM

1525017

$5.59

18

RIM,FRT,6X12(SILVER) Substituted by 1520269-117

1520179-117

$90.87

19

WASHER(10)

7555903

Unavailable

20

NUT,LH THREAD

7543204

Unavailable

20

NUT,RH THREAD

7543201

Unavailable

21

RING,RETAINING(10)

7710436

$4.79

22

O RING

5410470

$2.41

23

CAP, HUB

5431368

$23.99

24

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

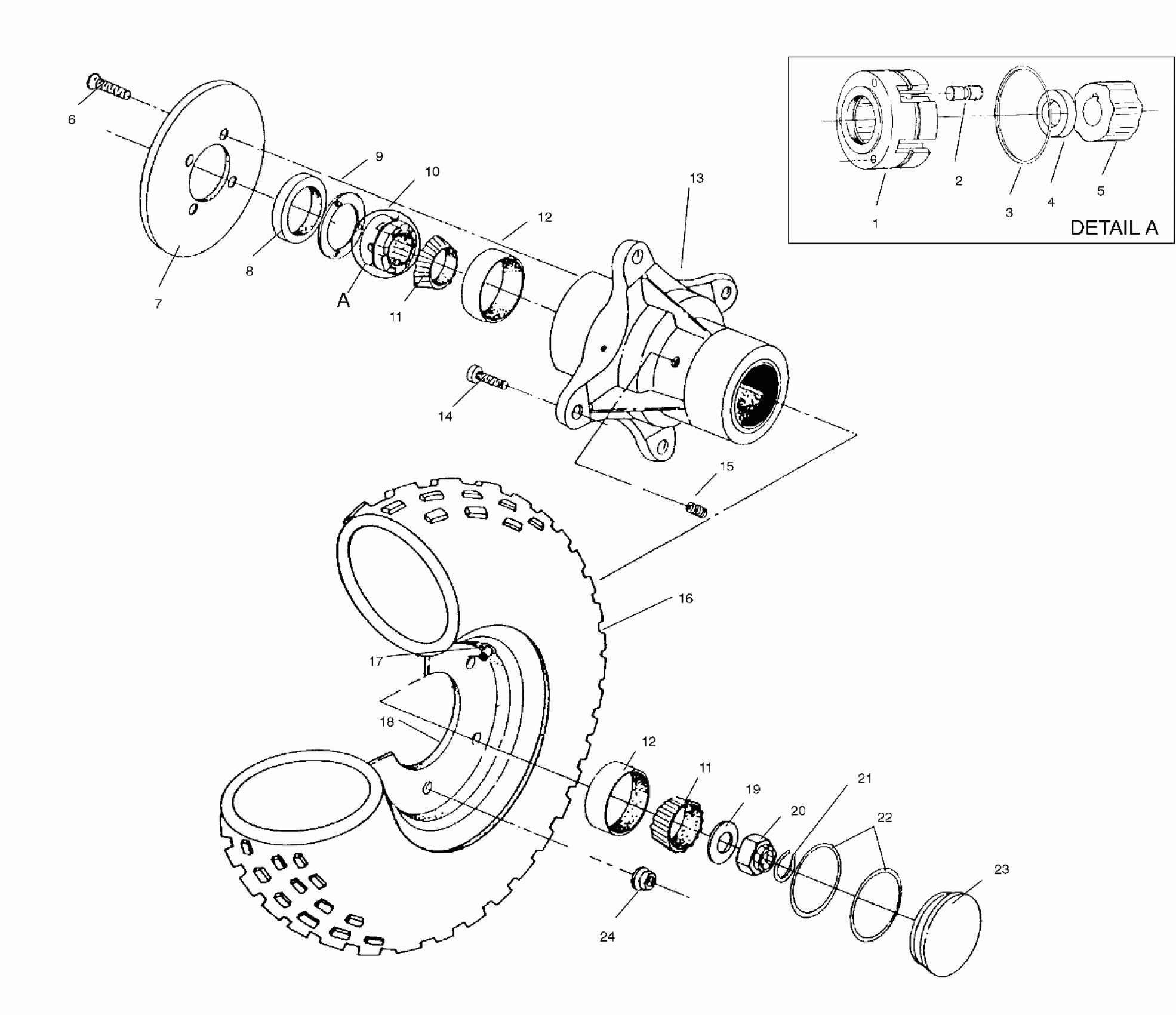

Polaris MAGNUM 4X4 - W958144 FRONT WHEEL ASSEMBLY - W958144 (4926862686b007) Diagram

Cage, Roll

ROLLS

SPRING,GARTER

SPACER Substituted by 1321814

Cam

BOLT(10)

DISC, BRAKE Substituted by 5242935

SEAL, FR. HUB

Plate, Armature

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

CLUTCH ASM,F.HUB

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

HUB ASM,W/BRG.RACE (Incl. 8,12,14)

STUD(10)

PLUG,PIPE

TIRE,FR(25X8-12) (25x8x12)

VALVE-RIM

RIM,FRT,6X12(SILVER) Substituted by 1520269-117

WASHER(10)

NUT,LH THREAD

NUT,RH THREAD

RING,RETAINING(10)

O RING

CAP, HUB

NUT-HXFL-3/8-24 B ZTB P-A
